171-015-203L011

Active

NorComp Inc.

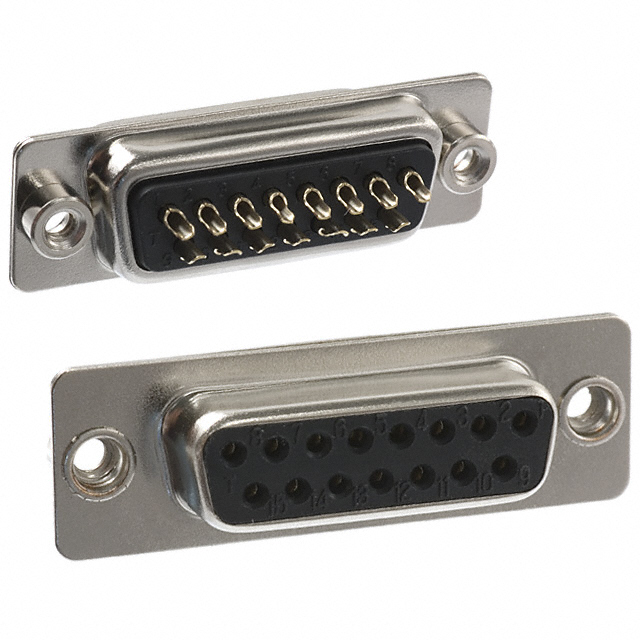

D SUB CONNECTOR, DB15, 15 CONTACTS, RECEPTACLE, SOLDER CUP, DA, 171 SERIES, STEEL BODY

Find alt

Alpha

171-015-203L011

Active

NorComp Inc.

D SUB CONNECTOR, DB15, 15 CONTACTS, RECEPTACLE, SOLDER CUP, DA, 171 SERIES, STEEL BODY

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

171-015 Series

The 171 series high performance Dip Solder D-sub Connectors with stamped contacts. It has brass male pins contact, phosphor bronze female pins contact with gold flash on entire contact-plating, glass-filled thermoplastic insulator and steel, nickel plated shell.

Technical Specifications

Parameters and characteristics for this part

Specification	171-015-203L011

Color	Black
Connector Layout	A, DA
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Stamped
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Finish	Nickel Plated
Flange Feature	Cable Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount
Number of Positions	15
Number of Rows	2
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-50 °C
Shell Material	Steel
Shell Size	2
Termination	Solder Cup
Wire Gauge (AWG) (Max)	28 AWG
Wire Gauge (AWG) (Min)	19.5 AWG

171-015 Series

Part	Shell Size	Connector Layout	Flange Feature	Shell Material, Finish	Number of Rows	Material Flammability Rating	Contact Finish	Current Rating	Contact Finish Thickness (string set options)	Contact Finish Thickness	Contact Type	Connector Style	Termination	Mounting Type	Number of Positions	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Contact Form	Color	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Dielectric Material	Finish	Shell Material	Features
NorComp Inc. 171-015-101L021	2	A DA	Cable Side (4-40)	Steel Yellow Chromate Plated Zinc	2	UL94 V-0	Gold	5 A	Flash	Flash	Signal	D-Sub	Solder Cup	Panel Mount	15	Male Pins Plug	-50 °C	100 °C	Copper Alloy	Stamped	Black	19.5 AWG	28 AWG	Glass Filled Polybutylene Terephthalate (PBT)
NorComp Inc. 171-015-202-031	2	A DA	Mating Side (4-40)		2	UL94 V-0	Gold	5 A	Flash	Flash	Signal	D-Sub	Solder Cup	Panel Mount	15	Female Sockets Receptacle	-50 °C	100 °C		Stamped	Black	19.5 AWG	28 AWG	Polybutylene Terephthalate (PBT)	Tin Plated	Steel
NorComp Inc. 171-015-202-001	2	A DA	Housing Shell (Unthreaded)		2	UL94 V-0	Gold	5 A	Flash	Flash	Signal	D-Sub	Solder Cup	Panel Mount	15	Female Sockets Receptacle	-50 °C	100 °C		Stamped	Black	19.5 AWG	28 AWG	Polybutylene Terephthalate (PBT)	Tin Plated	Steel
NorComp Inc. 171-015-212-911	2	A DA	Board Side (4-40) Female Screwlock (4-40) Mating Side		2	UL94 V-0	Gold	5 A	Flash	Flash	Signal	D-Sub	Solder	Panel Mount Through Hole	15	Female Sockets Receptacle	-50 °C	100 °C		Stamped	Black			Polybutylene Terephthalate (PBT)	Tin Plated	Steel	Board Lock
NorComp Inc. 171-015-201L011	2	A DA	Cable Side (4-40)	Steel Yellow Chromate Plated Zinc	2	UL94 V-0	Gold	5 A	Flash	Flash	Signal	D-Sub	Solder Cup	Panel Mount	15	Female Sockets Receptacle	-50 °C	100 °C		Stamped	Black	19.5 AWG	28 AWG	Glass Filled Polybutylene Terephthalate (PBT)
NorComp Inc. 171-015-213R911	2	A DA	Board Side (4-40) Female Screwlock (4-40) Mating Side		2	UL94 V-0	Gold	5 A	Flash	Flash	Signal	D-Sub	Solder	Panel Mount Through Hole	15	Female Sockets Receptacle	-50 °C	100 °C	Brass	Stamped	Black			Nylon 9T Polyamide (PA9T)	Nickel Plated	Steel	Board Lock
NorComp Inc. 171-015-113R011	2	A DA	Board Side (4-40)		2	UL94 V-0	Gold	5 A	Flash	Flash	Signal	D-Sub	Solder	Panel Mount Through Hole	15	Male Pins Plug	-50 °C	100 °C	Brass	Stamped	Black			Nylon 9T Polyamide (PA9T)	Nickel Plated	Steel	Grounding Indents
NorComp Inc. 171-015-113R911	2	A DA	Board Side (4-40) Female Screwlock (4-40) Mating Side		2	UL94 V-0	Gold	5 A	Flash	Flash	Signal	D-Sub	Solder	Panel Mount Through Hole	15	Male Pins Plug	-50 °C	100 °C	Brass	Stamped	Black			Nylon 9T Polyamide (PA9T)	Nickel Plated	Steel	Board Lock Grounding Indents
NorComp Inc. 171-015-212-001	2	A DA	Housing Shell (Unthreaded)		2	UL94 V-0	Gold	5 A	Flash	Flash	Signal	D-Sub	Solder	Panel Mount Through Hole	15	Female Sockets Receptacle	-50 °C	100 °C		Stamped	Black			Polybutylene Terephthalate (PBT)	Tin Plated	Steel
NorComp Inc. 171-015-203L011	2	A DA	Cable Side (4-40)		2	UL94 V-0	Gold	5 A	Flash	Flash	Signal	D-Sub	Solder Cup	Panel Mount	15	Female Sockets Receptacle	-50 °C	100 °C		Stamped	Black	19.5 AWG	28 AWG	Glass Filled Polybutylene Terephthalate (PBT)	Nickel Plated	Steel
