171-015-113R911
ActiveMH Connectors

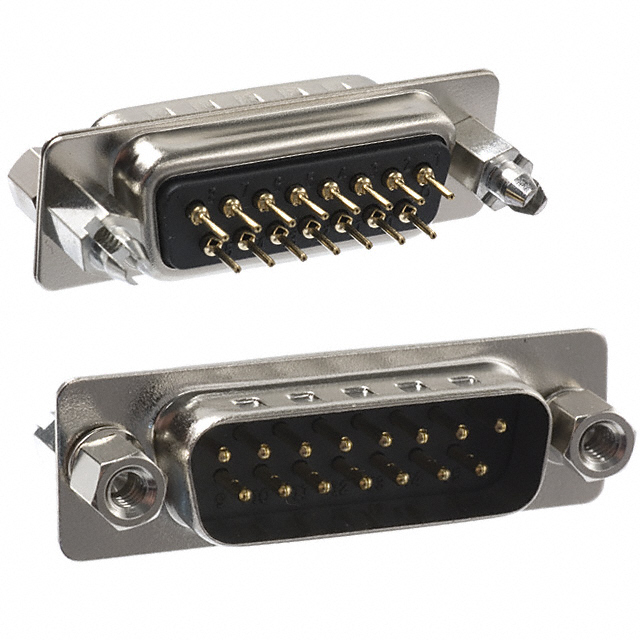

CONN D-SUB PLUG 15P PNL MNT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
171-015-113R911
ActiveMH Connectors
CONN D-SUB PLUG 15P PNL MNT SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 171-015-113R911 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Board Side (4-40), Mating Side, Female Screwlock (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.55 | |
| 10 | $ 4.25 | |||
| 25 | $ 3.83 | |||
| 40 | $ 3.63 | |||
| 80 | $ 3.37 | |||
| 230 | $ 3.01 | |||
| 440 | $ 2.82 | |||
| 945 | $ 2.61 | |||
| 2400 | $ 2.39 | |||
Description
General part information
171-015 Series
15 Position D-Sub Plug, Male Pins Connector
