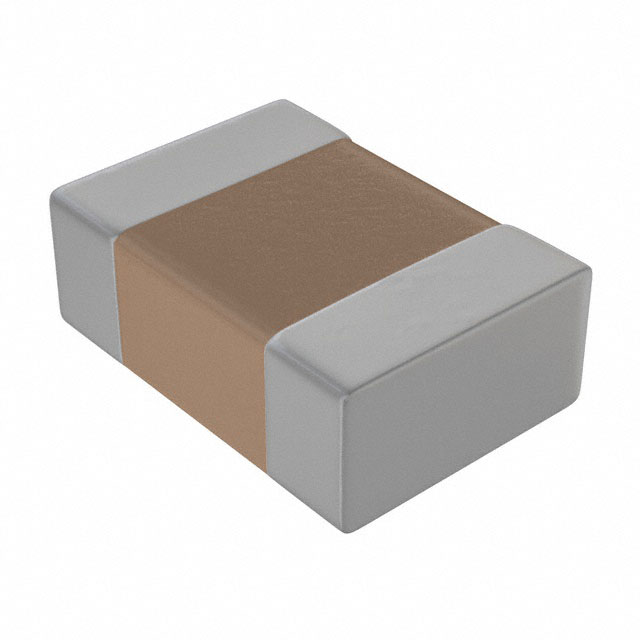

LDBCC2560GC5N0

Active

KEMET

CAP FILM 0.056UF 2% 50VDC 1812

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.056UF 2% 50VDC 1812

Technical Specifications

Parameters and characteristics for this part

Specification	LDBCC2560GC5N0

Applications	General Purpose
Capacitance	0.056 µF
Dielectric Material	Polyphenylene Sulfide (PPS), Metallized - Stacked
Height - Seated (Max) [Max]	0.067 in
Height - Seated (Max) [Max]	1.7 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1812 (4532 Metric)
Size / Dimension [x]	0.185 "
Size / Dimension [x]	4.7 mm
Size / Dimension [y]	0.13 in
Size / Dimension [y]	3.3 mm
Termination	Solder Pads
Tolerance	2 %
Voltage Rating - DC	50 VDC

Part	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Tolerance	Dielectric Material	Mounting Type	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET LDBCC2560GC5N0	Solder Pads	0.067 in	1.7 mm	0.056 µF	2 %	Polyphenylene Sulfide (PPS) Metallized - Stacked	Surface Mount	50 VDC	-55 °C	125 °C	0.185 "	0.13 in	4.7 mm	3.3 mm	1812 (4532 Metric)	General Purpose
KEMET LDBCC3100GC5N0	Solder Pads			100000 pF	2 %	Polyphenylene Sulfide (PPS) Metallized - Stacked	Surface Mount	50 VDC	-55 °C	125 °C	0.185 "	0.13 in	4.7 mm	3.3 mm	1812 (4532 Metric)	General Purpose	2 mm	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.056 µF Film Capacitor 50V Polyphenylene Sulfide (PPS), Metallized - Stacked 1812 (4532 Metric)
