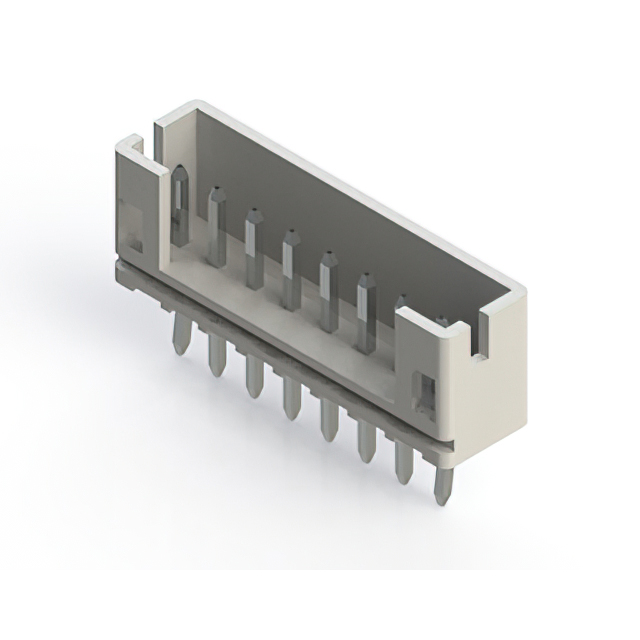

140-508-415-001

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 8 P.C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

140-508-415-001

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 8 P.C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.26
		10	$ 0.22
		25	$ 0.20
		50	$ 0.18
		100	$ 0.17
		300	$ 0.16
		500	$ 0.15
		1000	$ 0.12
		2500	$ 0.11

Description

General part information

140-508 Series

Connector Header Through Hole 8 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-508-415-001	140-508 Series

Color	-	Natural
Connector Type	Header	Header, Receptacle
Contact Finish - Post	Tin	Tin
Contact Length - Post	-	0.134 in
Contact Length - Post	-	3.4 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Male Pin	Male Pin, Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	-	Polarizing Key, Solder Retention
Insulation Color	Natural	Natural
Insulation Height	0.24 in	0.185 - 0.24 in
Insulation Height	6.1 mm	4.7 - 6.1 mm
Insulation Height	-	5.51 mm
Insulation Height	-	0.217 in
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle, Free Hanging (In-Line), Surface Mount
Note	-	Contacts Not Included
Number of Positions	8	8
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Kinked Pin, Solder	Kinked Pin, Solder, Solder
Voltage Rating	100 VAC	100 VAC

140-508 Series

2.0MM PITCH CONNECTOR WITH 8 P.C

Part	Current Rating (Amps)	Shrouding	Mounting Type	Insulation Material	Material Flammability Rating	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Contact Finish - Post	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Material	Fastening Type	Style	Insulation Color	Number of Positions	Insulation Height	Insulation Height	Contact Shape	Termination	Contact Type	Note	Features	Contact Termination	Pitch [x]	Pitch [x]	Color	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Post [x]	Contact Length - Post [x]
EDAC Inc. 140-508-415-001	2 A	Shrouded - 4 Wall	Through Hole	Polyamide (PA66), Nylon 6/6	UL94 V-0	100 VAC	0.079 in	2 mm	1	Tin	Header	-40 °C	105 ░C	All	Brass	Detent Lock	Board to Cable/Wire	Natural	8	0.24 in	6.1 mm	Square	Kinked Pin, Solder	Male Pin
EDAC Inc. 140-508-415-000	2 A	Shrouded - 4 Wall	Through Hole, Right Angle	Polyamide (PA66), Nylon 6/6	UL94 V-0	100 VAC	0.079 in	2 mm	1	Tin	Header	-40 °C	105 ░C	All	Brass	Detent Lock	Board to Cable/Wire	Natural	8	0.197 in	5 mm	Square	Kinked Pin, Solder	Male Pin
EDAC Inc. 140-508-210-011			Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6					1		Receptacle	-25 °C	85 °C			Detent Lock			8					Female Socket	Contacts Not Included	Polarizing Key	Crimp	0.079 in	2 mm	Natural
EDAC Inc. 140-508-417-011	2 A	Shrouded - 4 Wall	Surface Mount	Liquid Crystal Polymer (LCP)	UL94 V-0	100 VAC	0.079 in	2 mm	1	Tin	Header	-40 °C	105 ░C	All	Brass	Detent Lock	Board to Cable/Wire	Natural	8			Square	Solder	Male Pin		Solder Retention					5.51 mm	0.217 in
EDAC Inc. 140-508-415-100	2 A	Shrouded - 4 Wall	Through Hole, Right Angle	Polyamide (PA66), Nylon 6/6	UL94 V-0	100 VAC	0.079 in	2 mm	1	Tin	Header	-40 °C	105 ░C	All	Brass	Detent Lock	Board to Cable/Wire	Natural	8	0.185 in	4.7 mm	Square	Solder	Male Pin									0.134 in	3.4 mm
