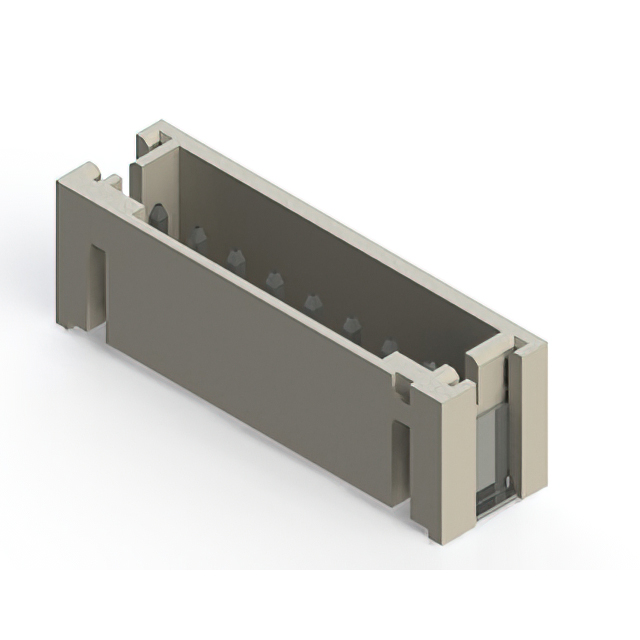

140-508-417-011

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 8 SUR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-508-417-011	140-508 Series

Color	-	Natural
Connector Type	Header	Header, Receptacle
Contact Finish - Post	Tin	Tin
Contact Length - Post	-	0.134 in
Contact Length - Post	-	3.4 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Male Pin	Male Pin, Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	Solder Retention	Polarizing Key, Solder Retention
Insulation Color	Natural	Natural
Insulation Height	-	0.185 - 0.24 in
Insulation Height	-	4.7 - 6.1 mm
Insulation Height [custom]	5.51 mm	5.51 mm
Insulation Height [custom]	0.217 in	0.217 in
Insulation Material	Liquid Crystal Polymer (LCP)	Polyamide (PA66), Nylon 6/6, Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Through Hole, Through Hole, Right Angle, Free Hanging (In-Line), Surface Mount
Note	-	Contacts Not Included
Number of Positions	8	8
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Kinked Pin, Solder, Solder
Voltage Rating	100 VAC	100 VAC

140-508 Series

2.0MM PITCH CONNECTOR WITH 8 P.C

Part	Current Rating (Amps)	Shrouding	Mounting Type	Insulation Material	Material Flammability Rating	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Contact Finish - Post	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Material	Fastening Type	Style	Insulation Color	Number of Positions	Insulation Height	Insulation Height	Contact Shape	Termination	Contact Type	Note	Features	Contact Termination	Pitch [x]	Pitch [x]	Color	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Post [x]	Contact Length - Post [x]
EDAC Inc. 140-508-415-001	2 A	Shrouded - 4 Wall	Through Hole	Polyamide (PA66), Nylon 6/6	UL94 V-0	100 VAC	0.079 in	2 mm	1	Tin	Header	-40 °C	105 ░C	All	Brass	Detent Lock	Board to Cable/Wire	Natural	8	0.24 in	6.1 mm	Square	Kinked Pin, Solder	Male Pin
EDAC Inc. 140-508-415-000	2 A	Shrouded - 4 Wall	Through Hole, Right Angle	Polyamide (PA66), Nylon 6/6	UL94 V-0	100 VAC	0.079 in	2 mm	1	Tin	Header	-40 °C	105 ░C	All	Brass	Detent Lock	Board to Cable/Wire	Natural	8	0.197 in	5 mm	Square	Kinked Pin, Solder	Male Pin
EDAC Inc. 140-508-210-011			Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6					1		Receptacle	-25 °C	85 °C			Detent Lock			8					Female Socket	Contacts Not Included	Polarizing Key	Crimp	0.079 in	2 mm	Natural
EDAC Inc. 140-508-417-011	2 A	Shrouded - 4 Wall	Surface Mount	Liquid Crystal Polymer (LCP)	UL94 V-0	100 VAC	0.079 in	2 mm	1	Tin	Header	-40 °C	105 ░C	All	Brass	Detent Lock	Board to Cable/Wire	Natural	8			Square	Solder	Male Pin		Solder Retention					5.51 mm	0.217 in
EDAC Inc. 140-508-415-100	2 A	Shrouded - 4 Wall	Through Hole, Right Angle	Polyamide (PA66), Nylon 6/6	UL94 V-0	100 VAC	0.079 in	2 mm	1	Tin	Header	-40 °C	105 ░C	All	Brass	Detent Lock	Board to Cable/Wire	Natural	8	0.185 in	4.7 mm	Square	Solder	Male Pin									0.134 in	3.4 mm
