5-829822-0

Obsolete

TE Connectivity AMP Connectors

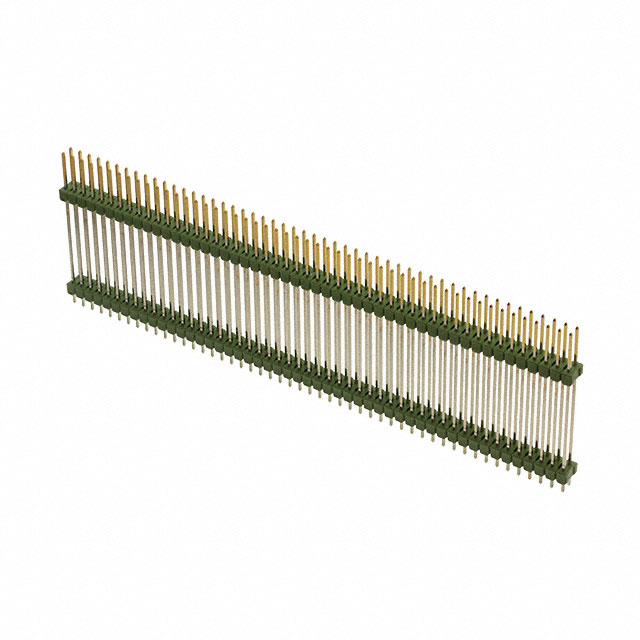

CONN HDR 100POS 0.1 STACK T/H

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN HDR 100POS 0.1 STACK T/H

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5-829822-0	829822 Series

Color	Green	Green
Contact Finish - Post (Mating)	Gold	Gold
Contact Finish Thickness - Post (Mating)	0.8 µm	0.8 µm
Contact Finish Thickness - Post (Mating)	31.5 µin	31.5 µin
Length - Overall Pin [x]	39.4 mm	39.4 mm
Length - Overall Pin [x]	1.551 in	1.551 in
Length - Post (Mating) [x]	0.358 in	0.358 in
Length - Post (Mating) [x]	9.1 mm	9.1 mm
Length - Stack Height [x]	27.3 mm	27.3 mm
Length - Stack Height [x]	1.075 in	1.075 in
Length - Tail [x]	0.118 in	0.118 in
Length - Tail [x]	3 mm	3 mm
Mounting Type	Through Hole	Through Hole
Number of Positions	100	100
Number of Positions	-	16
Number of Rows	2	2
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in
Termination	Solder	Solder

CONN HDR 100POS 0.1 STACK T/H

Part	Pitch [x]	Pitch [x]	Length - Tail [x]	Length - Tail [x]	Row Spacing [x]	Row Spacing	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Termination	Contact Finish - Post (Mating)	Mounting Type	Number of Rows	Color	Number of Positions	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Positions
TE Connectivity AMP Connectors 5-829822-0	2.54 mm	0.1 in	0.118 in	3 mm	0.1 in	2.54 mm	0.358 in	9.1 mm	Solder	Gold	Through Hole	2	Green	100	27.3 mm	1.075 in	39.4 mm	1.551 in	0.8 µm	31.5 µin
TE Connectivity AMP Connectors 829822-8	2.54 mm	0.1 in	0.118 in	3 mm	0.1 in	2.54 mm	0.358 in	9.1 mm	Solder	Gold	Through Hole	2	Green		27.3 mm	1.075 in	39.4 mm	1.551 in	0.8 µm	31.5 µin	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
