829822-8

Obsolete

TE Connectivity AMP Connectors

CONN HDR 16POS 0.1 STACK T/H

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN HDR 16POS 0.1 STACK T/H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

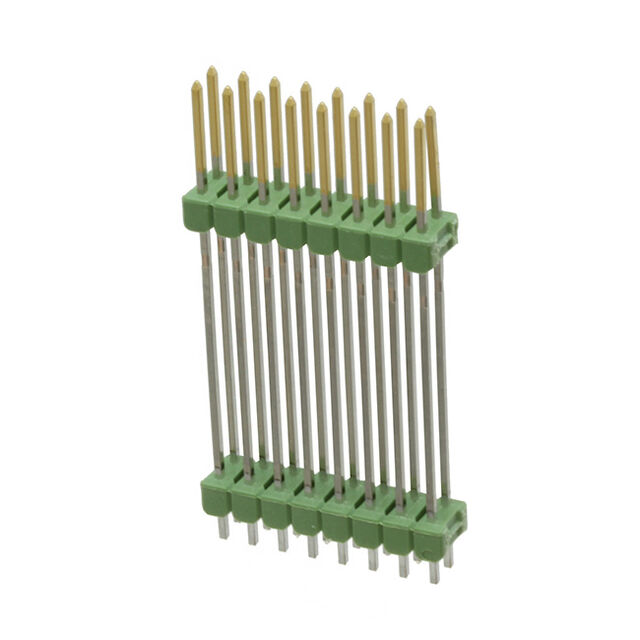

16 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	829822-8	829822 Series

Color	Green	Green
Contact Finish - Post (Mating)	Gold	Gold
Contact Finish Thickness - Post (Mating)	0.8 µm	0.8 µm
Contact Finish Thickness - Post (Mating)	31.5 µin	31.5 µin
Length - Overall Pin [x]	39.4 mm	39.4 mm
Length - Overall Pin [x]	1.551 in	1.551 in
Length - Post (Mating) [x]	0.358 in	0.358 in
Length - Post (Mating) [x]	9.1 mm	9.1 mm
Length - Stack Height [x]	27.3 mm	27.3 mm
Length - Stack Height [x]	1.075 in	1.075 in
Length - Tail [x]	0.118 in	0.118 in
Length - Tail [x]	3 mm	3 mm
Mounting Type	Through Hole	Through Hole
Number of Positions	16	16
Number of Positions	-	100
Number of Rows	2	2
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in
Termination	Solder	Solder

CONN HDR 100POS 0.1 STACK T/H

Part	Pitch [x]	Pitch [x]	Length - Tail [x]	Length - Tail [x]	Row Spacing [x]	Row Spacing	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Termination	Contact Finish - Post (Mating)	Mounting Type	Number of Rows	Color	Number of Positions	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Positions
TE Connectivity AMP Connectors 5-829822-0	2.54 mm	0.1 in	0.118 in	3 mm	0.1 in	2.54 mm	0.358 in	9.1 mm	Solder	Gold	Through Hole	2	Green	100	27.3 mm	1.075 in	39.4 mm	1.551 in	0.8 µm	31.5 µin
TE Connectivity AMP Connectors 829822-8	2.54 mm	0.1 in	0.118 in	3 mm	0.1 in	2.54 mm	0.358 in	9.1 mm	Solder	Gold	Through Hole	2	Green		27.3 mm	1.075 in	39.4 mm	1.551 in	0.8 µm	31.5 µin	16
