SP600-02

Active

Bergquist

THERM PAD 45.21X31.75MM GREEN

Search across all available documentation for this part.

Active

Bergquist

THERM PAD 45.21X31.75MM GREEN

Technical Specifications

Parameters and characteristics commom to parts in this series

THERM PAD 24MMX21.01MM GREEN

Part	Color	Thermal Resistivity	Outline [x]	Outline [y]	Shape	Usage	Thickness	Thickness	Shelf Life Start	Shelf Life
Bergquist SP600-114	Green	0.35 °C/W	24 mm	21.01 mm	Rectangular	TO-218, TO-220, TO-247	0.229 mm	0.009 in
Bergquist SP600-105	Green	0.35 °C/W	36.83 mm	21.29 mm	Rectangular	SIP	0.229 mm	0.009 in	Date of Manufacture	12 Months
Bergquist SP600-54	Green	0.35 °C/W	19.05 mm	12.7 mm	Rectangular	TO-220	0.229 mm	0.009 in	Date of Manufacture	12 Months
Bergquist SP600-05	Green	0.35 °C/W	41.91 mm	28.96 mm	Rhombus	TO-3	0.229 mm	0.009 in	Date of Manufacture	12 Months
Bergquist SP600-02	Green	0.35 °C/W	45.21 mm	31.75 mm	Rhombus	TO-3	0.229 mm	0.009 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

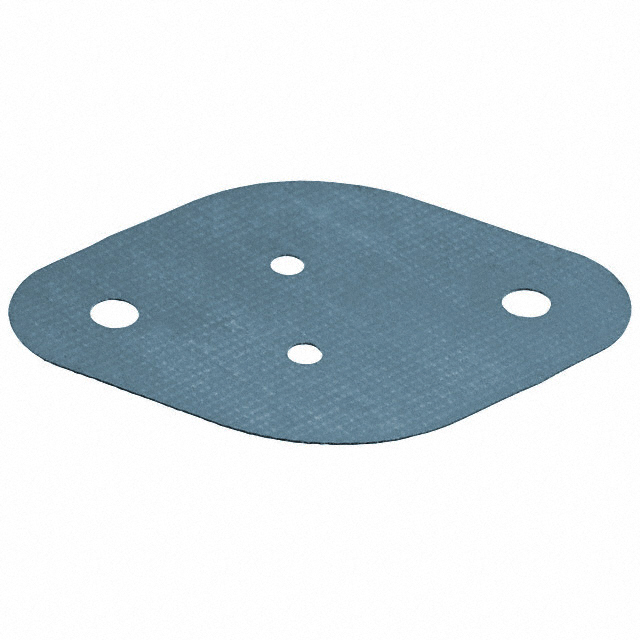

Thermal Pad Green 45.21mm x 31.75mm Rhombus
