Specification	ERF8-040-01-S-D-EM2-TR

Connector Type	Outer Shroud Contacts, Socket
Contact Finish	Gold
Contact Finish Thickness	30 µin
Mounting Type	Straddle Mount, Board Edge
Number of Positions	80
Number of Rows	2
Pitch	0.031 in

ERF8-040 Series

Part	Pitch	Mounting Type	Number of Rows	Contact Finish Thickness	Number of Positions	Features	Mated Stacking Height Options	Height Above Board	Contact Finish	Connector Type
Samtec Inc. ERF8-040-05.0-S-DV	0.031 in	Surface Mount	2	30 µin	80	Board Guide	10mm 13mm 14mm 20mm 7mm	0.21 in	Gold	Outer Shroud Contacts Socket

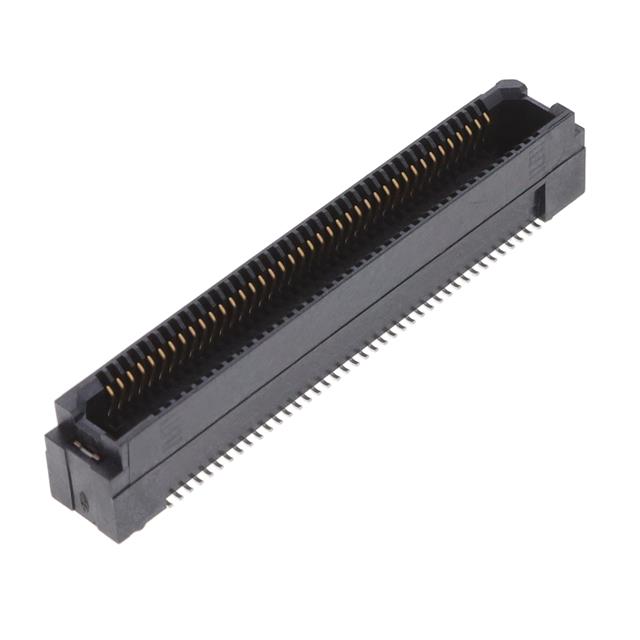

Samtec Inc. ERF8-040-07.0-S-DV-EGP-K-TR	0.031 in	Surface Mount	2	30 µin	80	Board Guide Pick and Place	12mm 15mm 16mm 22mm 9mm	0.285 in	Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-040-07.0-L-DV-TR	0.031 in	Surface Mount	2	10 Ąin	80	Board Guide	12mm 15mm 16mm 22mm 9mm	0.285 in	Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-040-01-S-D-RA-EGP-TR	0.031 in	Right Angle Surface Mount	2	30 µin	80	Board Guide Mounting Flange		0.246 in	Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-040-01-L-D-EM2-TR	0.031 in	Board Edge Straddle Mount	2	10 Ąin	80				Gold	Outer Shroud Contacts Socket

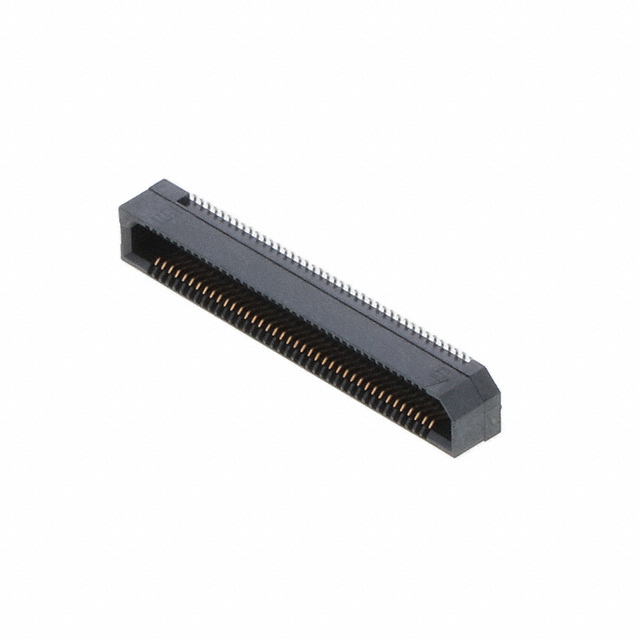

Samtec Inc. ERF8-040-05.0-L-DV-K-TR	0.031 in	Surface Mount	2	10 Ąin	80	Board Guide Pick and Place	10mm 13mm 14mm 20mm 7mm	0.21 in	Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-040-03-S-D-RA-L-TR	0.031 in	Right Angle Surface Mount	2	30 µin	80	Board Guide Latches Mounting Flange		0.246 in	Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-040-07.0-S-DV-EGP-TR	0.031 in	Surface Mount	2	30 µin	80	Board Guide	12mm 15mm 16mm 22mm 9mm	0.285 in	Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-040-07.0-L-DV-K-TR	0.031 in	Surface Mount	2	10 Ąin	80	Board Guide Pick and Place	12mm 15mm 16mm 22mm 9mm	0.285 in	Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-040-07.0-L-DV-EGP-K-TR	0.031 in	Surface Mount	2	10 Ąin	80	Board Guide Pick and Place	12mm 15mm 16mm 22mm 9mm	0.285 in	Gold	Outer Shroud Contacts Socket
