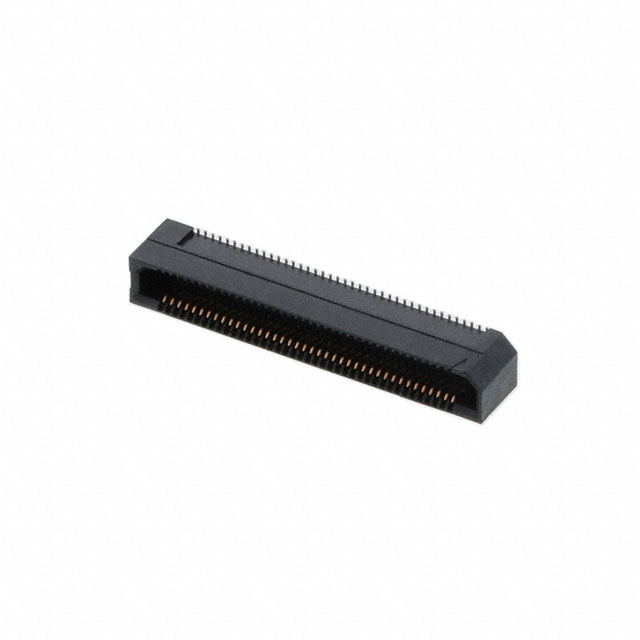

ERF8-040-07.0-L-DV-TR

Active

Samtec Inc.

CONN SOCKET 80POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF8 Series Other Related Documents 03 Datasheet +1

ERF8-040-07.0-L-DV-TR

Active

Samtec Inc.

CONN SOCKET 80POS SMD GOLD

Deep-Dive with AI

DocumentsERF8 Series Other Related Documents 03 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-040-07.0-L-DV-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board [z]	0.285 in
Height Above Board [z]	7.24 mm
Mated Stacking Heights	16 mm, 22 mm, 15 mm, 9 mm, 12 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-040 Series

Part	Mated Stacking Heights	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Connector Type	Number of Rows	Height Above Board [z]	Height Above Board [z]
Samtec Inc. ERF8-040-05.0-S-DV	7 mm 10 mm 13 mm 14 mm 20 mm	0.8 mm	0.031 in	0.21 in	5.33 mm	Surface Mount	80	0.76 Ám	30 Áin	Board Guide	Gold	Outer Shroud Contacts Socket	2
Samtec Inc. ERF8-040-07.0-L-DV-TR	9 mm 12 mm 15 mm 16 mm 22 mm	0.8 mm	0.031 in			Surface Mount	80	0.25 Ám	10 Áin	Board Guide	Gold	Outer Shroud Contacts Socket	2	0.285 in	7.24 mm
Samtec Inc. ERF8-040-01-L-D-EM2-TR		0.8 mm	0.031 in			Board Edge Straddle Mount	80	0.25 Ám	10 Áin		Gold	Outer Shroud Contacts Socket	2
Samtec Inc. ERF8-040-03-S-D-RA-L-TR		0.8 mm	0.031 in	0.246 in	6.25 mm	Surface Mount Right Angle	80	0.76 Ám	30 Áin	Board Guide Latches Mounting Flange	Gold	Outer Shroud Contacts Socket	2
Samtec Inc. ERF8-040-07.0-S-DV-EGP-TR	9 mm 12 mm 15 mm 16 mm 22 mm	0.8 mm	0.031 in			Surface Mount	80	0.76 Ám	30 Áin	Board Guide	Gold	Outer Shroud Contacts Socket	2	0.285 in	7.24 mm
Samtec Inc. ERF8-040-07.0-L-DV-K-TR	9 mm 12 mm 15 mm 16 mm 22 mm	0.8 mm	0.031 in			Surface Mount	80	0.25 Ám	10 Áin	Board Guide Pick and Place	Gold	Outer Shroud Contacts Socket	2	0.285 in	7.24 mm
Samtec Inc. ERF8-040-07.0-L-DV-EGP-K-TR	9 mm 12 mm 15 mm 16 mm 22 mm	0.8 mm	0.031 in			Surface Mount	80	0.25 Ám	10 Áin	Board Guide Pick and Place	Gold	Outer Shroud Contacts Socket	2	0.285 in	7.24 mm
Samtec Inc. ERF8-040-05.0-S-DV-TR	7 mm 10 mm 13 mm 14 mm 20 mm	0.8 mm	0.031 in	0.21 in	5.33 mm	Surface Mount	80	0.76 Ám	30 Áin	Board Guide	Gold	Outer Shroud Contacts Socket	2
Samtec Inc. ERF8-040-01-L-D-RA-TR		0.8 mm	0.031 in	0.246 in	6.25 mm	Surface Mount Right Angle	80	0.25 Ám	10 Áin	Board Guide Mounting Flange	Gold	Outer Shroud Contacts Socket	2
Samtec Inc. ERF8-040-03-L-D-RA-L-TR		0.8 mm	0.031 in	0.246 in	6.25 mm	Surface Mount Right Angle	80	0.25 Ám	10 Áin	Board Guide Latches Mounting Flange	Gold	Outer Shroud Contacts Socket	2
