ERF8-040-05.0-S-DV

Obsolete

Samtec Inc.

CONN SOCKET 80POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

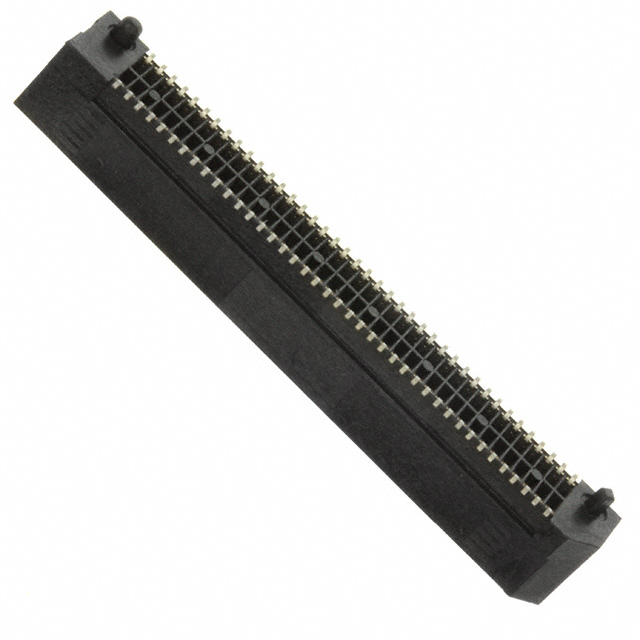

ERF8-040-05.0-S-DV

Obsolete

Samtec Inc.

CONN SOCKET 80POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-040-05.0-S-DV

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide
Height Above Board	0.21 in
Height Above Board	5.33 mm
Mated Stacking Heights	14 mm, 10 mm, 13 mm, 20 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-040 Series

Part	Mated Stacking Heights	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Connector Type	Number of Rows	Height Above Board [z]	Height Above Board [z]
Samtec Inc. ERF8-040-05.0-S-DV	7 mm 10 mm 13 mm 14 mm 20 mm	0.8 mm	0.031 in	0.21 in	5.33 mm	Surface Mount	80	0.76 Ám	30 Áin	Board Guide	Gold	Outer Shroud Contacts Socket	2
Samtec Inc. ERF8-040-07.0-L-DV-TR	9 mm 12 mm 15 mm 16 mm 22 mm	0.8 mm	0.031 in			Surface Mount	80	0.25 Ám	10 Áin	Board Guide	Gold	Outer Shroud Contacts Socket	2	0.285 in	7.24 mm
Samtec Inc. ERF8-040-01-L-D-EM2-TR		0.8 mm	0.031 in			Board Edge Straddle Mount	80	0.25 Ám	10 Áin		Gold	Outer Shroud Contacts Socket	2
Samtec Inc. ERF8-040-03-S-D-RA-L-TR		0.8 mm	0.031 in	0.246 in	6.25 mm	Surface Mount Right Angle	80	0.76 Ám	30 Áin	Board Guide Latches Mounting Flange	Gold	Outer Shroud Contacts Socket	2
Samtec Inc. ERF8-040-07.0-S-DV-EGP-TR	9 mm 12 mm 15 mm 16 mm 22 mm	0.8 mm	0.031 in			Surface Mount	80	0.76 Ám	30 Áin	Board Guide	Gold	Outer Shroud Contacts Socket	2	0.285 in	7.24 mm
Samtec Inc. ERF8-040-07.0-L-DV-K-TR	9 mm 12 mm 15 mm 16 mm 22 mm	0.8 mm	0.031 in			Surface Mount	80	0.25 Ám	10 Áin	Board Guide Pick and Place	Gold	Outer Shroud Contacts Socket	2	0.285 in	7.24 mm
Samtec Inc. ERF8-040-07.0-L-DV-EGP-K-TR	9 mm 12 mm 15 mm 16 mm 22 mm	0.8 mm	0.031 in			Surface Mount	80	0.25 Ám	10 Áin	Board Guide Pick and Place	Gold	Outer Shroud Contacts Socket	2	0.285 in	7.24 mm
Samtec Inc. ERF8-040-05.0-S-DV-TR	7 mm 10 mm 13 mm 14 mm 20 mm	0.8 mm	0.031 in	0.21 in	5.33 mm	Surface Mount	80	0.76 Ám	30 Áin	Board Guide	Gold	Outer Shroud Contacts Socket	2
Samtec Inc. ERF8-040-01-L-D-RA-TR		0.8 mm	0.031 in	0.246 in	6.25 mm	Surface Mount Right Angle	80	0.25 Ám	10 Áin	Board Guide Mounting Flange	Gold	Outer Shroud Contacts Socket	2
Samtec Inc. ERF8-040-03-L-D-RA-L-TR		0.8 mm	0.031 in	0.246 in	6.25 mm	Surface Mount Right Angle	80	0.25 Ám	10 Áin	Board Guide Latches Mounting Flange	Gold	Outer Shroud Contacts Socket	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ERF8-040 Series

80 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
