625-009-362-512

Active

EDAC Inc.

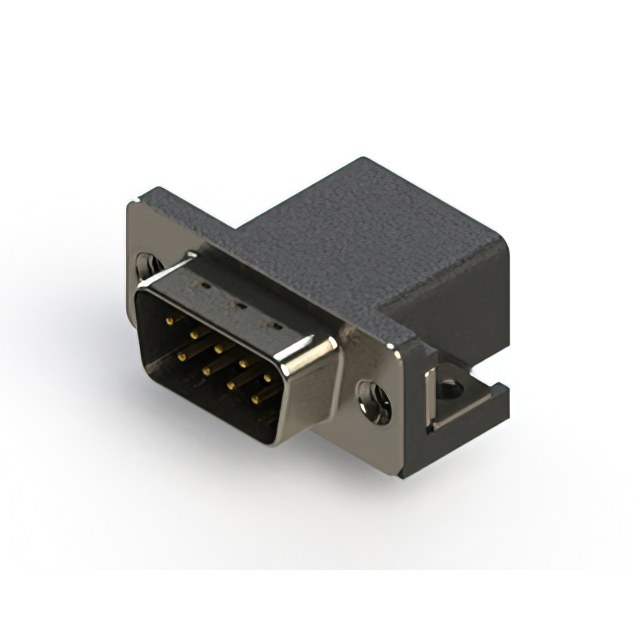

9P RIGHT-ANGLE 2 PUSH-PULL D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

625-009-362-512

Active

EDAC Inc.

9P RIGHT-ANGLE 2 PUSH-PULL D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	625-009-362-512

Backset Spacing	0.584 in
Backset Spacing	14.84 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

625-009 Series

Part	Termination	Mounting Type	Connector Style	Current Rating (Amps)	Contact Finish Thickness	Color	Features	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Number of Positions	Number of Rows	Backset Spacing	Backset Spacing	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Shell Material, Finish	Flange Feature	Contact Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 625-009-262-545	Solder	Board Edge Right Angle Through Hole	D-Sub	3 A	Flash	Black	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	DE E	1	Polyester Thermoplastic	9	2	0.584 in	14.84 mm	Gold	-55 °C	125 °C	UL94 V-0	Nickel Plated Steel	Housing/Shell (M3)	Signal	Copper Alloy
EDAC Inc. 625-009-262-032	Solder	Board Edge Right Angle Through Hole	D-Sub	3 A	Flash	Black	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	DE E	1	Polyester Thermoplastic	9	2	0.584 in	14.84 mm	Gold	-55 °C	85 °C	UL94 V-0	Nickel Plated Steel	Housing/Shell (4-40)	Signal	Copper Alloy
EDAC Inc. 625-009-262-031	Solder	Board Edge Right Angle Through Hole	D-Sub	3 A	Flash	Black	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	DE E	1	Polyester Thermoplastic	9	2	0.584 in	14.84 mm	Gold	-55 °C	85 °C	UL94 V-0	Nickel Plated Steel	Housing/Shell (Unthreaded)	Signal	Copper Alloy
EDAC Inc. 625-009-262-542	Solder	Board Edge Right Angle Through Hole	D-Sub	3 A	Flash	Black	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	DE E	1	Polyester Thermoplastic	9	2	0.584 in	14.84 mm	Gold	-55 °C	125 °C	UL94 V-0	Nickel Plated Steel	Housing/Shell (4-40)	Signal	Copper Alloy
EDAC Inc. 625-009-262-530	Solder	Board Edge Right Angle Through Hole	D-Sub	3 A	Flash	Black	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	DE E	1	Polyester Thermoplastic	9	2	0.584 in	14.84 mm	Gold	-55 °C	125 °C	UL94 V-0	Nickel Plated Steel	4-40	Signal	Copper Alloy
EDAC Inc. 625-009-662-513	Solder	Board Edge Right Angle Through Hole	D-Sub	3 A		Black	Grounding Indents Mounting Brackets Shielded	Male Pins Plug	DE E	1	Polyester Thermoplastic	9	2	0.584 in	14.84 mm	Gold	-55 °C	125 °C	UL94 V-0	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Signal	Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 625-009-662-035	Solder	Board Edge Right Angle Through Hole	D-Sub	3 A		Black	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	DE E	1	Polyester Thermoplastic	9	2	0.584 in	14.84 mm	Gold	-55 °C	85 °C	UL94 V-0	Nickel Plated Steel	Housing/Shell (M3)	Signal	Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 625-009-262-033	Solder	Board Edge Right Angle Through Hole	D-Sub	3 A	Flash	Black	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	DE E	1	Polyester Thermoplastic	9	2	0.584 in	14.84 mm	Gold	-55 °C	85 °C	UL94 V-0	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Signal	Copper Alloy
EDAC Inc. 625-009-662-540	Solder	Board Edge Right Angle Through Hole	D-Sub	3 A		Black	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	DE E	1	Polyester Thermoplastic	9	2	0.584 in	14.84 mm	Gold	-55 °C	125 °C	UL94 V-0	Nickel Plated Steel	4-40	Signal	Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 625-009-362-512	Solder	Board Edge Right Angle Through Hole	D-Sub	3 A		Black	Grounding Indents Mounting Brackets Shielded	Male Pins Plug	DE E	1	Polyester Thermoplastic	9	2	0.584 in	14.84 mm	Gold	-55 °C	125 °C	UL94 V-0	Nickel Plated Steel	Housing/Shell (4-40)	Signal	Copper Alloy	0.38 µm	15 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 4.63
LCSC	Piece	1	$ 9.41
		200	$ 3.75
		500	$ 3.63
		1000	$ 3.57
Newark	Each	50	$ 4.41
		100	$ 4.20
		250	$ 4.10
		500	$ 3.95

Description

General part information

625-009 Series

9 Position D-Sub Plug, Male Pins Connector
