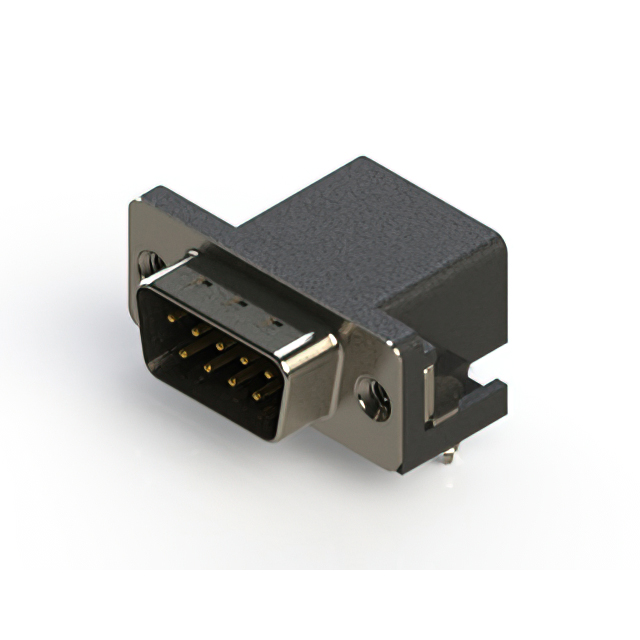

625-009-262-542
ActiveEDAC Inc.
RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
625-009-262-542
ActiveEDAC Inc.
RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 625-009-262-542 |
|---|---|
| Backset Spacing | 0.584 in |
| Backset Spacing | 14.84 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Board Lock, Mounting Brackets, Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
625-009 Series
| Part | Termination | Mounting Type | Connector Style | Current Rating (Amps) | Contact Finish Thickness | Color | Features | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Dielectric Material | Number of Positions | Number of Rows | Backset Spacing | Backset Spacing | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Shell Material, Finish | Flange Feature | Contact Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | Board Edge Right Angle Through Hole | D-Sub | 3 A | Flash | Black | Board Lock Grounding Indents Mounting Brackets Shielded | Male Pins Plug | DE E | 1 | Polyester Thermoplastic | 9 | 2 | 0.584 in | 14.84 mm | Gold | -55 °C | 125 °C | UL94 V-0 | Nickel Plated Steel | Housing/Shell (M3) | Signal | Copper Alloy | ||
EDAC Inc. | Solder | Board Edge Right Angle Through Hole | D-Sub | 3 A | Flash | Black | Board Lock Grounding Indents Mounting Brackets Shielded | Male Pins Plug | DE E | 1 | Polyester Thermoplastic | 9 | 2 | 0.584 in | 14.84 mm | Gold | -55 °C | 85 °C | UL94 V-0 | Nickel Plated Steel | Housing/Shell (4-40) | Signal | Copper Alloy | ||
EDAC Inc. | Solder | Board Edge Right Angle Through Hole | D-Sub | 3 A | Flash | Black | Board Lock Grounding Indents Mounting Brackets Shielded | Male Pins Plug | DE E | 1 | Polyester Thermoplastic | 9 | 2 | 0.584 in | 14.84 mm | Gold | -55 °C | 85 °C | UL94 V-0 | Nickel Plated Steel | Housing/Shell (Unthreaded) | Signal | Copper Alloy | ||
EDAC Inc. | Solder | Board Edge Right Angle Through Hole | D-Sub | 3 A | Flash | Black | Board Lock Grounding Indents Mounting Brackets Shielded | Male Pins Plug | DE E | 1 | Polyester Thermoplastic | 9 | 2 | 0.584 in | 14.84 mm | Gold | -55 °C | 125 °C | UL94 V-0 | Nickel Plated Steel | Housing/Shell (4-40) | Signal | Copper Alloy | ||
EDAC Inc. | Solder | Board Edge Right Angle Through Hole | D-Sub | 3 A | Flash | Black | Board Lock Grounding Indents Mounting Brackets Shielded | Male Pins Plug | DE E | 1 | Polyester Thermoplastic | 9 | 2 | 0.584 in | 14.84 mm | Gold | -55 °C | 125 °C | UL94 V-0 | Nickel Plated Steel | 4-40 | Signal | Copper Alloy | ||
EDAC Inc. | Solder | Board Edge Right Angle Through Hole | D-Sub | 3 A | Black | Grounding Indents Mounting Brackets Shielded | Male Pins Plug | DE E | 1 | Polyester Thermoplastic | 9 | 2 | 0.584 in | 14.84 mm | Gold | -55 °C | 125 °C | UL94 V-0 | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | Signal | Copper Alloy | 0.76 Ám | 30 Áin | |
EDAC Inc. | Solder | Board Edge Right Angle Through Hole | D-Sub | 3 A | Black | Board Lock Grounding Indents Mounting Brackets Shielded | Male Pins Plug | DE E | 1 | Polyester Thermoplastic | 9 | 2 | 0.584 in | 14.84 mm | Gold | -55 °C | 85 °C | UL94 V-0 | Nickel Plated Steel | Housing/Shell (M3) | Signal | Copper Alloy | 0.76 Ám | 30 Áin | |
EDAC Inc. | Solder | Board Edge Right Angle Through Hole | D-Sub | 3 A | Flash | Black | Board Lock Grounding Indents Mounting Brackets Shielded | Male Pins Plug | DE E | 1 | Polyester Thermoplastic | 9 | 2 | 0.584 in | 14.84 mm | Gold | -55 °C | 85 °C | UL94 V-0 | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | Signal | Copper Alloy | ||
EDAC Inc. | Solder | Board Edge Right Angle Through Hole | D-Sub | 3 A | Black | Board Lock Grounding Indents Mounting Brackets Shielded | Male Pins Plug | DE E | 1 | Polyester Thermoplastic | 9 | 2 | 0.584 in | 14.84 mm | Gold | -55 °C | 125 °C | UL94 V-0 | Nickel Plated Steel | 4-40 | Signal | Copper Alloy | 0.76 Ám | 30 Áin | |
EDAC Inc. | Solder | Board Edge Right Angle Through Hole | D-Sub | 3 A | Black | Grounding Indents Mounting Brackets Shielded | Male Pins Plug | DE E | 1 | Polyester Thermoplastic | 9 | 2 | 0.584 in | 14.84 mm | Gold | -55 °C | 125 °C | UL94 V-0 | Nickel Plated Steel | Housing/Shell (4-40) | Signal | Copper Alloy | 0.38 µm | 15 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
625-009 Series
9 Position D-Sub Plug, Male Pins Connector
