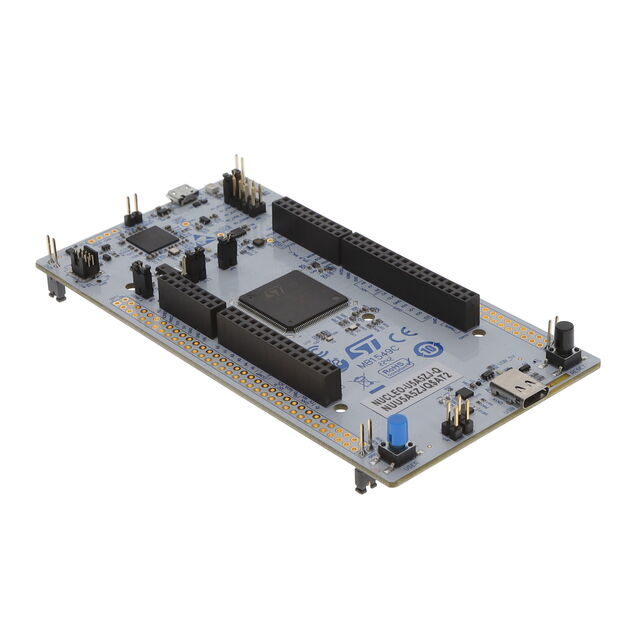

NUCLEO-U5A5ZJ-Q
ActiveSTM32 NUCLEO-144 DEVELOPMENT BOARD WITH STM32U5A5ZJ MCU, SMPS, SUPPORTS ARDUINO, ST ZIO AND MORPHO CONNECTIVITY
Deep-Dive with AI
Search across all available documentation for this part.
NUCLEO-U5A5ZJ-Q
ActiveSTM32 NUCLEO-144 DEVELOPMENT BOARD WITH STM32U5A5ZJ MCU, SMPS, SUPPORTS ARDUINO, ST ZIO AND MORPHO CONNECTIVITY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NUCLEO-U5A5ZJ-Q |
|---|---|
| Board Type | Evaluation Platform |
| Contents | Board(s) |
| Core Processor | ARM® Cortex®-M33 |
| Interconnect System | ST Zio, Arduino R3 Shield, ST Morpho |
| Mounting Type | Fixed |
| Platform | Nucleo-144 |
| Suggested Programming Environment | STM32Cube, Keil MDK, IAR EW |
| Type | MCU 32-Bit |
| Utilized IC / Part | STM32U5A5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NUCLEO-U5A5ZJ-Q Series
The STM32U5Axxx devices belong to an ultra-low-power microcontrollers family (STM32U5 Series) based on the high-performance Arm®Cortex®-M33 32-bit RISC core. They operate at a frequency of up to 160 MHz.
The Cortex®-M33 core features a single-precision FPU (floating-point unit), that supports all the Arm®single-precision data-processing instructions and all the data types.
The Cortex®-M33 core also implements a full set of DSP (digital signal processing) instructions and a MPU (memory protection unit) that enhances the application security.
