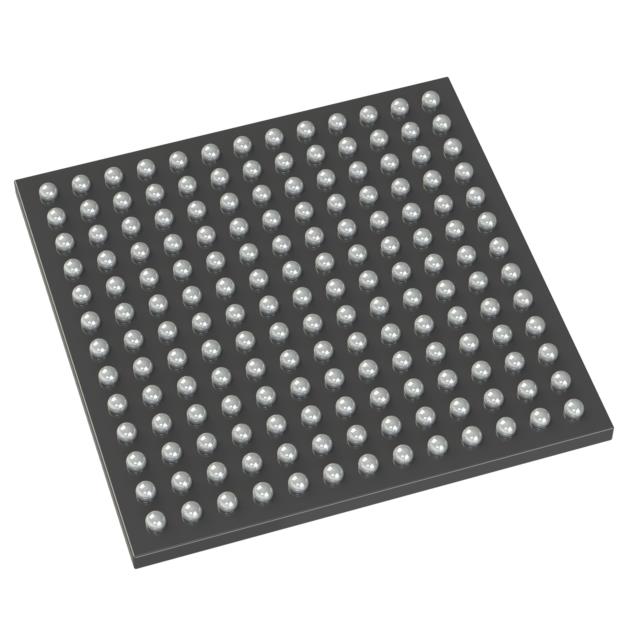

STM32U5A5AJH6TR - 169 TFBGA

STM32U5A5AJH6TR

Active

STMicroelectronics

ULTRA-LOW-POWER WITH FPU ARM CORTEX-M33 MCU WITH TRUSTZONE, 160 MHZ WITH 4 MBYTES OF FLASH MEMORY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAN3156 UM2875 +108

STM32U5A5AJH6TR - 169 TFBGA

STM32U5A5AJH6TR

Active

STMicroelectronics

ULTRA-LOW-POWER WITH FPU ARM CORTEX-M33 MCU WITH TRUSTZONE, 160 MHZ WITH 4 MBYTES OF FLASH MEMORY

Deep-Dive with AI

DocumentsAN3156 UM2875 +108

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STM32U5A5AJH6TR

Connectivity	IrDA, SPI, CANbus, EBI/EMI, LINbus, UART/USART/USB, FIFO, I2C, MMC/SD
Core Processor	ARM® Cortex®-M33
Core Size	32-Bit
Data Converters	A/D 24x12/14b SAR, D/A 2x12b
Mounting Type	Surface Mount
Number of I/O	136
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External, Internal
Package / Case	169-TFBGA
Program Memory Size	4 MB
Program Memory Type	FLASH
RAM Size	2.5 M
Speed	160 MHz
Supplier Device Package	169-TFBGA (7x7)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.71 V

NUCLEO-U5A5ZJ-Q Series

STM32 Nucleo-144 development board with STM32U5A5ZJ MCU, SMPS, supports Arduino, ST Zio and morpho connectivity

Part	Core Processor	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Supplier Device Package	Speed	Core Size	Program Memory Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Oscillator Type	Program Memory Size	RAM Size	Data Converters	Package / Case	Number of I/O	Connectivity	Suggested Programming Environment	Type	Board Type	Interconnect System	Platform	Contents	Utilized IC / Part	Data Converters [custom]	Data Converters [custom]	Data Converters [custom]
STMicroelectronics STM32U5A5AJH3	ARM® Cortex®-M33	3.6 V	1.71 V	169-TFBGA (7x7)	160 MHz	32-Bit	FLASH	Surface Mount	-40 °C	125 °C	External Internal	4 MB	2.5 M	A/D 24x12/14b SAR D/A 2x12b	169-TFBGA	136	CANbus EBI/EMI FIFO I2C IrDA LINbus MMC/SD SPI UART/USART/USB
STMicroelectronics STM32U5A5AJH6TR	ARM® Cortex®-M33	3.6 V	1.71 V	169-TFBGA (7x7)	160 MHz	32-Bit	FLASH	Surface Mount	-40 °C	85 °C	External Internal	4 MB	2.5 M	A/D 24x12/14b SAR D/A 2x12b	169-TFBGA	136	CANbus EBI/EMI FIFO I2C IrDA LINbus MMC/SD SPI UART/USART/USB
STMicroelectronics STM32U5A5AJH6	ARM® Cortex®-M33	3.6 V	1.71 V	169-TFBGA (7x7)	160 MHz	32-Bit	FLASH	Surface Mount	-40 °C	85 °C	External Internal	4 MB	2.5 M	A/D 24x12/14b SAR D/A 2x12b	169-TFBGA	136	CANbus EBI/EMI FIFO I2C IrDA LINbus MMC/SD SPI UART/USART/USB
STMicroelectronics STM32U5A5QJI6	ARM® Cortex®-M33	3.6 V	1.71 V	132-UFBGA (7x7)	160 MHz	32-Bit	FLASH	Surface Mount	-40 °C	85 °C	External Internal	4 MB	2.5 M	A/D 18x12/14b SAR D/A 2x12b	132-UFBGA	106	CANbus EBI/EMI FIFO I2C IrDA LINbus MMC/SD SPI UART/USART/USB
STMicroelectronics STM32U5A5RJT6Q	ARM® Cortex®-M33	3.6 V	1.71 V	64-LQFP (10x10)	160 MHz	32-Bit	FLASH	Surface Mount	-40 °C	85 °C	External Internal	4 MB	2.5 M	A/D 12x12/14b SAR D/A 2x12b	64-LQFP	47	CANbus EBI/EMI FIFO I2C IrDA LINbus MMC/SD SPI UART/USART/USB
STMicroelectronics STM32U5A5VJT6	ARM® Cortex®-M33	3.6 V	1.71 V	100-LQFP (14x14)	160 MHz	32-Bit	FLASH	Surface Mount	-40 °C	85 °C	External Internal	4 MB	2.5 M	A/D 20x12/14b SAR D/A 2x12b	100-LQFP	82	CANbus EBI/EMI FIFO I2C IrDA LINbus MMC/SD SPI UART/USART/USB
STMicroelectronics STM32U5A5VJT6Q	ARM® Cortex®-M33	3.6 V	1.71 V	100-LQFP (14x14)	160 MHz	32-Bit	FLASH	Surface Mount	-40 °C	85 °C	External Internal	4 MB	2.5 M	A/D 18x12/14b SAR D/A 2x12b	100-LQFP	79	CANbus EBI/EMI FIFO I2C IrDA LINbus MMC/SD SPI UART/USART/USB
STMicroelectronics NUCLEO-U5A5ZJ-Q	ARM® Cortex®-M33							Fixed										IAR EW Keil MDK STM32Cube	MCU 32-Bit	Evaluation Platform	Arduino R3 Shield ST Morpho ST Zio	Nucleo-144	Board(s)	STM32U5A5
STMicroelectronics STM32U5A5ZJT6Q	ARM® Cortex®-M33	3.6 V	1.71 V	144-LQFP (20x20)	160 MHz	32-Bit	FLASH	Surface Mount	-40 °C	85 °C	External Internal	4 MB	2.5 M		144-LQFP	111	CANbus EBI/EMI FIFO I2C IrDA LINbus MMC/SD SPI UART/USART/USB								12/14b 12b	2 22	SAR
STMicroelectronics STM32U5A5QJI6Q	ARM® Cortex®-M33	3.6 V	1.71 V	132-UFBGA (7x7)	160 MHz	32-Bit	FLASH	Surface Mount	-40 °C	85 °C	External Internal	4 MB	2.5 M	A/D 18x12/14b SAR D/A 2x12b	132-UFBGA	106	CANbus EBI/EMI FIFO I2C IrDA LINbus MMC/SD SPI UART/USART/USB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 9.64

Description

General part information

NUCLEO-U5A5ZJ-Q Series

The STM32U5Axxx devices belong to an ultra-low-power microcontrollers family (STM32U5 Series) based on the high-performance Arm®Cortex®-M33 32-bit RISC core. They operate at a frequency of up to 160 MHz.

The Cortex®-M33 core features a single-precision FPU (floating-point unit), that supports all the Arm®single-precision data-processing instructions and all the data types.

The Cortex®-M33 core also implements a full set of DSP (digital signal processing) instructions and a MPU (memory protection unit) that enhances the application security.
