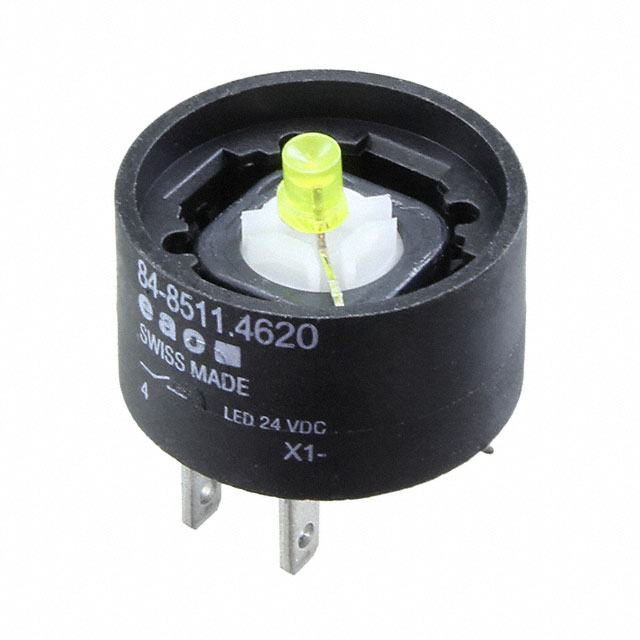

84-8511.4620

Active

EAO

INDUSTRIAL PANEL MOUNT INDICATORS / SWITCH INDICATORS SWTCH ELMT ILLUMINATED 24 VDC

Search across all available documentation for this part.

Active

EAO

INDUSTRIAL PANEL MOUNT INDICATORS / SWITCH INDICATORS SWTCH ELMT ILLUMINATED 24 VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	84-8511.4620	84-8511 Series

	-	-
(Select First, Then Apply Filters) Compatible Series	EAO, 84	EAO, 84
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	42 VAC/DC, 0.1 A	0.1 - 42 VAC/DC
Requires	Switch Body	Switch Body
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

PUSHBUTTON SWITCH, 84 SERIES, SPST-NO

Part	(Select First, Then Apply Filters) Compatible Series	Requires	Contact Rating @ Voltage	Termination Style	Circuit
EAO 84-8511.3620	84, EAO	Switch Body	0.1 A, 42 VAC/DC	Quick Connect - 0.110" (2.8mm)	SPST-NO
EAO 84-8511.9620	84, EAO	Switch Body	0.1 A, 42 VAC/DC	Quick Connect - 0.110" (2.8mm)	SPST-NO
EAO 84-8511.6320	84, EAO	Switch Body	0.1 A, 42 VAC/DC	Quick Connect - 0.110" (2.8mm)	SPST-NO
EAO 84-8511.2620	84, EAO	Switch Body	0.1 A, 42 VAC/DC	Quick Connect - 0.110" (2.8mm)	SPST-NO
EAO 84-8511.6620	84, EAO	Switch Body	0.1 A, 42 VAC/DC	Quick Connect - 0.110" (2.8mm)	SPST-NO
EAO 84-8511.6320
EAO 84-8511.4620	84, EAO	Switch Body	0.1 A, 42 VAC/DC	Quick Connect - 0.110" (2.8mm)	SPST-NO
EAO 84-8511.2640	84, EAO	Switch Body	0.1 A, 42 VAC/DC		SPST-NO
EAO 84-8511.9340	84, EAO	Switch Body	0.1 A, 42 VAC/DC		SPST-NO
EAO 84-8511.4640	84, EAO	Switch Body	0.1 A, 42 VAC/DC		SPST-NO

General part information

Configurable Contact Block SPST-NO 0.1A @ 42VAC/DC
