84-8511.4640
ActiveEAO

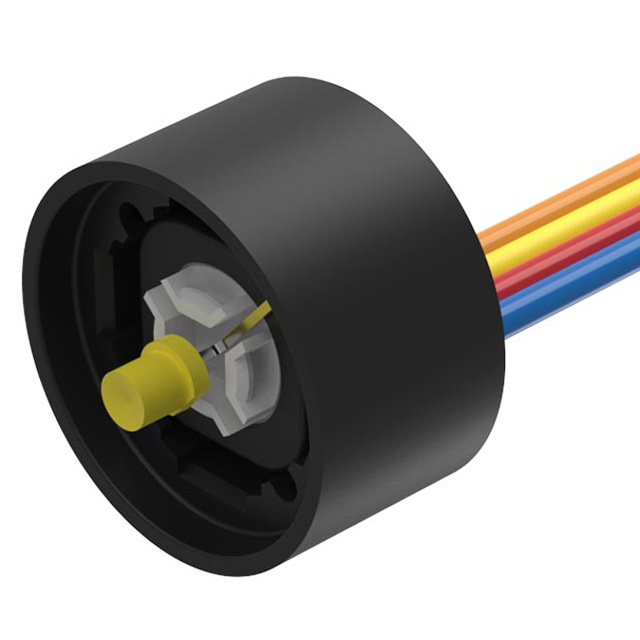

CONTACT BLOCK SPST-NO 0.1A 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
84-8511.4640
ActiveEAO
CONTACT BLOCK SPST-NO 0.1A 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 84-8511.4640 | 84-8511 Series |
|---|---|---|
| - | - | |
| (Select First, Then Apply Filters) Compatible Series | EAO, 84 | EAO, 84 |
| Circuit | SPST-NO | SPST-NO |
| Contact Rating @ Voltage | 42 VAC/DC, 0.1 A | 0.1 - 42 VAC/DC |
| Requires | Switch Body | Switch Body |
| Termination Style | - | Quick Connect - 0.110" (2.8mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.93 | |
| 10 | $ 21.51 | |||
| 25 | $ 20.27 | |||
| 50 | $ 19.39 | |||
| 100 | $ 18.54 | |||
| 250 | $ 18.02 | |||
84-8511 Series
PUSHBUTTON SWITCH, 84 SERIES, SPST-NO
| Part | (Select First, Then Apply Filters) Compatible Series | Requires | Contact Rating @ Voltage | Termination Style | Circuit |
|---|---|---|---|---|---|
EAO 84-8511.3620 | 84, EAO | Switch Body | 0.1 A, 42 VAC/DC | Quick Connect - 0.110" (2.8mm) | SPST-NO |
EAO 84-8511.9620 | 84, EAO | Switch Body | 0.1 A, 42 VAC/DC | Quick Connect - 0.110" (2.8mm) | SPST-NO |
EAO 84-8511.6320 | 84, EAO | Switch Body | 0.1 A, 42 VAC/DC | Quick Connect - 0.110" (2.8mm) | SPST-NO |
EAO 84-8511.2620 | 84, EAO | Switch Body | 0.1 A, 42 VAC/DC | Quick Connect - 0.110" (2.8mm) | SPST-NO |
EAO 84-8511.6620 | 84, EAO | Switch Body | 0.1 A, 42 VAC/DC | Quick Connect - 0.110" (2.8mm) | SPST-NO |
EAO 84-8511.6320 | |||||
EAO 84-8511.4620 | 84, EAO | Switch Body | 0.1 A, 42 VAC/DC | Quick Connect - 0.110" (2.8mm) | SPST-NO |
EAO 84-8511.2640 | 84, EAO | Switch Body | 0.1 A, 42 VAC/DC | SPST-NO | |
EAO 84-8511.9340 | 84, EAO | Switch Body | 0.1 A, 42 VAC/DC | SPST-NO | |
EAO 84-8511.4640 | 84, EAO | Switch Body | 0.1 A, 42 VAC/DC | SPST-NO |
Description
General part information
84-8511 Series
Configurable Contact Block SPST-NO 0.1A @ 42VAC/DC
