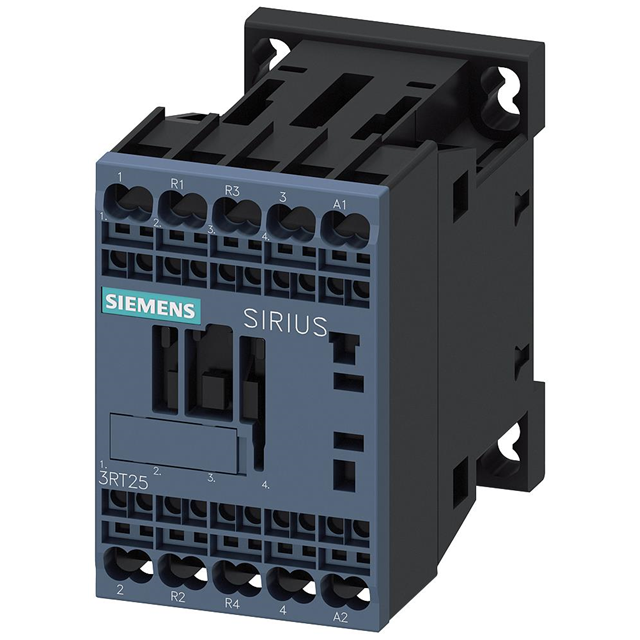

3RT25172AP00
ActiveSiemens
CONTACTOR S00 12A 230VAC 2NO/2NC
Deep-Dive with AI
Search across all available documentation for this part.
3RT25172AP00
ActiveSiemens
CONTACTOR S00 12A 230VAC 2NO/2NC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RT25172AP00 |
|---|---|
| Coil Power | 37 VA |
| Coil Voltage | 230 VAC |
| Contact Form | 4PST-2NO/2NC (2 Form A, 2 Form B) |
| Contact Rating (Current) | 12 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 184 VAC |
| Operate Time | 35 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Release Time | 13 ms |
| Switching Voltage | 690 VAC |
| Termination Style | Spring Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 116.15 | |
Description
General part information
3RT2517 Series
CONTACTOR S00 12A 230VAC 2NO/2NC
