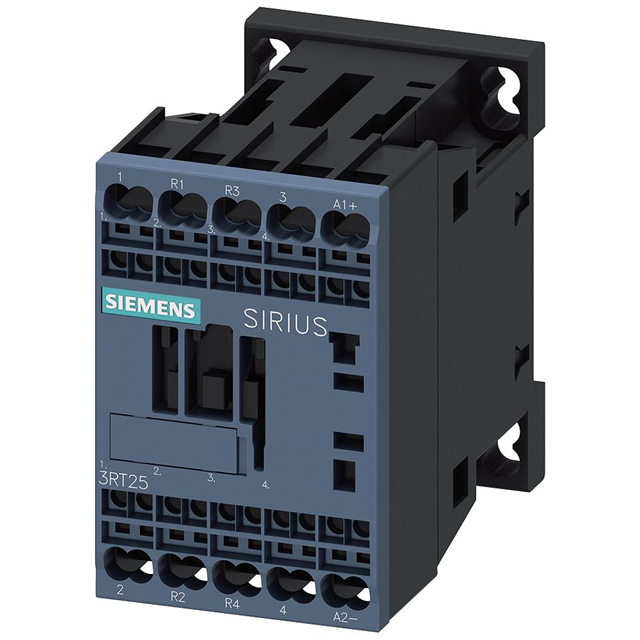

3RT2517 Series

Part	Coil Power	Release Time	Operate Time	Switching Voltage AC (Max)	Pin Count	Contact Form	Termination Style	Contact Rating (Current)	Operating Temperature (Min)	Operating Temperature (Max)	Must Operate Voltage	Features	Mounting Type	Coil Voltage
Siemens 3RT25172AB00	37 VA	13 ms	35 ms	690 VAC	4	2 A B Form PST-2NO/2NC	Spring Terminal	12 A	-25 °C	60 °C	19.2 V	Auxiliary Contacts	Chassis Mount DIN Rail	24 VDC
Siemens 3RT25172BG40							Spring Terminal							125 VDC
Siemens 3RT25172AP60	43 VA	13 ms	35 ms	690 VAC	4	2 A B Form PST-2NO/2NC	Spring Terminal	12 A	-25 °C	60 °C	192 VDC	Auxiliary Contacts	Chassis Mount DIN Rail	240 V
Siemens 3RT25172AF00	37 VA	13 ms	35 ms	690 VAC	4	2 A B Form PST-2NO/2NC	Spring Terminal	12 A	-25 °C	60 °C	88 V	Auxiliary Contacts	Chassis Mount DIN Rail	110 V
Siemens 3RT25171AP00	37 VA	13 ms	35 ms	690 VAC	4	2 A B Form PST-2NO/2NC	Screw Terminal	12 A	-25 °C	60 °C	184 VDC	Auxiliary Contacts	Chassis Mount DIN Rail	230 VDC
Siemens 3RT25172FW460KT0
Siemens 3RT25171BG40	4 W	13 ms	100 ms	690 VAC	4	2 A B Form PST-2NO/2NC	Screw Terminal	12 A	-25 °C	60 °C	100 V	Auxiliary Contacts	Chassis Mount DIN Rail	125 VDC
Siemens 3RT25172BB40	4 W	13 ms	100 ms	690 VAC	4	2 A B Form PST-2NO/2NC	Screw Terminal	12 A	-25 °C	60 °C	19.2 V	Auxiliary Contacts	Chassis Mount DIN Rail	24 VDC
Siemens 3RT25172AP00	37 VA	13 ms	35 ms	690 VAC	4	2 A B Form PST-2NO/2NC	Spring Terminal	12 A	-25 °C	60 °C	184 VDC	Auxiliary Contacts	Chassis Mount DIN Rail	230 VDC
Siemens 3RT25172BM40	4 W	13 ms	100 ms	690 VAC	4	2 A B Form PST-2NO/2NC	Spring Terminal	12 A	-25 °C	60 °C	176 VAC	Auxiliary Contacts	Chassis Mount DIN Rail	220 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
