TXR40AB00-2416AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL ADPT SZ25 J M37

Deep-Dive with AI

Search across all available documentation for this part.

TXR40AB00-2416AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL ADPT SZ25 J M37

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.19

Description

General part information

TXR40AB00 Series

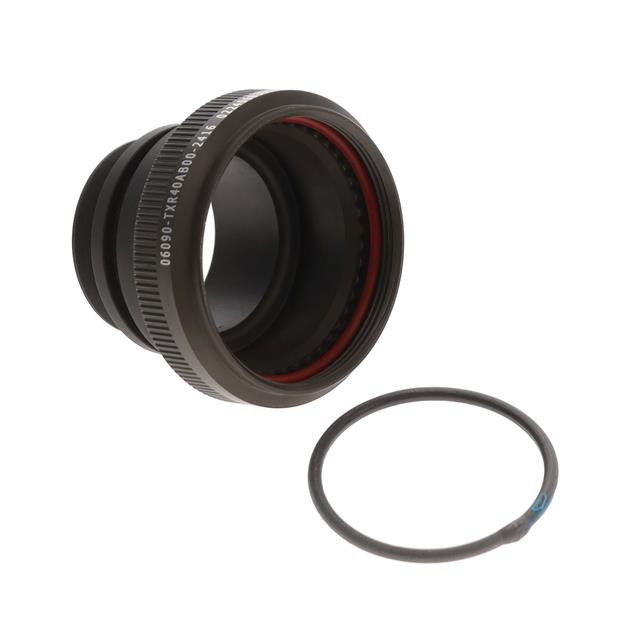

Olive Drab Connector Backshell, Heat Shrink Adapter M37x1 25, J

Documents

Technical documentation and resources

No documents available

Specification	TXR40AB00-2416AI	TXR40AB00 Series

Cable Exit	180 °	180 °
Color	Olive Drab	Olive Drab
Diameter - Outside	-	29 mm
Diameter - Outside [diameter]	43.5 mm	1.142 - 43.5 in
Diameter - Outside [diameter]	1.713 "	0.709 - 1.713 in
Features	Tinel Lock	Tinel Lock, Chain Attachment
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs	1 pcs
Includes	-	1 Braid, 2 O-Rings, 2 pc Backshell, 1 Tinel Ring
Ingress Protection	Environment Resistant	Environment Resistant
Material	Aluminum Alloy	Aluminum Alloy
Plating	Cadmium	Cadmium
Shell Size - Insert	J	D, F, H, J, G, B, 17, E, C
Shell Size - Insert	25	11 - 25
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	Shielded	Shielded
Thread Size	M37x1	M28x1, M34x1, M37x1, M31x1, M15x1, M25x1, M12x1, M18x1
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter
