TXR40AB00-1005AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL ADPT SZ11 B M15

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TXR40AB00-1005AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL ADPT SZ11 B M15

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 97.09
		10	$ 110.61
		25	$ 103.69
		50	$ 98.75
		100	$ 97.09

Description

General part information

TXR40AB00 Series

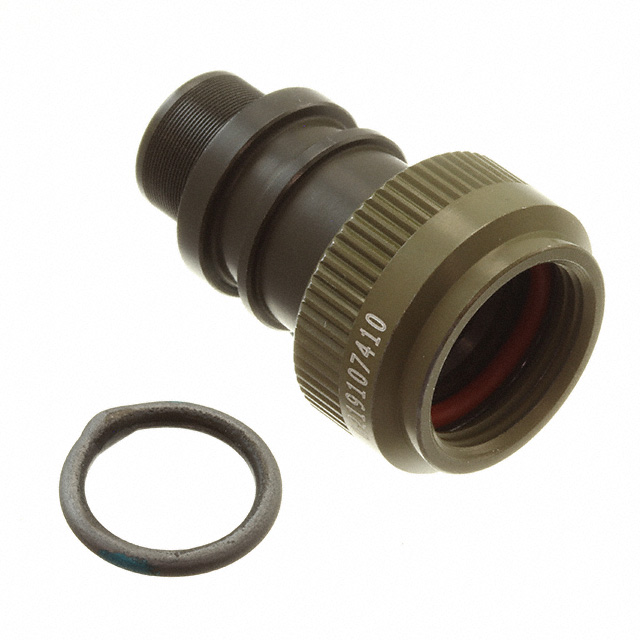

Olive Drab Connector Backshell, Heat Shrink Adapter M15x1 11, B

Documents

Technical documentation and resources

Datasheet

Specification	TXR40AB00-1005AI	TXR40AB00 Series

Cable Exit	180 °	180 °
Color	Olive Drab	Olive Drab
Diameter - Outside	-	29 mm
Diameter - Outside [diameter]	0.827 in	0.709 - 1.713 in
Diameter - Outside [diameter]	21 mm	1.142 - 43.5 in
Features	Tinel Lock	Tinel Lock, Chain Attachment
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs	1 pcs
Includes	-	1 Braid, 2 O-Rings, 2 pc Backshell, 1 Tinel Ring
Ingress Protection	Environment Resistant	Environment Resistant
Material	Aluminum Alloy	Aluminum Alloy
Plating	Cadmium	Cadmium
Shell Size - Insert	B	D, F, H, J, G, B, 17, E, C
Shell Size - Insert	11	11 - 25
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	Shielded	Shielded
Thread Size	M15x1	M28x1, M34x1, M37x1, M31x1, M15x1, M25x1, M12x1, M18x1
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter

Part	Features	Cable Exit	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Plating	Shielding	Includes	Ingress Protection	Shell Size - Insert	Shell Size - Insert	For Use With/Related Products	Material	Color	Thread Size	Diameter - Outside [diameter]
TE Connectivity Aerospace, Defense and Marine TXR40AB00-1406AI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	1.142 in	29 mm	Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	15	D	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab
TE Connectivity Aerospace, Defense and Marine TXR40AB00-1410BI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	1.142 in	29 mm	Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	15	D	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab
TE Connectivity Aerospace, Defense and Marine TXR40AB00-1810AIH	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	35.5 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	19	F	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M28x1	1.398 in
TE Connectivity Aerospace, Defense and Marine TXR40AB00-2204AI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	40 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	23	H	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M34x1	1.575 in
TE Connectivity Aerospace, Defense and Marine TXR40AB00-2416AI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	43.5 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	25	J	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M37x1	1.713 "
TE Connectivity Aerospace, Defense and Marine TXR40AB00-2012AI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	37 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	21	G	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M31x1	1.457 "
TE Connectivity Aerospace, Defense and Marine TXR40AB00-1005AI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	21 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	11	B	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M15x1	0.827 in
TE Connectivity Aerospace, Defense and Marine TXR40AB00-2414BI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	43.5 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	25	J	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M37x1	1.713 "
TE Connectivity Aerospace, Defense and Marine TXR40AB00-2006AI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	37 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	21	G	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M31x1	1.457 "
TE Connectivity Aerospace, Defense and Marine TXR40AB00-2214AI	Tinel Lock	180 °	Backshell, Heat Shrink Adapter	40 mm		Cadmium	Shielded	1 pcs, 1 pcs, 1 pcs, 1 pcs	Environment Resistant	23	H	MIL-DTL-38999 Series III, IV	Aluminum Alloy	Olive Drab	M34x1	1.575 in
