56.OA12.2442C

Active

Altech Corporation

OA561224V 4NO/2NC AGSN02+02UMAU

Search across all available documentation for this part.

Active

Altech Corporation

OA561224V 4NO/2NC AGSN02+02UMAU

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

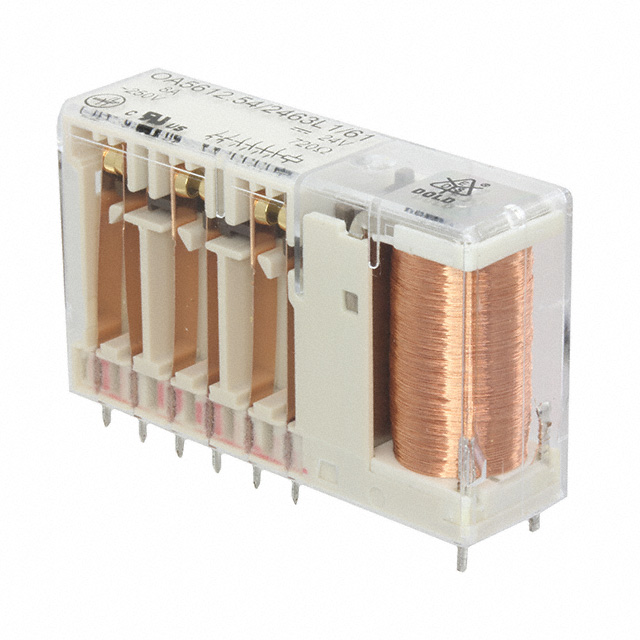

OA561224V 4NO/2NC AGSN02+02UMAU

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	56.OA12.2442C	56.OA12 Series

	-	-
Coil Current	33.3 mA	33.3 - 66.7 mA
Coil Power	800 mW	800 mW
Coil Voltage	24 VDC	12 - 24 VDC
Contact Form	6PST-4NO/2NC (4 Form A, 2 Form B)	6PST-4NO/2NC (4 Form A, 2 Form B)
Contact Material	Gold (Au), Silver Tin Oxide (AgSnO)	Gold (Au), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	8 A	8 A
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	16.8 VDC	8.4 - 16.8 VDC
Operate Time	20 ms	20 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	6 ms	6 ms
Switching Voltage [Max]	250 VDC, 400 VAC	250 - 400 VDC
Termination Style	PC Pin	PC Pin

OA561212V 2NO/4NC AGNI10+5UMAU I

Part	Contact Form	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Termination Style	Contact Rating (Current)	Operate Time	Release Time	Switching Voltage [Max]	Coil Power	Coil Current	Must Operate Voltage	Contact Material
Altech Corporation 56.OA12.1224S
Altech Corporation 56.OA12.1242N
Altech Corporation 56.OA12.2433S
Altech Corporation 56.OA12.2424S
Altech Corporation 56.OA12.0633N
Altech Corporation 56.OA12.0633C
Altech Corporation 56.OA12.1242C	6PST-4NO/2NC (4 Form A, 2 Form B)	Through Hole	85 °C	-40 °C	12 VDC	PC Pin	8 A	20 ms	6 ms	250 VDC, 400 VAC	800 mW	66.7 mA	8.4 VDC	Gold (Au), Silver Tin Oxide (AgSnO)
Altech Corporation 56.OA12.1233C
Altech Corporation 56.OA12.0642S
Altech Corporation 56.OA12.2442C	6PST-4NO/2NC (4 Form A, 2 Form B)	Through Hole	85 °C	-40 °C	24 VDC	PC Pin	8 A	20 ms	6 ms	250 VDC, 400 VAC	800 mW	33.3 mA	16.8 VDC	Gold (Au), Silver Tin Oxide (AgSnO)
