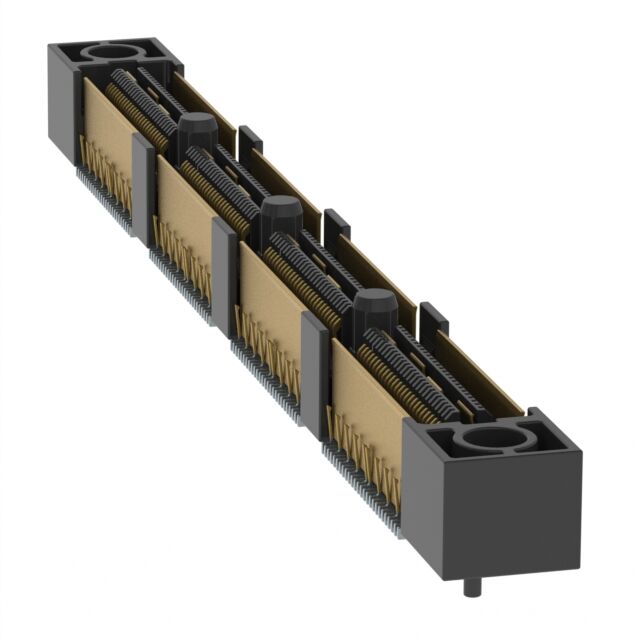

QFSS-064-04.25-L-D-DP-A-GP

Active

Samtec Inc.

CONN DIFFERENTIAL PAIR SKT 64 POS 0.635MM SOLDER ST SMD TRAY

Search across all available documentation for this part.

Active

Samtec Inc.

CONN DIFFERENTIAL PAIR SKT 64 POS 0.635MM SOLDER ST SMD TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	QFSS-064-04.25-L-D-DP-A-GP

Connector Type	Differential Pair Array, Female
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Shielded, Ground Bus (Plane)
Height Above Board	7.06 mm
Height Above Board	0.278 "
Mated Stacking Heights	11 mm
Mounting Type	Surface Mount
Number of Positions	128
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

Board to Board & Mezzanine Connectors 0.635 mm Q2 Shielded Ground Plane Socket Strip

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mated Stacking Heights	Number of Rows	Contact Finish	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Features	Connector Type
Samtec Inc. QFSS-064-04.25-L-D-DP-A-GP	Surface Mount	10 Áin	0.25 Ám	128	11 mm	2	Gold	0.64 mm	0.025 in	7.06 mm	0.278 "	Board Guide Ground Bus (Plane) Shielded	Differential Pair Array Female
Samtec Inc. QFSS-064-04.25-L-D-DP	Surface Mount	10 Áin	0.25 Ám	128	11 mm	2	Gold	0.64 mm	0.025 in	7.06 mm	0.278 "	Board Guide Ground Bus (Plane) Shielded	Differential Pair Array Female
Samtec Inc. QFSS-064-04.25-L-D-DP-GP	Surface Mount	10 Áin	0.25 Ám	128	11 mm	2	Gold	0.64 mm	0.025 in	7.06 mm	0.278 "	Board Guide Ground Bus (Plane) Shielded	Differential Pair Array Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	26	$ 34.53

General part information

Board to Board & Mezzanine Connectors 0.635 mm Q2 Shielded Ground Plane Socket Strip

Technical documentation and resources

No documents available
