822B003-273L001

Active

MH Connectors

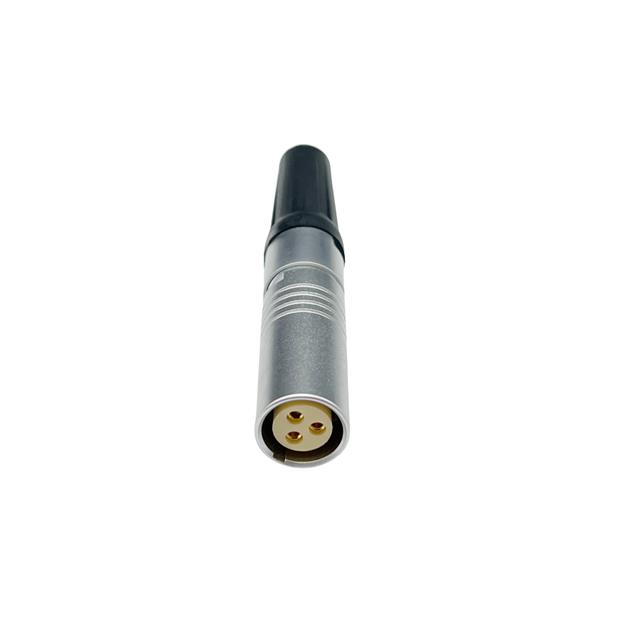

CIRCULAR CONNECTOR, QUIK-LOQ 822B SERIES, CABLE MOUNT RECEPTACLE, 3 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +4

822B003-273L001

Active

MH Connectors

CIRCULAR CONNECTOR, QUIK-LOQ 822B SERIES, CABLE MOUNT RECEPTACLE, 3 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

DocumentsDatasheet Drawing EN +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	822B003-273L001

Backshell Material, Plating	Brass, Chrome
Cable Opening [Max] [custom]	10.2 mm
Cable Opening [Max] [custom]	0.402 in
Cable Opening [Min] [custom]	9.3 mm
Cable Opening [Min] [custom]	0.366 in
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	7 µin
Contact Finish Thickness - Mating	0.178 µm
Contact Material	Copper Alloy
Current Rating (Amps)	17 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP50
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded
Voltage Rating	800 V

822B Series

Part	Shell Finish	Primary Material	Current Rating (Amps)	Color	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Contact Material	Insert Material	Fastening Type	Mounting Feature	Voltage Rating	Connector Type	Number of Positions	Shielding	Shell Material	Contact Finish - Mating	Backshell Material, Plating	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Features	Mounting Type	Number of Positions	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Applications	Cable Opening [custom]	Cable Opening [custom]	Termination	Cable Opening [diameter]	Cable Opening [diameter]
MH Connectors 822B004-203R001	Nickel	Metal	15 A	Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull	Bulkhead - Front Side Nut	610 V	Receptacle Female Sockets	4	Shielded	Brass	Gold
MH Connectors 822B010-203R001	Nickel	Metal	8 A	Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull	Bulkhead - Front Side Nut	500 V	Receptacle Female Sockets	10	Shielded	Brass	Gold
MH Connectors 822B016-273L001	Nickel	Metal	6 A	Black Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull		315 V	Receptacle Female Sockets		Shielded	Brass	Gold	Brass Chrome	9.3 mm	0.366 in	10.2 mm	0.402 in	Backshell Strain Relief	Free Hanging (In-Line)	16
MH Connectors 822B016-273L601	Nickel	Metal	6 A	Black Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull		315 V	Receptacle Female Sockets		Shielded	Brass	Gold	Brass Chrome					Backshell Strain Relief	Free Hanging (In-Line)	16	6.2 mm	0.244 in	0.209 in	5.3 mm
MH Connectors 822B003-273L001	Nickel	Metal	17 A	Black Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull		800 V	Receptacle Female Sockets		Shielded	Brass	Gold	Brass Chrome	9.3 mm	0.366 in	10.2 mm	0.402 in	Backshell Strain Relief	Free Hanging (In-Line)
MH Connectors 822B019-203RF01	Nickel	Metal		Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull	Bulkhead - Rear Side Nut	280 V	Receptacle Female Sockets	19	Shielded	Brass	Gold													Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement
MH Connectors 822B010-103R001	Nickel	Metal	8 A	Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull	Bulkhead - Rear Side Nut	500 V	Male Pins Plug	10	Shielded	Brass	Gold														0.531 in	13.5 mm
MH Connectors 822B004-203RF01	Nickel	Metal		Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull	Bulkhead - Rear Side Nut	610 V	Receptacle Female Sockets	4	Shielded	Brass	Gold													Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement
MH Connectors 822B010-213R001	Nickel	Metal	8 A	Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull	Bulkhead - Front Side Nut	500 V	Receptacle Female Sockets	10	Shielded	Brass	Gold							Panel Mount Through Hole									Solder
MH Connectors 822B008-173L901	Nickel	Metal	10 A	Black Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull		500 V	Male Pins Plug	8	Shielded	Brass	Gold	Brass Chrome					Backshell Strain Relief	Free Hanging (In-Line)										0.327 in 0.362 in	8.3 mm 9.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	18	$ 41.18
Newark	Each	10	$ 40.56
		100	$ 34.63
		500	$ 32.89

Description

General part information

822B Series

The 822B003-273L001 from Norcomp is an 822B series IP50 rated-15mm push pull female connector with 3 poles. The precision designed metal shell push-pull connector is engineered to withstand shock and high vibration both indoors and outdoors in harsh environments. The small rugged, sealed push pull connector is ideal for applications where quick connect / disconnect and environmental protection are required. This new versatile connector is fully intermateable with existing push pull industry solutions.
