822B019-203RF01

Active

MH Connectors

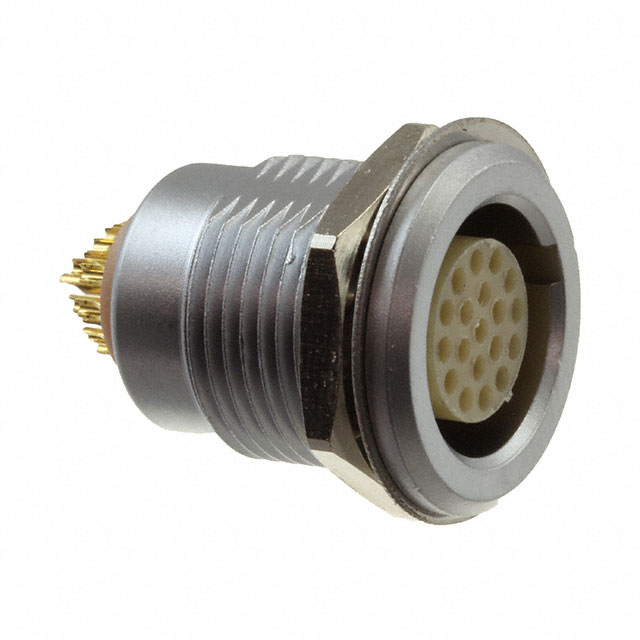

CONN RCPT FMALE 19P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

822B019-203RF01

Active

MH Connectors

CONN RCPT FMALE 19P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	822B019-203RF01

Applications	Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.178 µm
Contact Finish Thickness - Mating	7 µin
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	19
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded
Voltage Rating	280 V

822B Series

Part	Shell Finish	Primary Material	Current Rating (Amps)	Color	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Contact Material	Insert Material	Fastening Type	Mounting Feature	Voltage Rating	Connector Type	Number of Positions	Shielding	Shell Material	Contact Finish - Mating	Backshell Material, Plating	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Features	Mounting Type	Number of Positions	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Applications	Cable Opening [custom]	Cable Opening [custom]	Termination	Cable Opening [diameter]	Cable Opening [diameter]
MH Connectors 822B004-203R001	Nickel	Metal	15 A	Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull	Bulkhead - Front Side Nut	610 V	Receptacle Female Sockets	4	Shielded	Brass	Gold
MH Connectors 822B010-203R001	Nickel	Metal	8 A	Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull	Bulkhead - Front Side Nut	500 V	Receptacle Female Sockets	10	Shielded	Brass	Gold
MH Connectors 822B016-273L001	Nickel	Metal	6 A	Black Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull		315 V	Receptacle Female Sockets		Shielded	Brass	Gold	Brass Chrome	9.3 mm	0.366 in	10.2 mm	0.402 in	Backshell Strain Relief	Free Hanging (In-Line)	16
MH Connectors 822B016-273L601	Nickel	Metal	6 A	Black Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull		315 V	Receptacle Female Sockets		Shielded	Brass	Gold	Brass Chrome					Backshell Strain Relief	Free Hanging (In-Line)	16	6.2 mm	0.244 in	0.209 in	5.3 mm
MH Connectors 822B003-273L001	Nickel	Metal	17 A	Black Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull		800 V	Receptacle Female Sockets		Shielded	Brass	Gold	Brass Chrome	9.3 mm	0.366 in	10.2 mm	0.402 in	Backshell Strain Relief	Free Hanging (In-Line)
MH Connectors 822B019-203RF01	Nickel	Metal		Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull	Bulkhead - Rear Side Nut	280 V	Receptacle Female Sockets	19	Shielded	Brass	Gold													Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement
MH Connectors 822B010-103R001	Nickel	Metal	8 A	Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull	Bulkhead - Rear Side Nut	500 V	Male Pins Plug	10	Shielded	Brass	Gold														0.531 in	13.5 mm
MH Connectors 822B004-203RF01	Nickel	Metal		Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull	Bulkhead - Rear Side Nut	610 V	Receptacle Female Sockets	4	Shielded	Brass	Gold													Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement
MH Connectors 822B010-213R001	Nickel	Metal	8 A	Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull	Bulkhead - Front Side Nut	500 V	Receptacle Female Sockets	10	Shielded	Brass	Gold							Panel Mount Through Hole									Solder
MH Connectors 822B008-173L901	Nickel	Metal	10 A	Black Silver	IP50	200 °C	-40 °C	7 µin	0.178 µm	Keyed	Copper Alloy	Polyphenylene Sulfide (PPS)	Push-Pull		500 V	Male Pins Plug	8	Shielded	Brass	Gold	Brass Chrome					Backshell Strain Relief	Free Hanging (In-Line)										0.327 in 0.362 in	8.3 mm 9.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 38.62

Description

General part information

822B Series

19 Position Circular Connector Receptacle, Female Sockets Solder Cup
