MSM22-NX00A10-SNCSNCNF-RIRGB024-Q0000-S

Active

SCHURTER Inc.

MSM SERIES 22MM METAL LINE SWITC

Deep-Dive with AI

Search across all available documentation for this part.

MSM22-NX00A10-SNCSNCNF-RIRGB024-Q0000-S

Active

SCHURTER Inc.

MSM SERIES 22MM METAL LINE SWITC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MSM22-NX Series

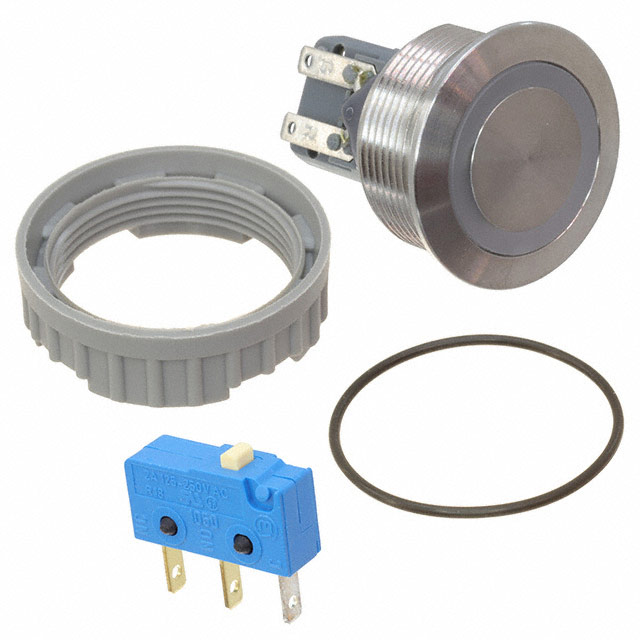

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available

Specification	MSM22-NX00A10-SNCSNCNF-RIRGB024-Q0000-S	MSM22-NX Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPDT	DPDT, SPDT
Color - Actuator/Cap	Silver	Silver, Clear
Current Rating (Amps)	100 mA	5 - 100 A
Electrical Life	200000 Cycles	50000 - 200000 Cycles
Features	-	Ceramic Actuator
Illumination Type, Color	Red, LED, Blue, Green	Red, LED, Blue, Green
Illumination Voltage (Nominal)	24 V	24 V
Ingress Protection	IP40	IP40
Mechanical Life	1500000 Cycles	1500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.1 mm	22.1 mm
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	-	125 - 250 V
Voltage Rating - DC	30 V	30 V

Part

Voltage Rating - AC

Mounting Type

Electrical Life

Actuator Marking

Mechanical Life

Switch Function

Panel Cutout Dimensions [diameter]

Circuit

Current Rating (Amps)

Type

Ingress Protection

Operating Temperature [Min]

Operating Temperature [Max]

Termination Style

Illumination Voltage (Nominal)

Illumination Type, Color

Actuator Type

Color - Actuator/Cap

Voltage Rating - DC

Features

SCHURTER Inc.

MSM22-NXDP05A-SNCSNCNF-RI0RD024-Q0000-S

125 V

Panel Mount, Front

200000 Cycles

No Marking

1500000 Cycles

On-Mom

22.1 mm

DPDT

5 A

Anti-Vandal, Illuminated

IP40

-25 °C

85 °C

Quick Connect - 0.110" (2.8mm)

24 V

LED, Red

Button, Flush, Round

Silver

SCHURTER Inc.

MSM22-NX00A10-SNCSNCNF-RI0BL024-Q0000-S

Panel Mount, Front

200000 Cycles

No Marking

1500000 Cycles

On-Mom

22.1 mm

SPDT

100 mA

Anti-Vandal, Illuminated

IP40

-25 °C

85 °C

Quick Connect - 0.110" (2.8mm)

24 V

Blue, LED

Button, Flush, Round

Silver

30 V

SCHURTER Inc.

MSM22-NX00A10-SNCSNCNF-RIRGB024-Q0000-S

Panel Mount, Front

200000 Cycles

No Marking

1500000 Cycles

On-Mom

22.1 mm

SPDT

100 mA

Anti-Vandal, Illuminated

IP40

-25 °C

85 °C

Quick Connect - 0.110" (2.8mm)

24 V

Blue, Green, LED, Red

Button, Flush, Round

Silver

30 V

SCHURTER Inc.

MSM22-NX00A10-SNCSNCNF-RI0GN024-Q0000-S

Panel Mount, Front

200000 Cycles

No Marking

1500000 Cycles

On-Mom

22.1 mm

SPDT

100 mA

Anti-Vandal, Illuminated

IP40

-25 °C

85 °C

Quick Connect - 0.110" (2.8mm)

24 V

Green, LED

Button, Flush, Round

Silver

30 V

SCHURTER Inc.

MSM22-NX0005A-SNCSNCNF-RI0GN024-Q0000-S

125 V

Panel Mount, Front

200000 Cycles

No Marking

1500000 Cycles

On-Mom

22.1 mm

SPDT

5 A

Anti-Vandal, Illuminated

IP40

-25 °C

85 °C

Quick Connect - 0.110" (2.8mm)

24 V

Green, LED

Button, Flush, Round

Silver

SCHURTER Inc.

MSM22-NXCSA10-SNCCWTNF-AIRGB024-Q0000-S

Panel Mount, Front

200000 Cycles

No Marking

1500000 Cycles

On-Mom

22.1 mm

SPDT

100 mA

Anti-Vandal, Illuminated

IP40

-25 °C

85 °C

Quick Connect - 0.110" (2.8mm)

24 V

Blue, Green, LED, Red

Button, Flush, Round

Clear

30 V

Ceramic Actuator

SCHURTER Inc.

MSM22-NX0005A-SNCSNCNF-RI0RD024-Q0000-S

125 V

Panel Mount, Front

200000 Cycles

No Marking

1500000 Cycles

On-Mom

22.1 mm

SPDT

5 A

Anti-Vandal, Illuminated

IP40

-25 °C

85 °C

Quick Connect - 0.110" (2.8mm)

24 V

LED, Red

Button, Flush, Round

Silver

SCHURTER Inc.

MSM22-NXDP05A-SNCSNCNF-RI0BL024-Q0000-S

125 V

Panel Mount, Front

200000 Cycles

No Marking

1500000 Cycles

On-Mom

22.1 mm

DPDT

5 A

Anti-Vandal, Illuminated

IP40

-25 °C

85 °C

Quick Connect - 0.110" (2.8mm)

24 V

Blue, LED

Button, Flush, Round

Silver

SCHURTER Inc.

MSM22-NXDP05A-SNCSNCNF-RI0GN024-Q0000-S

125 V

Panel Mount, Front

200000 Cycles

No Marking

1500000 Cycles

On-Mom

22.1 mm

DPDT

5 A

Anti-Vandal, Illuminated

IP40

-25 °C

85 °C

Quick Connect - 0.110" (2.8mm)

24 V

Green, LED

Button, Flush, Round

Silver

SCHURTER Inc.

MSM22-NX0010A-SNCSNCNF-RI0RD024-Q0000-S

250 V

Panel Mount, Front

50000 Cycles

No Marking

1500000 Cycles

On-Mom

22.1 mm

SPDT

10 A

Anti-Vandal, Illuminated

IP40

-25 °C

85 °C

Quick Connect - 0.110" (2.8mm)

24 V

LED, Red

Button, Flush, Round

Silver

Part	Voltage Rating - AC	Mounting Type	Electrical Life	Actuator Marking	Mechanical Life	Switch Function	Panel Cutout Dimensions [diameter]	Circuit	Current Rating (Amps)	Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Illumination Voltage (Nominal)	Illumination Type, Color	Actuator Type	Color - Actuator/Cap	Voltage Rating - DC	Features
SCHURTER Inc. MSM22-NXDP05A-SNCSNCNF-RI0RD024-Q0000-S	125 V	Panel Mount, Front	200000 Cycles	No Marking	1500000 Cycles	On-Mom	22.1 mm	DPDT	5 A	Anti-Vandal, Illuminated	IP40	-25 °C	85 °C	Quick Connect - 0.110" (2.8mm)	24 V	LED, Red	Button, Flush, Round	Silver
SCHURTER Inc. MSM22-NX00A10-SNCSNCNF-RI0BL024-Q0000-S		Panel Mount, Front	200000 Cycles	No Marking	1500000 Cycles	On-Mom	22.1 mm	SPDT	100 mA	Anti-Vandal, Illuminated	IP40	-25 °C	85 °C	Quick Connect - 0.110" (2.8mm)	24 V	Blue, LED	Button, Flush, Round	Silver	30 V
SCHURTER Inc. MSM22-NX00A10-SNCSNCNF-RIRGB024-Q0000-S		Panel Mount, Front	200000 Cycles	No Marking	1500000 Cycles	On-Mom	22.1 mm	SPDT	100 mA	Anti-Vandal, Illuminated	IP40	-25 °C	85 °C	Quick Connect - 0.110" (2.8mm)	24 V	Blue, Green, LED, Red	Button, Flush, Round	Silver	30 V
SCHURTER Inc. MSM22-NX00A10-SNCSNCNF-RI0GN024-Q0000-S		Panel Mount, Front	200000 Cycles	No Marking	1500000 Cycles	On-Mom	22.1 mm	SPDT	100 mA	Anti-Vandal, Illuminated	IP40	-25 °C	85 °C	Quick Connect - 0.110" (2.8mm)	24 V	Green, LED	Button, Flush, Round	Silver	30 V
SCHURTER Inc. MSM22-NX0005A-SNCSNCNF-RI0GN024-Q0000-S	125 V	Panel Mount, Front	200000 Cycles	No Marking	1500000 Cycles	On-Mom	22.1 mm	SPDT	5 A	Anti-Vandal, Illuminated	IP40	-25 °C	85 °C	Quick Connect - 0.110" (2.8mm)	24 V	Green, LED	Button, Flush, Round	Silver
SCHURTER Inc. MSM22-NXCSA10-SNCCWTNF-AIRGB024-Q0000-S		Panel Mount, Front	200000 Cycles	No Marking	1500000 Cycles	On-Mom	22.1 mm	SPDT	100 mA	Anti-Vandal, Illuminated	IP40	-25 °C	85 °C	Quick Connect - 0.110" (2.8mm)	24 V	Blue, Green, LED, Red	Button, Flush, Round	Clear	30 V	Ceramic Actuator
SCHURTER Inc. MSM22-NX0005A-SNCSNCNF-RI0RD024-Q0000-S	125 V	Panel Mount, Front	200000 Cycles	No Marking	1500000 Cycles	On-Mom	22.1 mm	SPDT	5 A	Anti-Vandal, Illuminated	IP40	-25 °C	85 °C	Quick Connect - 0.110" (2.8mm)	24 V	LED, Red	Button, Flush, Round	Silver
SCHURTER Inc. MSM22-NXDP05A-SNCSNCNF-RI0BL024-Q0000-S	125 V	Panel Mount, Front	200000 Cycles	No Marking	1500000 Cycles	On-Mom	22.1 mm	DPDT	5 A	Anti-Vandal, Illuminated	IP40	-25 °C	85 °C	Quick Connect - 0.110" (2.8mm)	24 V	Blue, LED	Button, Flush, Round	Silver
SCHURTER Inc. MSM22-NXDP05A-SNCSNCNF-RI0GN024-Q0000-S	125 V	Panel Mount, Front	200000 Cycles	No Marking	1500000 Cycles	On-Mom	22.1 mm	DPDT	5 A	Anti-Vandal, Illuminated	IP40	-25 °C	85 °C	Quick Connect - 0.110" (2.8mm)	24 V	Green, LED	Button, Flush, Round	Silver
SCHURTER Inc. MSM22-NX0010A-SNCSNCNF-RI0RD024-Q0000-S	250 V	Panel Mount, Front	50000 Cycles	No Marking	1500000 Cycles	On-Mom	22.1 mm	SPDT	10 A	Anti-Vandal, Illuminated	IP40	-25 °C	85 °C	Quick Connect - 0.110" (2.8mm)	24 V	LED, Red	Button, Flush, Round	Silver
