MSM22-NX00A10-SNCSNCNF-RI0GN024-Q0000-S

Active

SCHURTER Inc.

MSM 22, METAL SWITCH, 100 MA SWI

Deep-Dive with AI

Search across all available documentation for this part.

MSM22-NX00A10-SNCSNCNF-RI0GN024-Q0000-S

Active

SCHURTER Inc.

MSM 22, METAL SWITCH, 100 MA SWI

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.58

Description

General part information

MSM22-NX Series

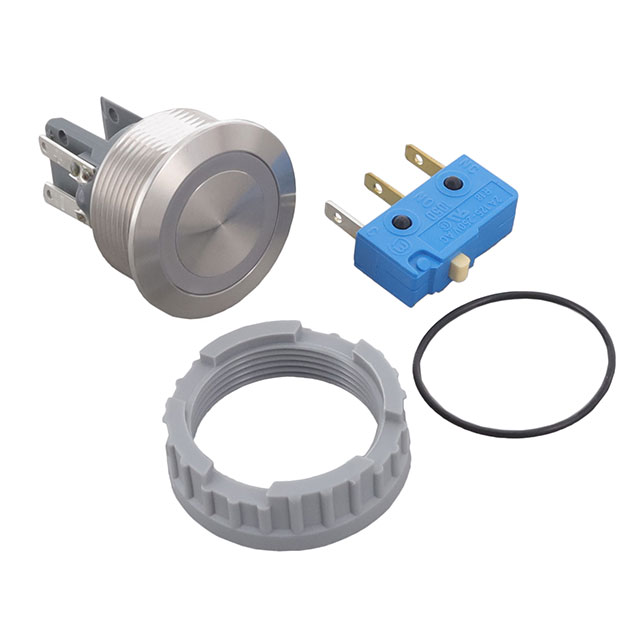

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available

Specification	MSM22-NX00A10-SNCSNCNF-RI0GN024-Q0000-S	MSM22-NX Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPDT	DPDT, SPDT
Color - Actuator/Cap	Silver	Silver, Clear
Current Rating (Amps)	100 mA	5 - 100 A
Electrical Life	200000 Cycles	50000 - 200000 Cycles
Features	-	Ceramic Actuator
Illumination Type, Color	LED, Green	Red, LED, Blue, Green
Illumination Voltage (Nominal)	24 V	24 V
Ingress Protection	IP40	IP40
Mechanical Life	1500000 Cycles	1500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.1 mm	22.1 mm
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	-	125 - 250 V
Voltage Rating - DC	30 V	30 V

Part

Voltage Rating - AC

Mounting Type

Electrical Life

Actuator Marking

Mechanical Life

Switch Function

Panel Cutout Dimensions [diameter]

Circuit

Current Rating (Amps)

Type

Ingress Protection

Operating Temperature [Min]

Operating Temperature [Max]

Termination Style

Illumination Voltage (Nominal)

Illumination Type, Color

Actuator Type

Color - Actuator/Cap

Voltage Rating - DC

Features
