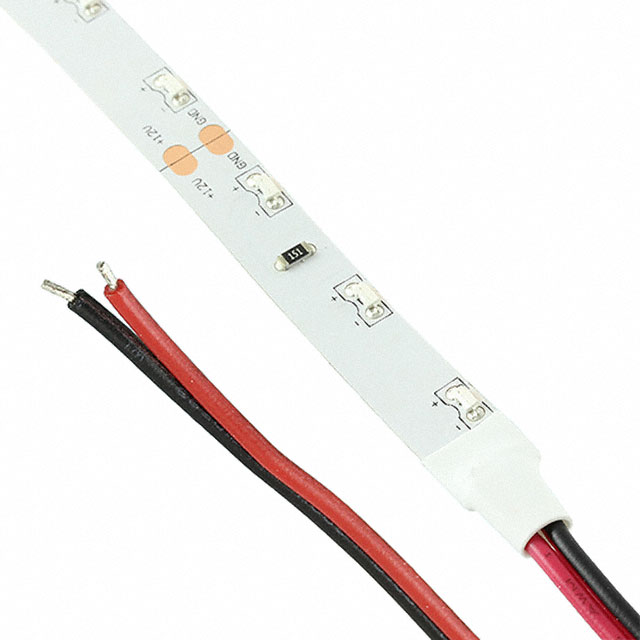

ZFS-85000SV-WW

Active

JKL Components Corp.

LED ENG WM WHT LNR STRP 2750K 5M

Search across all available documentation for this part.

Active

JKL Components Corp.

LED ENG WM WHT LNR STRP 2750K 5M

Technical Specifications

Parameters and characteristics for this part

Part	Current - Max [Max]	Type	Configuration	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Lens Type	Color	Lumens/Watt @ Current - Test	Current - Test	Wavelength	Viewing Angle	Luminous Flux @ Current/Temperature	Height [z]	CCT (K)
JKL Components Corp. ZFS-85000HD-R	4.4 A	LED Engine	Flexible Linear Light Strip	12 V	5000 mm	8 mm	Flat	Red	35 lm/W	4.4 A	626 nm	120 °	1820 lm	2.5 mm
JKL Components Corp. ZFS-85000SV-CW		LED Engine	Flexible Linear Light Strip	12 V	5000 mm	8 mm	Flat	Cool White	50 lm/W	2 A		120 °	1200 lm		7500 K
JKL Components Corp. ZFS-85000SV-WW		LED Engine	Flexible Linear Light Strip	12 V	5000 mm	8 mm	Flat	Warm White	44 lm/W	2 A		120 °			2750 K
JKL Components Corp. ZFS-85000HD-B	4.4 A	LED Engine	Flexible Linear Light Strip	12 V	5000 mm	8 mm	Flat	Blue	35 lm/W	4.4 A	460 nm	120 °	1820 lm	2.5 mm
JKL Components Corp. ZFS-85000HD-WW		LED Engine	Flexible Linear Light Strip	12 V	5000 mm	8 mm	Flat	Warm White	31 lm/W	4.4 A		120 °	1650 lm	2.5 mm	3500 K
JKL Components Corp. ZFS-85000HD-CW		LED Engine	Flexible Linear Light Strip	12 V	5000 mm	8 mm	Flat	Cool White	34 lm/W	4.4 A		120 °	1800 lm	2.5 mm	6250 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Engine - White, Warm Linear Light Strip, Flexible
