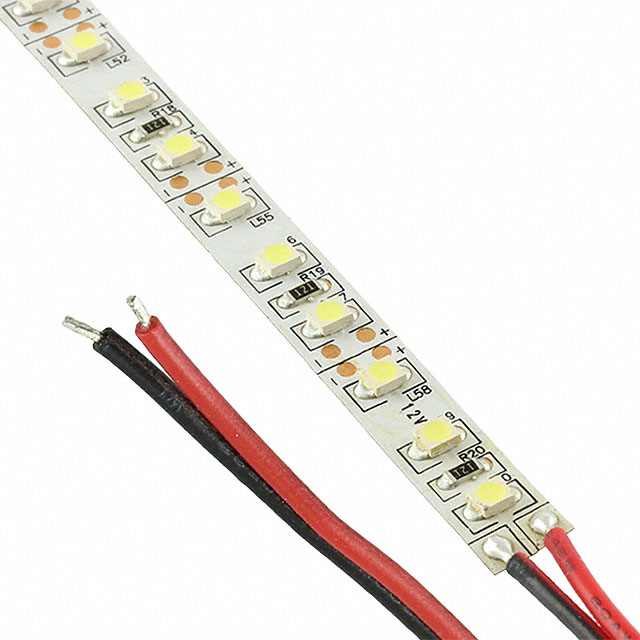

ZFS-85000HD-CW
ActiveLED STRIP, 5 M, 600 LEDS, COOL WHITE, 12 VDC, 52.8 W, NOT RATED
Deep-Dive with AI
Search across all available documentation for this part.
ZFS-85000HD-CW
ActiveLED STRIP, 5 M, 600 LEDS, COOL WHITE, 12 VDC, 52.8 W, NOT RATED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZFS-85000HD-CW |
|---|---|
| CCT (K) | 6250 K |
| Color | Cool, White |
| Configuration | Linear Light Strip, Flexible |
| Current - Test | 4.4 A |
| Height [z] | 2.5 mm |
| Lens Type | Flat |
| Lumens/Watt @ Current - Test | 34 lm/W |
| Luminous Flux @ Current/Temperature | 1800 lm |
| Size / Dimension [x] | 5000 mm |
| Size / Dimension [y] | 8 mm |
| Type | LED Engine |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ZFS-85000 Series
The ZFS series high density LED Flex Ribbon(strip) of LED lighting which installs easily and is segmentable for maximum variety in installation size. This product line runs on 12V or 24V, is available in 3 colour temperature and can be purchased in 5m reel with two different densities of LED placement. A solderless series of joiners and connectors is available for the ZFS series.
