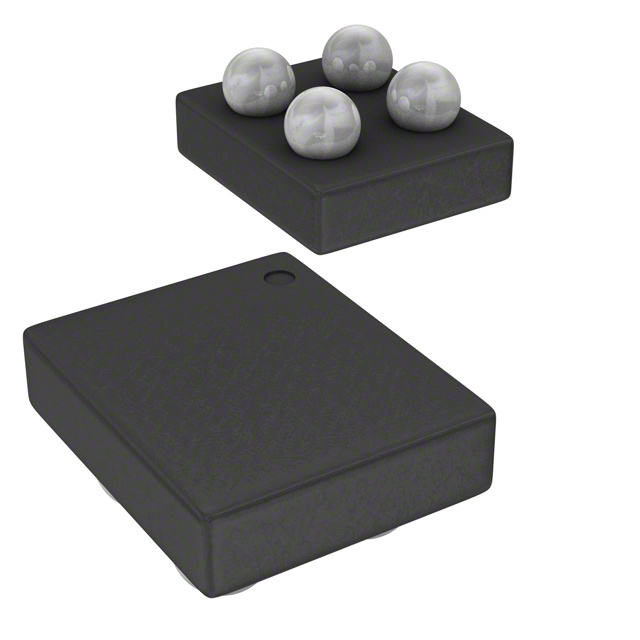

M24C64M-FCU6T/TF

Obsolete

STMicroelectronics

IC EEPROM 64KBIT 1MHZ 4WLCSP

Find alt

Alpha

M24C64M-FCU6T/TF

Obsolete

STMicroelectronics

IC EEPROM 64KBIT 1MHZ 4WLCSP

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

M24C64 Series

The M24C64 is a 64-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as 8K × 8 bits.

Over an ambient temperature range of -40 °C / +85 °C, the M24C64-W can operate with a supply voltage from 2.5 V to 5.5 V, the M24C64-R can operate with a supply voltage from 1.8 V to 5.5 V, and the M24C64-F and M24C64-DF can operate with a supply voltage from 1.7 V to 5.5 V ( the M24C64-F can also operate down to 1.6 V, under some restricting conditions).

The M24C64-D offers an additional page, named the identification page (32 byte). The identification page can be used to store sensitive application parameters which can be (later) permanently locked in read-only mode.

Technical Specifications

Parameters and characteristics for this part

Specification	M24C64M-FCU6T/TF

Access Time	450 ns
Clock Frequency	1 MHz
Memory Depth	8 K
Memory Format	EEPROM
Memory Interface (Type)	I2C
Memory Size	8 KB
Memory Type	Non-Volatile
Memory Width	8 bit
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	4-XFBGA
Package Name	4-WLCSP
Technology	EEPROM
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	1.7 V
Write Cycle Time - Page	5 ms
Write Cycle Time - Word	5 ms

M24C64 Series

64-Kbit serial I2C bus EEPROM

Part	Package Name	Package Length	Package Width	Access Time	Memory Interface (Type)	Write Cycle Time - Word	Write Cycle Time - Page	Memory Type	Memory Depth	Memory Width	Operating Temperature (Max)	Operating Temperature (Min)	Technology	Memory Format	Memory Size	Clock Frequency	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Mounting Type	Package / Case
STMicroelectronics M24C64-FDW5TP	8-TSSOP	0.173 in	4.4 mm	450 ns	I2C	5 ms	5 ms	Non-Volatile	8 K	8 bit	85 °C	-20 °C	EEPROM	EEPROM	8 KB	1 MHz	1.7 V	5.5 V	Surface Mount
STMicroelectronics M24C64-FCS6TP/K	5-WLCSP	0.96 mm	1.07 mm	450 ns	I2C	5 ms	5 ms	Non-Volatile	8 K	8 bit	85 °C	-40 °C	EEPROM	EEPROM	8 KB	1 MHz	1.7 V	5.5 V	Surface Mount	5-UFBGA WLCSP
STMicroelectronics M24C64M-FCU6T/TF	4-WLCSP			450 ns	I2C	5 ms	5 ms	Non-Volatile	8 K	8 bit	85 °C	-40 °C	EEPROM	EEPROM	8 KB	1 MHz	1.7 V	5.5 V	Surface Mount	4-XFBGA
STMicroelectronics M24C64S-FCU6T/TF	4-WLCSP	0.85 mm	0.85 mm	650 ns	I2C	5 ms	5 ms	Non-Volatile	8 K	8 bit	85 °C	-40 °C	EEPROM	EEPROM	8 KB	1 MHz	1.7 V	5.5 V	Surface Mount	4-XFBGA WLCSP
STMicroelectronics M24C64-FMB6TG	8-UFDFPN	2 mm	3 mm	450 ns	I2C	5 ms	5 ms	Non-Volatile	8 K	8 bit	85 °C	-40 °C	EEPROM	EEPROM	8 KB	1 MHz	1.7 V	5.5 V	Surface Mount	8-UFDFN Exposed Pad
