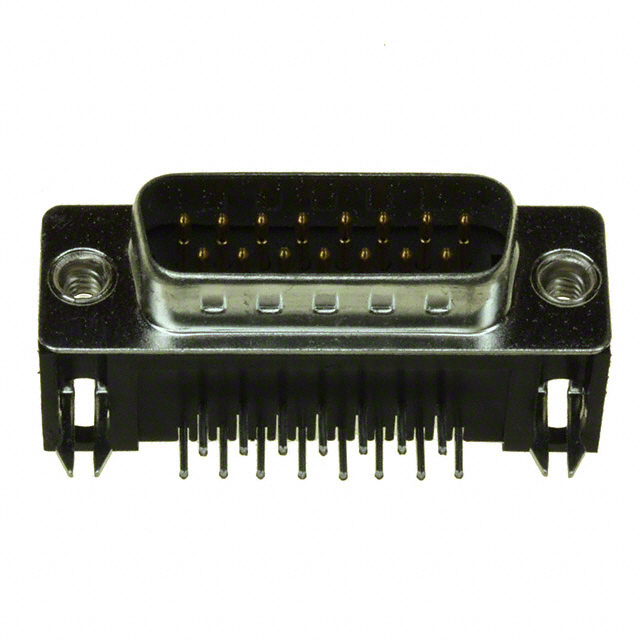

6E17C-015P-AJ-121

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

6E17C-015P-AJ-121

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6E17C-015P-AJ-121

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Glass Filled, Polyamide (PA), Nylon
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

6E17C015 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Backset Spacing	Backset Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Features	Connector Style	Shell Size, Connector Layout	Termination	Contact Finish	Material Flammability Rating	Number of Positions	Current Rating (Amps)	Contact Type	Connector Type	Dielectric Material	Mounting Type	Shell Material, Finish	Flange Feature	Color
Amphenol ICC (Commercial Products) 6E17C015PBF121	3 Áin	0.076 Ám	Copper Alloy	8.08 mm	0.318 "	105 ░C	-55 °C	2	Board Lock Grounding Indents Shielded	D-Sub	2	Solder	Gold	UL94 V-0	15	5 A	Signal	Male Pins Plug	Glass Filled Nylon Polyamide (PA)	Through Hole Right Angle	Nickel Plated Steel	Housing/Shell (4-40)	Black
Amphenol ICC (Commercial Products) 6E17C015SCF120	15 µin	0.38 µm	Copper Alloy	8.08 mm	0.318 "	105 ░C	-55 °C	2	Board Lock Shielded	D-Sub	2	Solder	Gold	UL94 V-0	15	5 A	Signal	Receptacle Female Sockets	Glass Filled Nylon Polyamide (PA)	Through Hole Right Angle	Nickel Plated Steel	Housing/Shell (4-40)	Black
Amphenol ICC (Commercial Products) 6E17C015SAJ220	30 Áin	0.76 Ám	Copper Alloy	8.08 mm	0.318 "	105 ░C	-55 °C	2	Board Lock Shielded	D-Sub	2	Solder	Gold	UL94 V-0	15	5 A	Signal	Receptacle Female Sockets	Glass Filled Nylon Polyamide (PA)	Through Hole Right Angle	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Black
Amphenol ICC (Commercial Products) 6E17C-015S-AJ-120	30 Áin	0.76 Ám	Copper Alloy	8.08 mm	0.318 "	105 ░C	-55 °C	2	Board Lock Shielded	D-Sub	2	Solder	Gold	UL94 V-0	15	5 A	Signal	Receptacle Female Sockets	Glass Filled Nylon Polyamide (PA)	Through Hole Right Angle	Nickel Plated Steel	Housing/Shell (4-40)	Black
Amphenol ICC (Commercial Products) 6E17C-015P-AJ-121	30 Áin	0.76 Ám	Copper Alloy	8.08 mm	0.318 "	105 ░C	-55 °C	2	Board Lock Grounding Indents Shielded	D-Sub	2	Solder	Gold	UL94 V-0	15	5 A	Signal	Male Pins Plug	Glass Filled Nylon Polyamide (PA)	Through Hole Right Angle	Nickel Plated Steel	Housing/Shell (4-40)	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.56
		10	$ 6.84
		25	$ 6.46
		70	$ 6.30
		140	$ 5.99
		280	$ 5.36
		490	$ 5.04
		560	$ 4.41
		980	$ 4.41
		1050	$ 4.21
		2520	$ 3.96

Description

General part information

6E17C015 Series

15 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

No documents available
