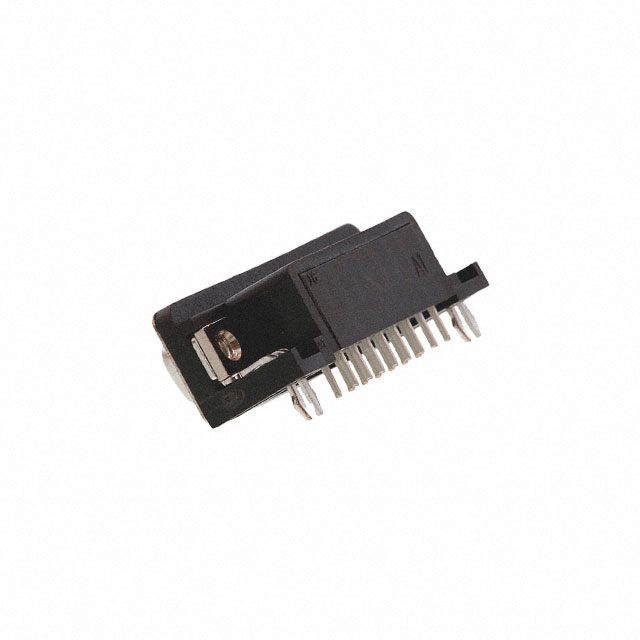

6E17C-015S-AJ-120
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 15POS R/A SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
6E17C-015S-AJ-120
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 15POS R/A SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6E17C-015S-AJ-120 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Glass Filled, Polyamide (PA), Nylon |
| Features | Shielded, Board Lock |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.89 | |
| 10 | $ 5.85 | |||
| 25 | $ 5.49 | |||
| 50 | $ 5.22 | |||
| 100 | $ 4.97 | |||
| 250 | $ 4.66 | |||
| 450 | $ 5.04 | |||
| 500 | $ 4.44 | |||
| 950 | $ 4.41 | |||
| 1000 | $ 4.23 | |||
| 2500 | $ 3.96 | |||
Description
General part information
6E17C015 Series
15 Position D-Sub Receptacle, Female Sockets Connector
