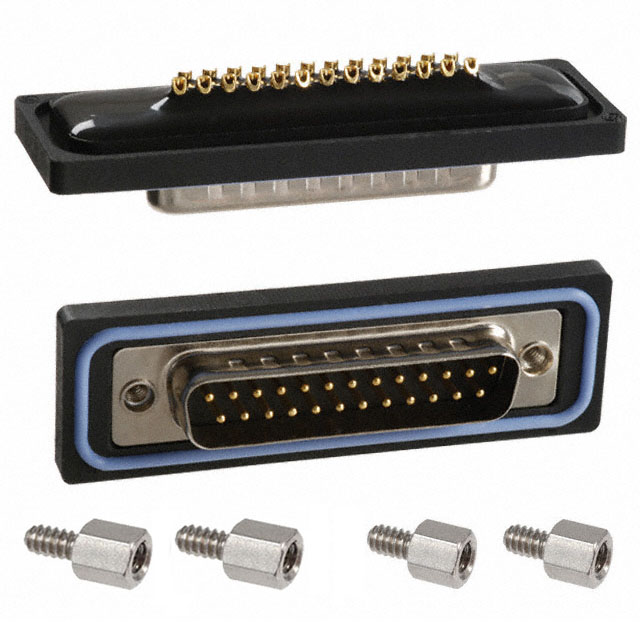

A-DS 25 LL-WP
ActiveAssmann WSW Components
CONN D-SUB PLUG 25POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A-DS 25 LL-WP |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Features | Grounding Indents |
| Flange Feature | Female Screwlock, Mating Side |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Number of Rows | 2 |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 15.58 | |
| 20 | $ 13.81 | |||
| 40 | $ 12.75 | |||
| 80 | $ 12.04 | |||
| 240 | $ 10.98 | |||
| 440 | $ 10.27 | |||
| 960 | $ 9.42 | |||
Description
General part information
A-DS 25 Series
25 Position D-Sub Plug, Male Pins Connector
