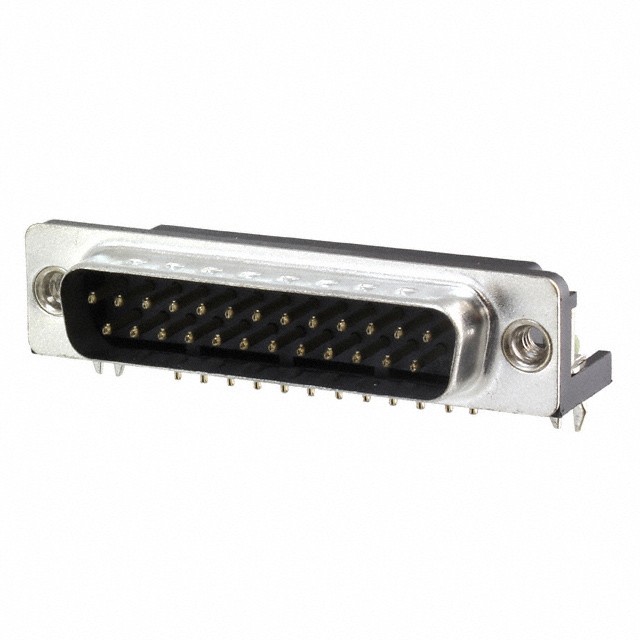

A-DS 25 A/KG-T4S

Active

Assmann WSW Components

CONN D-SUB PLUG 25POS R/A SLDR

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN D-SUB PLUG 25POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	A-DS 25 A/KG-T4S

Backset Spacing	0.319 in
Backset Spacing	8.1 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Type	Color	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Flange Feature	Ingress Protection	Connector Type	Termination	Connector Style	Features	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Current Rating (Amps)	Contact Finish Thickness	Backset Spacing	Backset Spacing	Voltage Rating	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating
Assmann WSW Components A-DS 25 PP-WP	Signal	Black	Panel Mount Through Hole	B DB	3	2	Female Screwlock Mating Side	IP68 - Dust Tight Waterproof	Male Pins Plug	Solder	D-Sub	Grounding Indents
Assmann WSW Components A-DS 25 LL-WP	Signal	Black		B DB	3	2	Female Screwlock Mating Side	IP68 - Dust Tight Waterproof	Male Pins Plug		D-Sub	Grounding Indents	Gold	22 AWG	26 AWG	Copper Alloy
Assmann WSW Components A-DS 25 A/KG-T4S	Signal	Black	Through Hole Right Angle	B DB	3	2	Housing/Shell (4-40)		Male Pins Plug	Solder	D-Sub	Board Lock Grounding Indents	Gold			Brass	3 A	Flash	0.319 in	8.1 mm	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector
