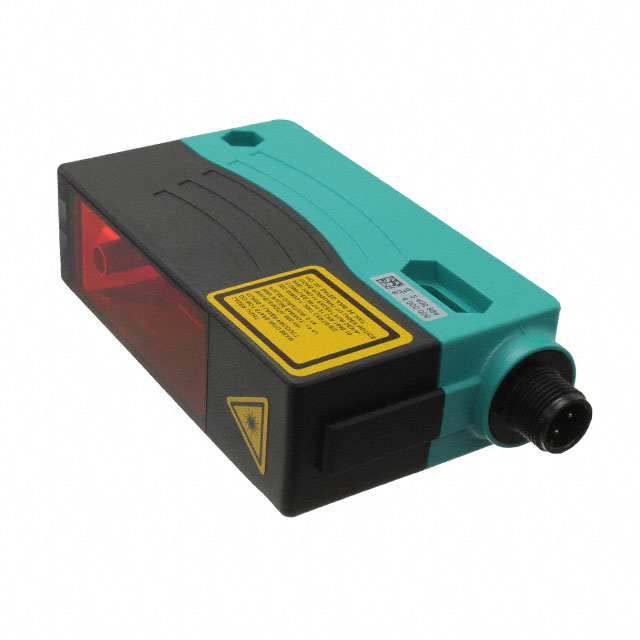

VDM28-8-L-IO/73C/110/122

Obsolete

PEPPERL+FUCHS

PHOTOELECTRIC SENSOR, VDM SERIES, 8 M, LASER, PUSH PULL, 10 VDC TO 30 VDC, M12 CONNECTOR

Search across all available documentation for this part.

Obsolete

PEPPERL+FUCHS

PHOTOELECTRIC SENSOR, VDM SERIES, 8 M, LASER, PUSH PULL, 10 VDC TO 30 VDC, M12 CONNECTOR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 581.16

General part information

Distance-Settable (BGS) Optical Sensor 7.874" ~ 314.961" (200mm ~ 8m) Analog

Technical documentation and resources

Part	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source	Connection Method	Response Time	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Ingress Protection
PEPPERL+FUCHS VDM28-15-L-IO/73C/110/122	Distance-Settable (BGS)	30 VDC	10 VDC	Red Laser Diode (660nm)	Connector, M12	10 ms	7.874 "	590.551 in	20 cm	15 m	50 °C	-30 ░C	Analog	IP65
PEPPERL+FUCHS VDM28-50-R-IO/73C/110/122	Distance-Settable (BGS)	30 VDC	10 VDC	Red Laser Diode (660nm)	Connector, M12	10 ms	7.874 "	1968.504 "	20 cm	50 m	50 °C	-30 ░C	Analog	IP65
PEPPERL+FUCHS VDM28-8-L-IO/73C/136	Distance-Settable (BGS)	30 VDC	10 VDC	Red Laser Diode (660nm)	Connector, M12	10 ms	7.874 "	314.961 in	20 cm	8 m	50 °C	-30 ░C		IP65
PEPPERL+FUCHS VDM28-8-L-IO/73C/110/122	Distance-Settable (BGS)	30 VDC	10 VDC	Red Laser Diode (660nm)	Connector, M12	10 ms	7.874 "	314.961 in	20 cm	8 m	50 °C	-30 ░C	Analog	IP65
