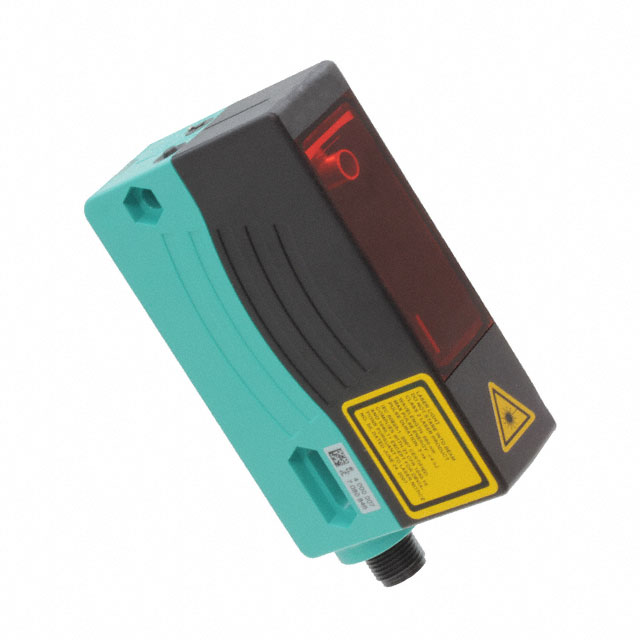

VDM28-50-R-IO/73C/110/122

Obsolete

PEPPERL+FUCHS

PHOTOELECTRIC SENSOR SYSTEMS

Search across all available documentation for this part.

Obsolete

PEPPERL+FUCHS

PHOTOELECTRIC SENSOR SYSTEMS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Distance-Settable (BGS) Optical Sensor 7.874" ~ 1968.504" (200mm ~ 50m) Analog

Technical documentation and resources

Parameters and characteristics commom to parts in this series

PHOTO DISTANCE SEN 0.2-15M

Part	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source	Connection Method	Response Time	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Ingress Protection
PEPPERL+FUCHS VDM28-15-L-IO/73C/110/122	Distance-Settable (BGS)	30 VDC	10 VDC	Red Laser Diode (660nm)	Connector, M12	10 ms	7.874 "	590.551 in	20 cm	15 m	50 °C	-30 ░C	Analog	IP65
PEPPERL+FUCHS VDM28-50-R-IO/73C/110/122	Distance-Settable (BGS)	30 VDC	10 VDC	Red Laser Diode (660nm)	Connector, M12	10 ms	7.874 "	1968.504 "	20 cm	50 m	50 °C	-30 ░C	Analog	IP65
PEPPERL+FUCHS VDM28-8-L-IO/73C/136	Distance-Settable (BGS)	30 VDC	10 VDC	Red Laser Diode (660nm)	Connector, M12	10 ms	7.874 "	314.961 in	20 cm	8 m	50 °C	-30 ░C		IP65
PEPPERL+FUCHS VDM28-8-L-IO/73C/110/122	Distance-Settable (BGS)	30 VDC	10 VDC	Red Laser Diode (660nm)	Connector, M12	10 ms	7.874 "	314.961 in	20 cm	8 m	50 °C	-30 ░C	Analog	IP65
