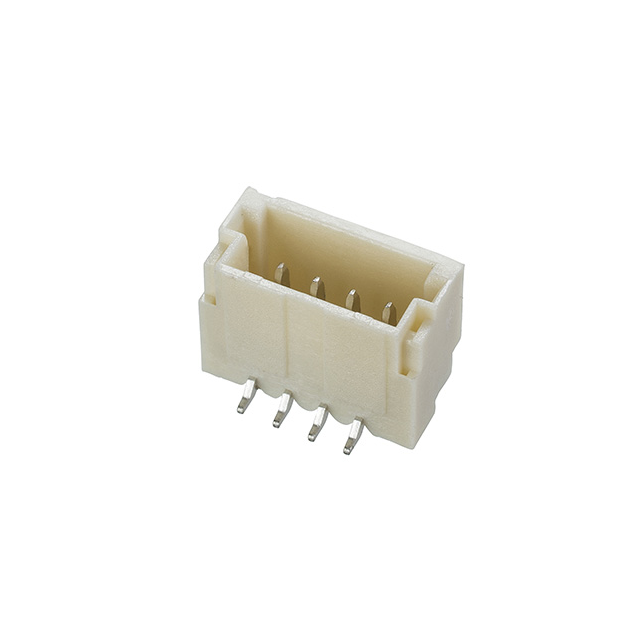

M40-3010546R

Obsolete

Harwin Inc.

CONN HDR 1MM 5POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M40-3010546R

Obsolete

Harwin Inc.

CONN HDR 1MM 5POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M40-3010546R

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Cream
Insulation Height	0.167 in
Insulation Height	4.25 mm
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free
Mated Stacking Heights	7.7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

M40-301 Series

Part	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Shape	Number of Positions	Material Flammability Rating	Termination	Insulation Height	Insulation Height	Mounting Type	Shrouding	Style	Number of Rows	Number of Positions Loaded	Insulation Material	Fastening Type	Contact Material	Features	Contact Type	Insulation Color	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mated Stacking Heights
Harwin Inc. M40-3010246R	50 VAC	0.039 in	1 mm	Rectangular	2	UL94 V-0	Solder	0.171 in	4.35 mm	Surface Mount	Shrouded - 4 Wall	Board to Board Cable	1	All	Liquid Crystal Polymer (LCP)	Detent Lock	Copper Alloy	Pick and Place Solder Retention	Male Pin	Natural	Tin	-25 °C	85 °C	Header
Harwin Inc. M40-3010646	50 V	0.039 in	1 mm	Rectangular	6	UL94 V-0	Solder	0.169 "	4.3 mm	Surface Mount	Shrouded - 4 Wall	Board to Cable/Wire	1	All	Nylon 9T Polyamide (PA9T)	Detent Lock	Phosphor Bronze	Pick and Place Solder Retention	Male Pin	Natural	Tin	-25 °C	85 °C	Header
Harwin Inc. M40-3010346R	50 VAC	0.039 in	1 mm	Rectangular		UL94 V-0	Solder	0.171 in	4.35 mm	Surface Mount	Shrouded - 4 Wall	Board to Board Cable	1	All	Liquid Crystal Polymer (LCP)	Detent Lock	Copper Alloy	Pick and Place Solder Retention	Male Pin	Natural	Tin	-25 °C	85 °C	Header
Harwin Inc. M40-3010846R	50 VAC	0.039 in	1 mm	Rectangular	8	UL94 V-0	Solder	0.171 in	4.35 mm	Surface Mount	Shrouded - 4 Wall	Board to Board Cable	1	All	Liquid Crystal Polymer (LCP)	Detent Lock	Copper Alloy	Pick and Place Solder Retention	Male Pin	Natural	Tin	-25 °C	85 °C	Header
Harwin Inc. M40-3011446	50 V	0.039 in	1 mm	Rectangular	14	UL94 V-0	Solder	0.169 "	4.3 mm	Surface Mount	Shrouded - 4 Wall	Board to Cable/Wire	1	All	Nylon 9T Polyamide (PA9T)	Detent Lock	Phosphor Bronze	Pick and Place Solder Retention	Male Pin	Natural	Tin	-25 °C	85 °C	Header
Harwin Inc. M40-3011546	50 V	0.039 in	1 mm	Rectangular	15	UL94 V-0	Solder	0.169 "	4.3 mm	Surface Mount	Shrouded - 4 Wall	Board to Cable/Wire	1	All	Nylon 9T Polyamide (PA9T)	Detent Lock	Phosphor Bronze	Pick and Place Solder Retention	Male Pin	Natural	Tin	-25 °C	85 °C	Header
Harwin Inc. M40-3011346	50 V	0.039 in	1 mm	Rectangular	13	UL94 V-0	Solder	0.169 "	4.3 mm	Surface Mount	Shrouded - 4 Wall	Board to Cable/Wire	1	All	Nylon 9T Polyamide (PA9T)	Detent Lock	Phosphor Bronze	Pick and Place Solder Retention	Male Pin	Natural	Tin	-25 °C	85 °C	Header
Harwin Inc. M40-3010546R	50 VAC	0.039 in	1 mm	Rectangular		UL94 V-0	Solder	0.167 in	4.25 mm	Surface Mount	Shrouded - 4 Wall	Board to Cable/Wire	1	All	Liquid Crystal Polymer (LCP) Halogen Free	Push-Pull	Copper Alloy	Pick and Place	Male Pin	Cream	Tin	-25 °C	85 °C	Header	7.7 mm
Harwin Inc. M40-3011046R	50 V	0.039 in	1 mm	Rectangular	10	UL94 V-0	Solder	0.169 "	4.3 mm	Surface Mount	Shrouded - 4 Wall	Board to Cable/Wire	1	All	Nylon 9T Polyamide (PA9T)	Detent Lock	Phosphor Bronze	Pick and Place Solder Retention	Male Pin	Natural	Tin	-25 °C	85 °C	Header
Harwin Inc. M40-3010646R	50 VAC	0.039 in	1 mm	Rectangular	6	UL94 V-0	Solder	0.171 in	4.35 mm	Surface Mount	Shrouded - 4 Wall	Board to Board Cable	1	All	Liquid Crystal Polymer (LCP)	Detent Lock	Copper Alloy	Pick and Place Solder Retention	Male Pin	Natural	Tin	-25 °C	85 °C	Header

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M40-301 Series

Connector Header Surface Mount 5 position 0.039" (1.00mm)
