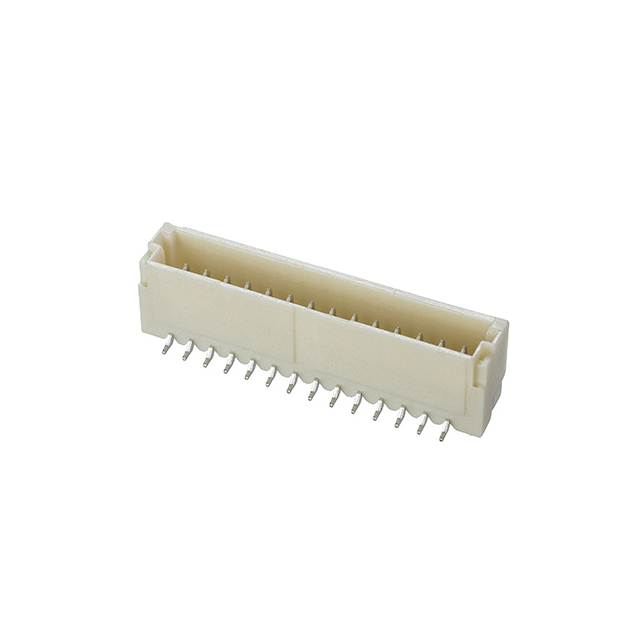

Specification	M40-3011346

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating	1 A
Fastening Type	Detent Lock
Features	Solder Retention, Pick and Place
Insulation Color	Natural
Insulation Height	0.169 in
Insulation Material	Nylon 9T, Polyamide (PA9T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.039 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	50 V

M40-301 Series

Part	Number of Positions Loaded	Fastening Type	Contact Shape	Termination	Insulation Height	Contact Finish - Post	Pitch - Mating	Insulation Material	Number of Rows	Number of Positions	Features	Mounting Type	Material Flammability Rating	Contact Type	Connector Type	Voltage Rating	Voltage Rating (Type)	Contact Material	Shrouding	Style	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Contact Finish - Mating	Insulation Color	Mated Stacking Height
Harwin Inc. M40-3010246R	All	Detent Lock	Rectangular	Solder	0.171 in	Tin	0.039 in	Liquid Crystal Polymer (LCP)	1	2	Pick and Place Solder Retention	Surface Mount	UL94 V-0	Male Pin	Header	50 V	DC	Copper Alloy	Shrouded - 4 Wall	Board Board or Cable	85 °C	-25 °C	1 A	Tin	Natural
Harwin Inc. M40-3010646	All	Detent Lock	Rectangular	Solder	0.169 in	Tin	0.039 in	Nylon 9T Polyamide (PA9T)	1	6	Pick and Place Solder Retention	Surface Mount	UL94 V-0	Male Pin	Header	50 V		Phosphor Bronze	Shrouded - 4 Wall	Board Cable/Wire	85 °C	-25 °C	1 A	Tin	Natural
Harwin Inc. M40-3010346R	All	Detent Lock	Rectangular	Solder	0.171 in	Tin	0.039 in	Liquid Crystal Polymer (LCP)	1	3	Pick and Place Solder Retention	Surface Mount	UL94 V-0	Male Pin	Header	50 V	DC	Copper Alloy	Shrouded - 4 Wall	Board Board or Cable	85 °C	-25 °C	1 A	Tin	Natural
Harwin Inc. M40-3011246R	All	Detent Lock	Rectangular	Solder	0.171 in	Tin	0.039 in	Liquid Crystal Polymer (LCP)	1	12	Pick and Place Solder Retention	Surface Mount	UL94 V-0	Male Pin	Header	50 V	DC	Copper Alloy	Shrouded - 4 Wall	Board Board or Cable	85 °C	-25 °C	1 A	Tin	Natural
Harwin Inc. M40-3010846R	All	Detent Lock	Rectangular	Solder	0.171 in	Tin	0.039 in	Liquid Crystal Polymer (LCP)	1	8	Pick and Place Solder Retention	Surface Mount	UL94 V-0	Male Pin	Header	50 V	DC	Copper Alloy	Shrouded - 4 Wall	Board Board or Cable	85 °C	-25 °C	1 A	Tin	Natural
Harwin Inc. M40-3011446	All	Detent Lock	Rectangular	Solder	0.169 in	Tin	0.039 in	Nylon 9T Polyamide (PA9T)	1	14	Pick and Place Solder Retention	Surface Mount	UL94 V-0	Male Pin	Header	50 V		Phosphor Bronze	Shrouded - 4 Wall	Board Cable/Wire	85 °C	-25 °C	1 A	Tin	Natural
Harwin Inc. M40-3011546	All	Detent Lock	Rectangular	Solder	0.169 in	Tin	0.039 in	Nylon 9T Polyamide (PA9T)	1	15	Pick and Place Solder Retention	Surface Mount	UL94 V-0	Male Pin	Header	50 V		Phosphor Bronze	Shrouded - 4 Wall	Board Cable/Wire	85 °C	-25 °C	1 A	Tin	Natural
Harwin Inc. M40-3010346	All	Detent Lock	Rectangular	Solder	0.169 in	Tin	0.039 in	Nylon 9T Polyamide (PA9T)	1	3	Pick and Place Solder Retention	Surface Mount	UL94 V-0	Male Pin	Header	50 V		Phosphor Bronze	Shrouded - 4 Wall	Board Cable/Wire	85 °C	-25 °C	1 A	Tin	Natural
Harwin Inc. M40-3011346	All	Detent Lock	Rectangular	Solder	0.169 in	Tin	0.039 in	Nylon 9T Polyamide (PA9T)	1	13	Pick and Place Solder Retention	Surface Mount	UL94 V-0	Male Pin	Header	50 V		Phosphor Bronze	Shrouded - 4 Wall	Board Cable/Wire	85 °C	-25 °C	1 A	Tin	Natural
Harwin Inc. M40-3010546R	All	Push-Pull	Rectangular	Solder	0.167 in	Tin	0.039 in	Halogen Free Liquid Crystal Polymer (LCP)	1	5	Pick and Place	Surface Mount	UL94 V-0	Male Pin	Header	50 V	DC	Copper Alloy	Shrouded - 4 Wall	Board Cable/Wire	85 °C	-25 °C	1 A	Tin	Cream	7.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

M40-3011346 | Datasheet
