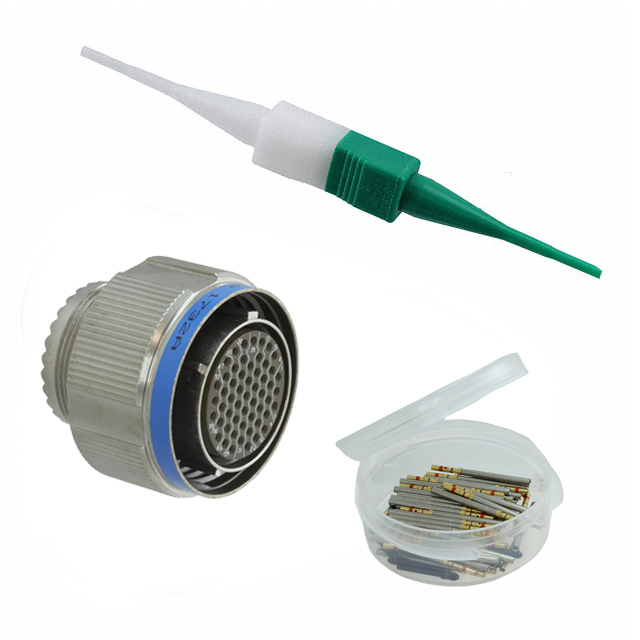

D38999/26FE35SN

Active

TE Connectivity Raychem Cable Protection

CONN PLUG FMALE 55POS GOLD CRIMP

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN PLUG FMALE 55POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26FE35SN

Applications	Industrial, Aviation, Communication Systems, Military
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Self Locking
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	55 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	17
Shell Size, MIL	E
Shielding	Shielded
Termination	Crimp

Part	Primary Material	Mounting Type	Orientation	Contact Finish - Mating	Shell Size, MIL	Shell Size - Insert	Shielding	Contact Material	Grade	Features	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Applications	Ingress Protection	Shell Finish	Color	Qualification	Number of Positions	Current Rating (Amps)	Termination	Shell Size - Insert [Min]	Shell Size - Insert [Max]
TE Connectivity Raychem Cable Protection D38999/26FE6PN	Metal	Free Hanging (In-Line)	N	Gold	E	17-6	Shielded	Copper Alloy	Military	Self Locking	Aluminum	1.27 µm	50 µin	Thermoplastic	-65 ░C	200 °C	Male Pins Plug	Aviation Communication Systems Industrial Military	Environment Resistant	Nickel	Silver	MIL-DTL-38999 Series III	6	23 A	Crimp
TE Connectivity Raychem Cable Protection D38999/26FE35SN	Metal	Free Hanging (In-Line)	N	Gold	E		Shielded	Copper Alloy	Military	Self Locking	Aluminum	1.27 µm	50 µin	Thermoplastic	-65 ░C	200 °C	Female Sockets Plug	Aviation Communication Systems Industrial Military	Environment Resistant	Nickel	Silver	MIL-DTL-38999 Series III	55 positions	5 A	Crimp	17	35
TE Connectivity Raychem Cable Protection D38999/26FE6SN	Metal	Free Hanging (In-Line)	N	Gold	E	17-6	Shielded	Copper Alloy	Military	Self Locking	Aluminum	1.27 µm	50 µin	Thermoplastic	-65 ░C	200 °C	Female Sockets Plug	Aviation Communication Systems Industrial Military	Environment Resistant	Nickel	Silver	MIL-DTL-38999 Series III	6	23 A	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

55 Position Circular Connector Plug, Female Sockets Crimp
