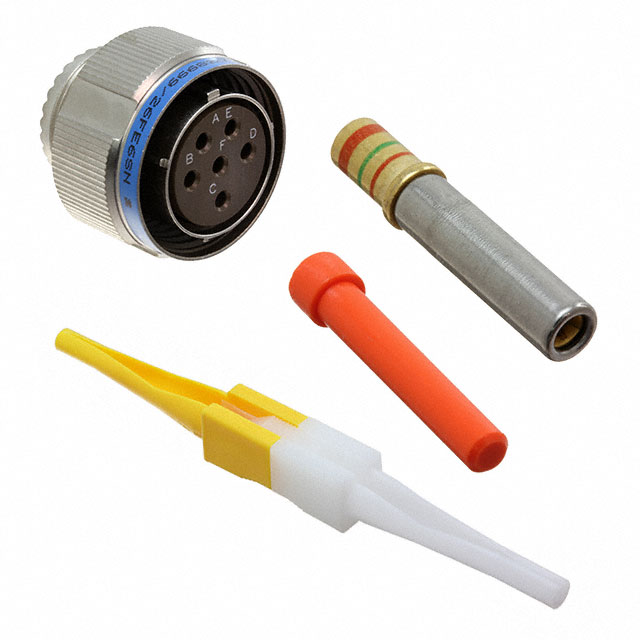

D38999/26FE6SN
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG FMALE 6POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
D38999/26FE6SN
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG FMALE 6POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/26FE6SN |
|---|---|
| Applications | Industrial, Aviation, Communication Systems, Military |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 23 A |
| Features | Self Locking |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert | 17-6 |
| Shell Size, MIL | E |
| Shielding | Shielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 61.07 | |
| 10 | $ 59.09 | |||
| 25 | $ 57.25 | |||
| 50 | $ 56.36 | |||
| 100 | $ 53.10 | |||
| 250 | $ 52.33 | |||
| 500 | $ 50.19 | |||
| 1000 | $ 48.85 | |||
| Box | 1 | $ 115.35 | ||
| 10 | $ 93.72 | |||
| 25 | $ 78.93 | |||
| 50 | $ 68.16 | |||
| 100 | $ 57.68 | |||
| Bulk | 1 | $ 278.67 | ||
| 1 | $ 2808.12 | |||
| 1 | $ 111.12 | |||
| 10 | $ 263.70 | |||
Description
General part information
D38999/26FE Series
6 Position Circular Connector Plug, Female Sockets Crimp
