M80-5C12005M3

Active

Harwin Inc.

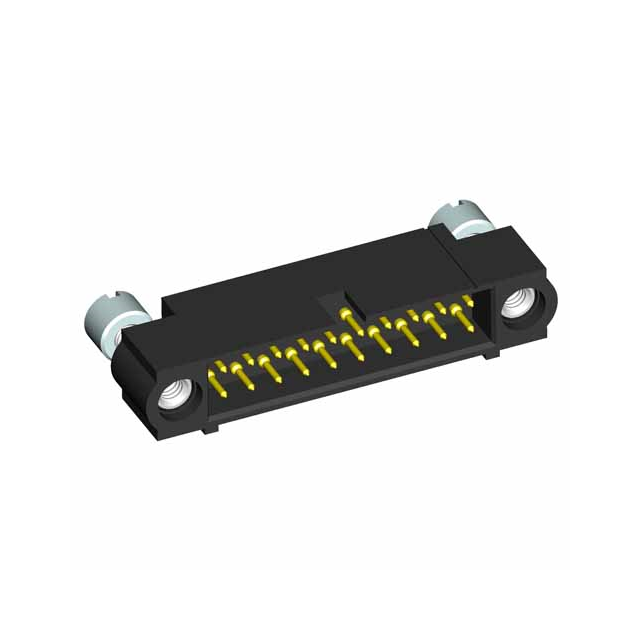

10+10 POS. MALE DIL 24-28AWG CABLE CONN. KIT, PANEL MOUNT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

10+10 POS. MALE DIL 24-28AWG CABLE CONN. KIT, PANEL MOUNT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Pitch [x]	Pitch [x]	Number of Positions	Connector Type	Contact Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Cable Termination	Color	Wire Type	Row Spacing	Row Spacing
Harwin Inc. M80-5C10605M3-02-339-00-000	10 Áin	0.25 Ám	1	Jackscrews	4 mm	0.157 in	8	Plug	Coaxial Male Pin	17.5 AWG	20 AWG	Gold	Crimp	Black	Coaxial
Harwin Inc. M80-5C12005M3	10 Áin	0.25 Ám	2	Jackscrews	2 mm	0.079 in	20	Header	Male Pin	24 AWG	28 AWG	Gold	Crimp	Black	Discrete	2 mm	0.079 in
Harwin Inc. M80-5C13605MU			2	Mounting Flange	2 mm	0.079 in	36	Plug	Male Pin	24 AWG	28 AWG	Gold	Crimp	Black	Discrete	2 mm	0.079 in
Harwin Inc. M80-5C12605M2	10 Áin	0.25 Ám	2	Jackscrews Polarizing Key	2 mm	0.079 in	26	Header	Male Pin	24 AWG	28 AWG	Gold	Crimp	Black	Discrete	2 mm	0.079 in
Harwin Inc. M80-5C12005M2	10 Áin	0.25 Ám	2	Jackscrews Polarizing Key	2 mm	0.079 in	20	Header	Male Pin	24 AWG	28 AWG	Gold	Crimp	Black	Discrete	2 mm	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Rectangular Header Connector Crimp Gold 24-28 AWG
