M80-5C10605M3-02-339-00-000

Active

Harwin Inc.

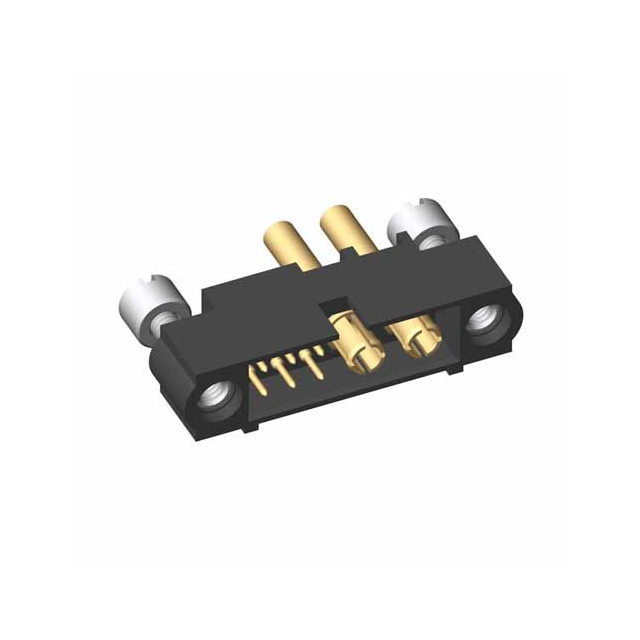

6+2 POS. MALE 24-28AWG+20AWG CABLE CONN. KIT, PANEL MOUNT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

6+2 POS. MALE 24-28AWG+20AWG CABLE CONN. KIT, PANEL MOUNT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Pitch [x]	Pitch [x]	Number of Positions	Connector Type	Contact Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Cable Termination	Color	Wire Type	Row Spacing	Row Spacing
Harwin Inc. M80-5C10605M3-02-339-00-000	10 Áin	0.25 Ám	1	Jackscrews	4 mm	0.157 in	8	Plug	Coaxial Male Pin	17.5 AWG	20 AWG	Gold	Crimp	Black	Coaxial
Harwin Inc. M80-5C12005M3	10 Áin	0.25 Ám	2	Jackscrews	2 mm	0.079 in	20	Header	Male Pin	24 AWG	28 AWG	Gold	Crimp	Black	Discrete	2 mm	0.079 in
Harwin Inc. M80-5C13605MU			2	Mounting Flange	2 mm	0.079 in	36	Plug	Male Pin	24 AWG	28 AWG	Gold	Crimp	Black	Discrete	2 mm	0.079 in
Harwin Inc. M80-5C12605M2	10 Áin	0.25 Ám	2	Jackscrews Polarizing Key	2 mm	0.079 in	26	Header	Male Pin	24 AWG	28 AWG	Gold	Crimp	Black	Discrete	2 mm	0.079 in
Harwin Inc. M80-5C12005M2	10 Áin	0.25 Ám	2	Jackscrews Polarizing Key	2 mm	0.079 in	20	Header	Male Pin	24 AWG	28 AWG	Gold	Crimp	Black	Discrete	2 mm	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Rectangular Plug Connector Crimp Gold 18-20 AWG
