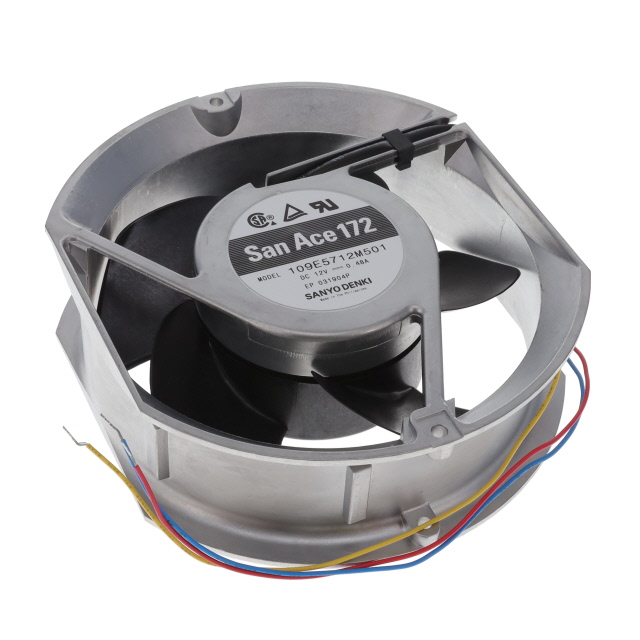

109E5712M501

Active

Sanyo Denki America Inc.

FAN AXIAL 172X51MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

109E5712M501

Active

Sanyo Denki America Inc.

FAN AXIAL 172X51MM 12VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 112.61
		10	$ 100.39
		25	$ 95.90
		50	$ 92.64
		100	$ 89.48

Description

General part information

109E5712 Series

Fan Tubeaxial 12VDC Rectangular/Rounded - 172mm L x 150mm H Ball 148.0 CFM (4.14m³/min) 3 Wire Leads

Documents

Technical documentation and resources

Rotor Balancing

Handling Instructions for Fan Motors

Numbering System DC Fan

Related Document

Specification	109E5712M501	109E5712 Series

Air Flow	4.14 mł/min	4.14 - 8.4 mł/min
Air Flow	148 CFM	148 - 300 CFM
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	480 mA	0.68 - 480 A
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection	Speed Sensor (Tach), Locked Rotor Protection, PWM Control, Locked Rotor Sensor
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Aluminum	Aluminum
Noise	41 dB	41 - 60 dB
Operating Temperature [Max]	70 °C	60 - 70 °C
Operating Temperature [Max]	70 °C	60 - 70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	-	8.16 - 34.8 W
RPM	2000 RPM	2000 - 4100 RPM
Size / Dimension	Rectangular/Rounded	Rectangular/Rounded
Size / Dimension [x]	172 mm	172 mm
Size / Dimension [z]	150 mm	150 mm
Static Pressure	0.271 in H2O	0.271 - 0.976 in H2O
Static Pressure	67.6 Pa	67.6 - 243 Pa
Termination	3 Wire Leads	3 Wire Leads, 4 Wire Leads, 2 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.8 VDC	13.8 VDC
Voltage Range [Min]	10.2 VDC	10.2 VDC
Weight	760 g	760 g
Weight	1.7 lbs	1.7 lbs
Width [y]	51 mm	51 mm

Part

Noise

Material - Blade

Size / Dimension

Size / Dimension [z]

Size / Dimension [x]

Material - Frame

Voltage - Rated

Termination

RPM

Power (Watts)

Bearing Type

Width [y]

Weight

Voltage Range [Min]

Voltage Range [Max]

Features

Air Flow

Static Pressure

Current Rating (Amps)

Lifetime @ Temp.

Fan Type

Operating Temperature [Min]

Operating Temperature [Max]

Operating Temperature [Min]

Operating Temperature [Max]

Approval Agency

Sanyo Denki America Inc.

109E5712F501

47 dB

Plastic

Rectangular/Rounded

150 mm

172 mm

Aluminum

12 VDC

3 Wire Leads

2500 RPM

8.16 W

Ball

51 mm

760 g

1.7 lbs

10.2 VDC

13.8 VDC

Locked Rotor Protection, Speed Sensor (Tach)

5.04 mł/min

180 CFM

94.6 Pa

0.38 in H2O

0.68 A

40000 Hrs

Tubeaxial

-20 °C

70 °C

-20 C

70 °C

CSA, TUV, UL

Sanyo Denki America Inc.

109E5712P5K04

60 dB(A)

Plastic

Rectangular/Rounded

150 mm

172 mm

Aluminum

12 VDC

4 Wire Leads

4100 RPM

34.8 W

Ball

51 mm

760 g

1.7 lbs

10.2 VDC

13.8 VDC

PWM Control, Speed Sensor (Tach)

8.4 mł/min

300 CFM

243 Pa

0.976 in H2O

2.9 A

40000 Hrs

Tubeaxial

-20 °C

60 °C

-20 C

60 °C

CSA, TUV, UL

Sanyo Denki America Inc.

109E5712F502

47 dB

Plastic

Rectangular/Rounded

150 mm

172 mm

Aluminum

12 VDC

2 Wire Leads

2500 RPM

8.16 W

Ball

51 mm

760 g

1.7 lbs

10.2 VDC

13.8 VDC

5.04 mł/min

180 CFM

94.6 Pa

0.38 in H2O

0.68 A

40000 Hrs

Tubeaxial

-20 °C

70 °C

-20 C

70 °C

CSA, TUV, UL

Sanyo Denki America Inc.

109E5712H5D01

52 dB

Plastic

Rectangular/Rounded

150 mm

172 mm

Aluminum

12 VDC

3 Wire Leads

14.4 W

Ball

51 mm

760 g

1.7 lbs

10.2 VDC

13.8 VDC

Locked Rotor Sensor

6.33 m³/min

226 CFM

137.2 Pa

0.551 in H2O

1.2 A

40000 Hrs

Tubeaxial

-20 °C

70 °C

-20 C

70 °C

CSA, TUV, UL

Sanyo Denki America Inc.

109E5712K502

60 dB(A)

Plastic

Rectangular/Rounded

150 mm

172 mm

Aluminum

12 VDC

2 Wire Leads

4100 RPM

34.8 W

Ball

51 mm

760 g

1.7 lbs

10.2 VDC

13.8 VDC

8.4 mł/min

300 CFM

243 Pa

0.976 in H2O

2.9 A

40000 Hrs

Tubeaxial

-20 °C

60 °C

-20 C

60 °C

CSA, TUV, UL

Sanyo Denki America Inc.

109E5712Y502

60 dB(A)

Plastic

Rectangular/Rounded

150 mm

172 mm

Aluminum

12 VDC

2 Wire Leads

3800 RPM

27.6 W

Ball

51 mm

760 g

1.7 lbs

10.2 VDC

13.8 VDC

7.9 m³/min

282 CFM

209.2 Pa

0.84 in H2O

2.3 A

40000 Hrs

Tubeaxial

-20 °C

60 °C

-20 C

60 °C

CSA, TUV, UL

Sanyo Denki America Inc.

109E5712M501

41 dB

Plastic

Rectangular/Rounded

150 mm

172 mm

Aluminum

12 VDC

3 Wire Leads

2000 RPM

Ball

51 mm

760 g

1.7 lbs

10.2 VDC

13.8 VDC

Locked Rotor Protection, Speed Sensor (Tach)

4.14 mł/min

148 CFM

67.6 Pa

0.271 in H2O

480 mA

40000 Hrs

Tubeaxial

-20 °C

70 °C

-20 C

70 °C

CSA, TUV, UL

Sanyo Denki America Inc.

109E5712K501

60 dB(A)

Plastic

Rectangular/Rounded

150 mm

172 mm

Aluminum

12 VDC

3 Wire Leads

4100 RPM

34.8 W

Ball

51 mm

760 g

1.7 lbs

10.2 VDC

13.8 VDC

Locked Rotor Protection, Speed Sensor (Tach)

8.4 mł/min

300 CFM

243 Pa

0.976 in H2O

2.9 A

40000 Hrs

Tubeaxial

-20 °C

60 °C

-20 C

60 °C

CSA, TUV, UL

Sanyo Denki America Inc.

109E5712M502

41 dB

Plastic

Rectangular/Rounded

150 mm

172 mm

Aluminum

12 VDC

2 Wire Leads

2000 RPM

Ball

51 mm

760 g

1.7 lbs

10.2 VDC

13.8 VDC

4.14 mł/min

148 CFM

67.6 Pa

0.271 in H2O

480 mA

40000 Hrs

Tubeaxial

-20 °C

70 °C

-20 C

70 °C

CSA, TUV, UL

Part	Noise	Material - Blade	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Material - Frame	Voltage - Rated	Termination	RPM	Power (Watts)	Bearing Type	Width [y]	Weight	Weight	Voltage Range [Min]	Voltage Range [Max]	Features	Air Flow	Air Flow	Static Pressure	Static Pressure	Current Rating (Amps)	Lifetime @ Temp.	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency
Sanyo Denki America Inc. 109E5712F501	47 dB	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	3 Wire Leads	2500 RPM	8.16 W	Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC	Locked Rotor Protection, Speed Sensor (Tach)	5.04 mł/min	180 CFM	94.6 Pa	0.38 in H2O	0.68 A	40000 Hrs	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712P5K04	60 dB(A)	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	4 Wire Leads	4100 RPM	34.8 W	Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC	PWM Control, Speed Sensor (Tach)	8.4 mł/min	300 CFM	243 Pa	0.976 in H2O	2.9 A	40000 Hrs	Tubeaxial	-20 °C	60 °C	-20 C	60 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712F502	47 dB	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	2 Wire Leads	2500 RPM	8.16 W	Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC		5.04 mł/min	180 CFM	94.6 Pa	0.38 in H2O	0.68 A	40000 Hrs	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712H5D01	52 dB	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	3 Wire Leads		14.4 W	Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC	Locked Rotor Sensor	6.33 m³/min	226 CFM	137.2 Pa	0.551 in H2O	1.2 A	40000 Hrs	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712K502	60 dB(A)	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	2 Wire Leads	4100 RPM	34.8 W	Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC		8.4 mł/min	300 CFM	243 Pa	0.976 in H2O	2.9 A	40000 Hrs	Tubeaxial	-20 °C	60 °C	-20 C	60 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712Y502	60 dB(A)	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	2 Wire Leads	3800 RPM	27.6 W	Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC		7.9 m³/min	282 CFM	209.2 Pa	0.84 in H2O	2.3 A	40000 Hrs	Tubeaxial	-20 °C	60 °C	-20 C	60 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712M501	41 dB	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	3 Wire Leads	2000 RPM		Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC	Locked Rotor Protection, Speed Sensor (Tach)	4.14 mł/min	148 CFM	67.6 Pa	0.271 in H2O	480 mA	40000 Hrs	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712K501	60 dB(A)	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	3 Wire Leads	4100 RPM	34.8 W	Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC	Locked Rotor Protection, Speed Sensor (Tach)	8.4 mł/min	300 CFM	243 Pa	0.976 in H2O	2.9 A	40000 Hrs	Tubeaxial	-20 °C	60 °C	-20 C	60 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712M502	41 dB	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	2 Wire Leads	2000 RPM		Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC		4.14 mł/min	148 CFM	67.6 Pa	0.271 in H2O	480 mA	40000 Hrs	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	CSA, TUV, UL
