109E5712K501

Active

Sanyo Denki America Inc.

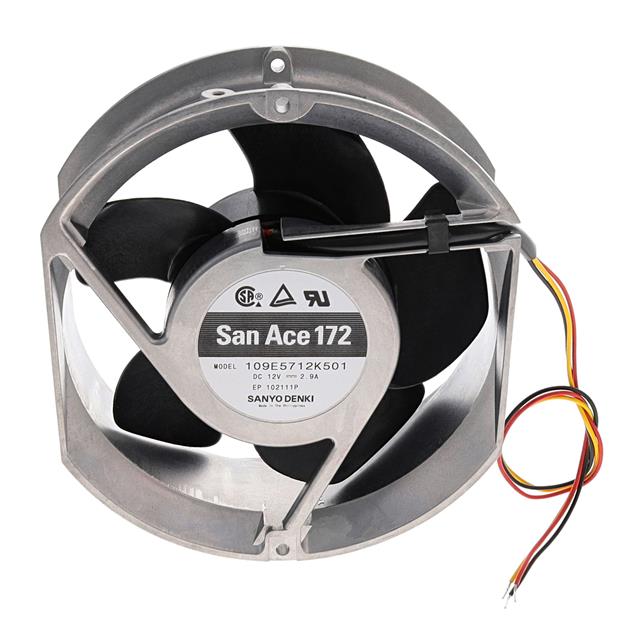

FAN AXIAL 172X51MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System DC Fan

109E5712K501

Active

Sanyo Denki America Inc.

FAN AXIAL 172X51MM 12VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System DC Fan

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 96.84
		10	$ 88.35
		16	$ 94.96
		32	$ 94.00

Description

General part information

109E5712 Series

Fan Tubeaxial 12VDC Rectangular/Rounded - 172mm L x 150mm H Ball 300.0 CFM (8.40m³/min) 3 Wire Leads

Documents

Technical documentation and resources

Rotor Balancing

Numbering System DC Fan

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	109E5712K501	109E5712 Series

Air Flow	8.4 mł/min	4.14 - 8.4 mł/min
Air Flow	300 CFM	148 - 300 CFM
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	2.9 A	0.68 - 480 A
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection	Speed Sensor (Tach), Locked Rotor Protection, PWM Control, Locked Rotor Sensor
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Aluminum	Aluminum
Noise	60 dB(A)	41 - 60 dB
Operating Temperature [Max]	60 °C	60 - 70 °C
Operating Temperature [Max]	60 °C	60 - 70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	34.8 W	8.16 - 34.8 W
RPM	4100 RPM	2000 - 4100 RPM
Size / Dimension	Rectangular/Rounded	Rectangular/Rounded
Size / Dimension [x]	172 mm	172 mm
Size / Dimension [z]	150 mm	150 mm
Static Pressure	0.976 in H2O	0.271 - 0.976 in H2O
Static Pressure	243 Pa	67.6 - 243 Pa
Termination	3 Wire Leads	3 Wire Leads, 4 Wire Leads, 2 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.8 VDC	13.8 VDC
Voltage Range [Min]	10.2 VDC	10.2 VDC
Weight	760 g	760 g
Weight	1.7 lbs	1.7 lbs
Width [y]	51 mm	51 mm

109E5712 Series

FAN AXIAL 172X51MM 12VDC WIRE

Part	Noise	Material - Blade	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Material - Frame	Voltage - Rated	Termination	RPM	Power (Watts)	Bearing Type	Width [y]	Weight	Weight	Voltage Range [Min]	Voltage Range [Max]	Features	Air Flow	Air Flow	Static Pressure	Static Pressure	Current Rating (Amps)	Lifetime @ Temp.	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency
Sanyo Denki America Inc. 109E5712F501	47 dB	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	3 Wire Leads	2500 RPM	8.16 W	Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC	Locked Rotor Protection, Speed Sensor (Tach)	5.04 mł/min	180 CFM	94.6 Pa	0.38 in H2O	0.68 A	40000 Hrs	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712P5K04	60 dB(A)	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	4 Wire Leads	4100 RPM	34.8 W	Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC	PWM Control, Speed Sensor (Tach)	8.4 mł/min	300 CFM	243 Pa	0.976 in H2O	2.9 A	40000 Hrs	Tubeaxial	-20 °C	60 °C	-20 C	60 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712F502	47 dB	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	2 Wire Leads	2500 RPM	8.16 W	Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC		5.04 mł/min	180 CFM	94.6 Pa	0.38 in H2O	0.68 A	40000 Hrs	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712H5D01	52 dB	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	3 Wire Leads		14.4 W	Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC	Locked Rotor Sensor	6.33 m³/min	226 CFM	137.2 Pa	0.551 in H2O	1.2 A	40000 Hrs	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712K502	60 dB(A)	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	2 Wire Leads	4100 RPM	34.8 W	Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC		8.4 mł/min	300 CFM	243 Pa	0.976 in H2O	2.9 A	40000 Hrs	Tubeaxial	-20 °C	60 °C	-20 C	60 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712Y502	60 dB(A)	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	2 Wire Leads	3800 RPM	27.6 W	Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC		7.9 m³/min	282 CFM	209.2 Pa	0.84 in H2O	2.3 A	40000 Hrs	Tubeaxial	-20 °C	60 °C	-20 C	60 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712M501	41 dB	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	3 Wire Leads	2000 RPM		Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC	Locked Rotor Protection, Speed Sensor (Tach)	4.14 mł/min	148 CFM	67.6 Pa	0.271 in H2O	480 mA	40000 Hrs	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712K501	60 dB(A)	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	3 Wire Leads	4100 RPM	34.8 W	Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC	Locked Rotor Protection, Speed Sensor (Tach)	8.4 mł/min	300 CFM	243 Pa	0.976 in H2O	2.9 A	40000 Hrs	Tubeaxial	-20 °C	60 °C	-20 C	60 °C	CSA, TUV, UL
Sanyo Denki America Inc. 109E5712M502	41 dB	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	12 VDC	2 Wire Leads	2000 RPM		Ball	51 mm	760 g	1.7 lbs	10.2 VDC	13.8 VDC		4.14 mł/min	148 CFM	67.6 Pa	0.271 in H2O	480 mA	40000 Hrs	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	CSA, TUV, UL
