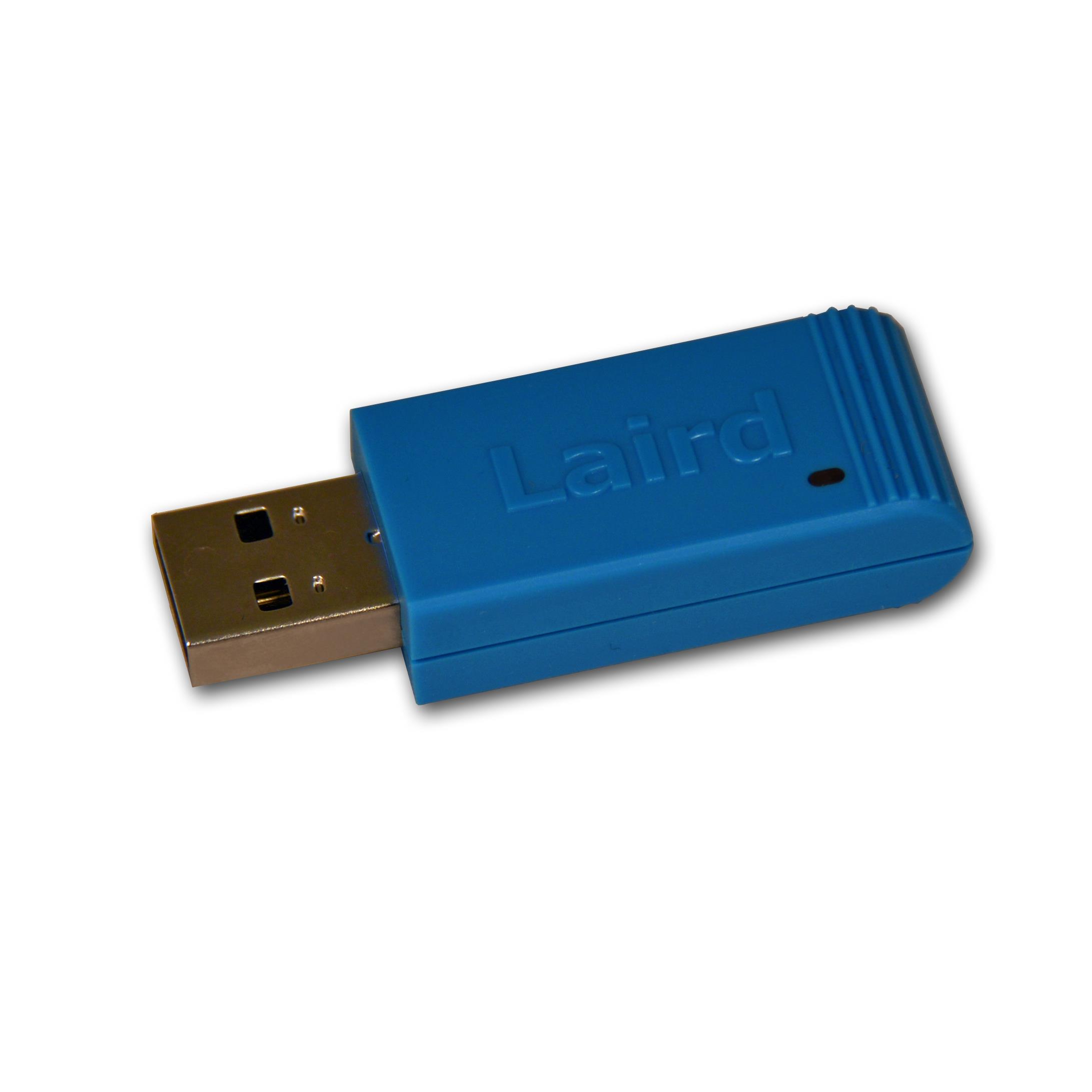

BT900-US

Active

Ezurio LLC

MOD BLUETOOTH DONGLE USB V4.0

Search across all available documentation for this part.

Active

Ezurio LLC

MOD BLUETOOTH DONGLE USB V4.0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 38.96

General part information

RF 2.4GHz ~ 2.48GHz Bluetooth v4.0, Low Energy (BLE) USB 3Mbps

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BT900-US	BT900 Series

Antenna Type	-	Integrated, Chip, Antenna Not Included, U.FL
Applications	General Purpose	General Purpose
Current - Receiving	-	85 mA
Current - Transmitting	-	85 mA
Data Rate	-	3 - 4 Mbps
Frequency	-	2.4 GHz
Frequency [Max]	2.48 GHz	2.48 GHz
Frequency [Min]	2.4 GHz	2.4 - 2.402 GHz
Interface	USB	USB
Memory Size	-	6 kB
Modulation or Protocol	Bluetooth v4.0, Low Energy (BLE)	Bluetooth v4.0, Low Energy (BLE)
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	44-SMD Module, Module
Power - Output	8 dBm	8 dBm
Protocol	-	Bluetooth v4.0, Bluetooth v4.0 Dual Mode
RF Family/Standard	-	WiFi, Bluetooth
Sensitivity	-90 dBm	-90 dBm
Serial Interfaces	-	UART, I2C, SPI, GPIO, ADC, SIO, PWM
Utilized IC / Part	-	CSR8811
Voltage - Supply	-	1.75 - 1.8 V
Voltage - Supply	-	3.6 V

RF TXRX MOD BT WIFI CHIP SMD

Part	Power - Output	Memory Size	Protocol	Antenna Type	Package / Case	Sensitivity	Serial Interfaces	Data Rate	Voltage - Supply [Min]	Voltage - Supply [Max]	Frequency [Max]	Frequency [Min]	Mounting Type	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Modulation or Protocol	Applications	Frequency	Current - Receiving	Current - Transmitting	Utilized IC / Part
Ezurio LLC BT900-SA-03-T/R	8 dBm	6 kB	Bluetooth v4.0	Integrated, Chip	44-SMD Module	-90 dBm	ADC, GPIO, I2C, PWM, SIO, SPI, UART	4 Mbps	1.75 V	3.6 V	2.48 GHz	2.402 GHz	Surface Mount	Bluetooth, WiFi	85 °C	-40 °C
Ezurio LLC BT900-US	8 dBm					-90 dBm					2.48 GHz	2.4 GHz					USB	Bluetooth v4.0, Low Energy (BLE)	General Purpose
Ezurio LLC BT900-SC	8 dBm		Bluetooth v4.0 Dual Mode	Antenna Not Included, U.FL	Module	-90 dBm	I2C, SPI, UART	3 Mbps	1.8 V	3.6 V			Surface Mount	Bluetooth	85 °C	-40 °C				2.4 GHz	85 mA	85 mA	CSR8811
Ezurio LLC BT900-SA	8 dBm		Bluetooth v4.0 Dual Mode	Integrated, Chip	Module	-90 dBm	I2C, SPI, UART	3 Mbps	1.8 V	3.6 V			Surface Mount	Bluetooth	85 °C	-40 °C				2.4 GHz	85 mA	85 mA	CSR8811
