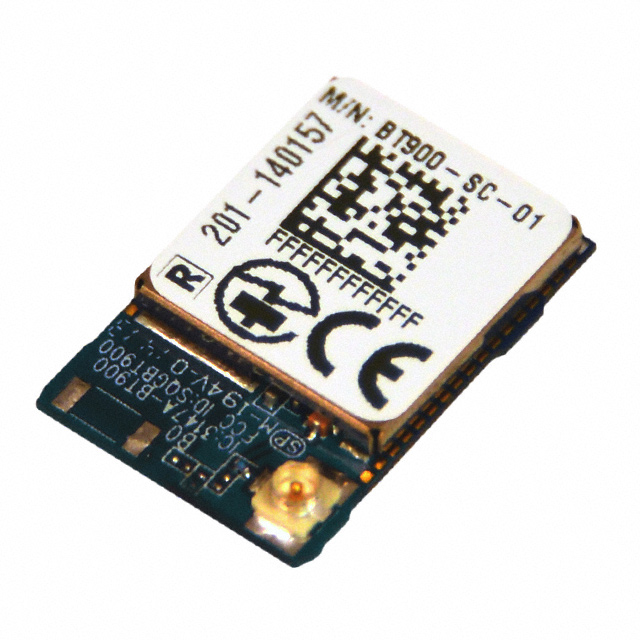

BT900-SC

Active

Ezurio LLC

RF TXRX MOD BLUETOOTHU.FL SMD

Search across all available documentation for this part.

Active

Ezurio LLC

RF TXRX MOD BLUETOOTHU.FL SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth Bluetooth v4.0 Dual Mode Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	BT900-SC	BT900 Series

Antenna Type	Antenna Not Included, U.FL	Integrated, Chip, Antenna Not Included, U.FL
Applications	-	General Purpose
Current - Receiving	85 mA	85 mA
Current - Transmitting	85 mA	85 mA
Data Rate	3 Mbps	3 - 4 Mbps
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.48 GHz
Frequency	-	2.4 - 2.402 GHz
Interface	-	USB
Memory Size	-	6 kB
Modulation or Protocol	-	Bluetooth v4.0, Low Energy (BLE)
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	44-SMD Module, Module
Power - Output	8 dBm	8 dBm
Protocol	Bluetooth v4.0 Dual Mode	Bluetooth v4.0, Bluetooth v4.0 Dual Mode
RF Family/Standard	Bluetooth	WiFi, Bluetooth
Sensitivity	-90 dBm	-90 dBm
Serial Interfaces	UART, I2C, SPI	UART, I2C, SPI, GPIO, ADC, SIO, PWM
Utilized IC / Part	CSR8811	CSR8811
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.8 V	1.75 - 1.8 V

RF TXRX MOD BT WIFI CHIP SMD

Part	Power - Output	Memory Size	Protocol	Antenna Type	Package / Case	Sensitivity	Serial Interfaces	Data Rate	Voltage - Supply [Min]	Voltage - Supply [Max]	Frequency [Max]	Frequency [Min]	Mounting Type	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Modulation or Protocol	Applications	Frequency	Current - Receiving	Current - Transmitting	Utilized IC / Part
Ezurio LLC BT900-SA-03-T/R	8 dBm	6 kB	Bluetooth v4.0	Integrated, Chip	44-SMD Module	-90 dBm	ADC, GPIO, I2C, PWM, SIO, SPI, UART	4 Mbps	1.75 V	3.6 V	2.48 GHz	2.402 GHz	Surface Mount	Bluetooth, WiFi	85 °C	-40 °C
Ezurio LLC BT900-US	8 dBm					-90 dBm					2.48 GHz	2.4 GHz					USB	Bluetooth v4.0, Low Energy (BLE)	General Purpose
Ezurio LLC BT900-SC	8 dBm		Bluetooth v4.0 Dual Mode	Antenna Not Included, U.FL	Module	-90 dBm	I2C, SPI, UART	3 Mbps	1.8 V	3.6 V			Surface Mount	Bluetooth	85 °C	-40 °C				2.4 GHz	85 mA	85 mA	CSR8811
Ezurio LLC BT900-SA	8 dBm		Bluetooth v4.0 Dual Mode	Integrated, Chip	Module	-90 dBm	I2C, SPI, UART	3 Mbps	1.8 V	3.6 V			Surface Mount	Bluetooth	85 °C	-40 °C				2.4 GHz	85 mA	85 mA	CSR8811
