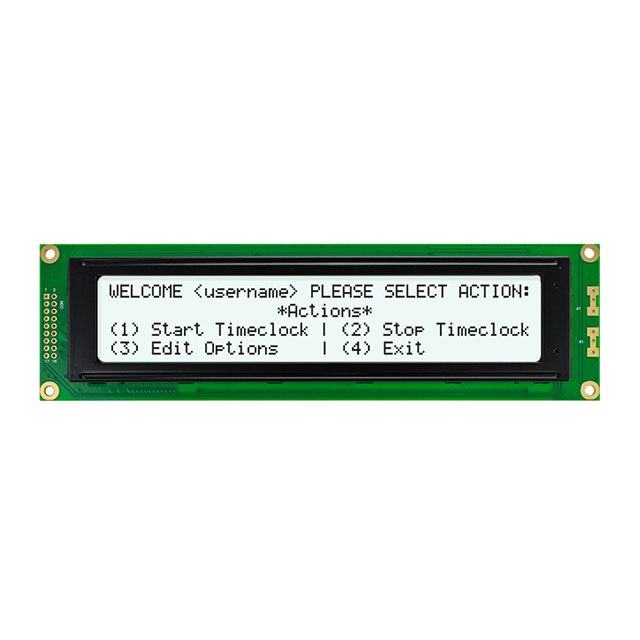

Specification	NHD-0440WH-ATFH-JT#

Background Color	White
Backlight Color	White
Backlight Type	LED
Character Height	4.89 mm
Character Height (Dots)	8 Dots
Character Width	2.78 mm
Character Width (Dots)	5 Dots
Controller Type	ST7066-0A
Display Columns	40
Display Mode	Transflective
Display Rows	4
Display Type	FSTN - Film Super-Twisted Nematic
Dot Size Height	0.55 mm
Dot Size Width	0.5 mm
Interface	Parallel
Number of Characters	160 characters
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Outline Height	13.6 mm
Outline Length	190 mm
Outline Width	54 mm
Text Color	Black
Viewing Area Length	147 mm
Viewing Area Width	29.5 mm
Voltage - Supply (Maximum)	5.25 V
Voltage - Supply (Minimum)	4.75 V

NHD-0440 Series

Part	Interface	Outline Length	Outline Width	Outline Height	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Display Type	Background Color	Display Rows	Display Columns	Display Mode	Character Width (Dots)	Character Height (Dots)	Operating Temperature (Max)	Operating Temperature (Min)	Character Height	Character Width	Dot Size Height	Dot Size Width	Backlight Type	Backlight Color	Viewing Area Width	Viewing Area Length	Number of Characters	Text Color	Controller Type	Backlight
Newhaven Display Intl NHD-0440AZ-FL-GBW	Parallel	190 mm	54 mm	9.5 mm	5.5 V	2.7 V	STN - Super-Twisted Nematic	Green	4	40	Transflective	5 Dots	8 Dots	70 °C	-20 °C	4.89 mm	2.78 mm	0.55 mm	0.5 mm	LED	Green Yellow	29.5 mm	147 mm	160 characters	Gray
Newhaven Display Intl NHD-0440AZ-RN-FBW	Parallel	190 mm	54 mm	9.5 mm	5.5 V	4.7 V	FSTN - Film Super-Twisted Nematic	Gray	4	40	Reflective	5 Dots	8 Dots	70 °C	-20 °C	4.89 mm	2.78 mm	0.55 mm	0.5 mm			29.5 mm	147 mm	160 characters	Black	ST7066-0A	Without Backlight
Newhaven Display Intl NHD-0440WH-ATFH-JT#	Parallel	190 mm	54 mm	13.6 mm	5.25 V	4.75 V	FSTN - Film Super-Twisted Nematic	White	4	40	Transflective	5 Dots	8 Dots	70 °C	-20 °C	4.89 mm	2.78 mm	0.55 mm	0.5 mm	LED	White	29.5 mm	147 mm	160 characters	Black	ST7066-0A
Newhaven Display Intl NHD-0440AZ-FL-YBW	Parallel	190 mm	54 mm	13 mm	5.5 V	4.7 V	STN - Super-Twisted Nematic	Green	4	40	Transflective	5 Dots	8 Dots	70 °C	-20 °C	4.89 mm	2.78 mm	0.55 mm	0.5 mm	LED	Green Yellow	29.5 mm	147 mm	160 characters	Blue	ST7066-0A
Newhaven Display Intl NHD-0440WH-ATMI-JT#	Parallel	190 mm	54 mm	13.6 mm	5.25 V	4.75 V	STN - Super-Twisted Nematic	Blue	4	40	Transmissive	5 Dots	8 Dots	70 °C	-20 °C	4.89 mm	2.78 mm	0.55 mm	0.5 mm	LED	White	29.5 mm	147 mm	160 characters	White	ST7066-0A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

NHD-0440WH-ATFH-JT# | Datasheet

LCD Safe Handling Procedure

LCD Solvent Precautions
