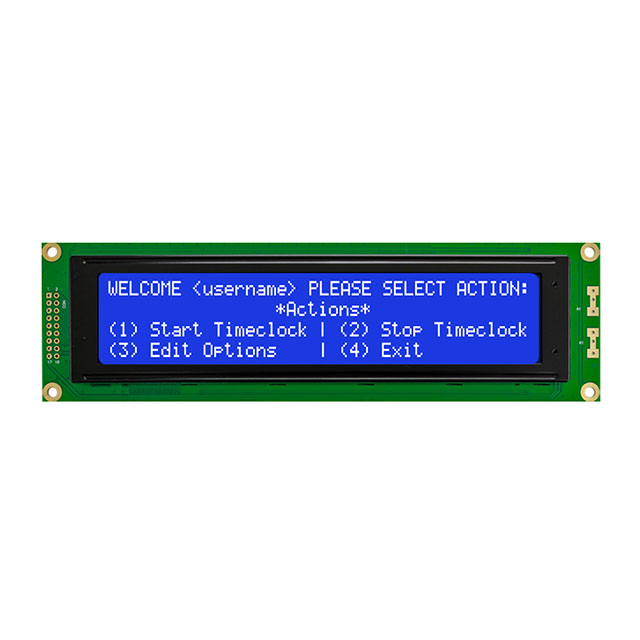

NHD-0440WH-ATMI-JT#

Active

Newhaven Display Intl

LCD MOD 160DIG 40X4 TRANSMIS WHT

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD MOD 160DIG 40X4 TRANSMIS WHT

Technical Specifications

Parameters and characteristics for this part

Part	Character Format [y]	Character Format [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Dot Size [y]	Dot Size [x]	Display Format [y]	Display Format [x]	Background Color	Text Color	Display Mode	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Viewing Area [y]	Viewing Area [x]	Character Size [y]	Character Size [z]	Display Type	Interface	Number of Characters	Operating Temperature [Min]	Operating Temperature [Max]	Backlight	Controller Type
Newhaven Display Intl NHD-0440AZ-FL-GBW	8 Dots	5 Dots	2.7 V	5.5 V	0.55 mm	0.5 mm	4	40	Green	Gray	Transflective	190 mm	9.5 mm	54 mm	29.5 mm	147 mm	2.78 mm	4.89 mm	STN - Super-Twisted Nematic	Parallel	160	-20 C	70 °C
Newhaven Display Intl NHD-0440WH-ATFH-JT#	8 Dots	5 Dots	4.75 V	5.25 V	0.55 mm	0.5 mm	4	40	White	Black	Transflective	190 mm	13.6 mm	54 mm	29.5 mm	147 mm	2.78 mm	4.89 mm	FSTN - Film Super-Twisted Nematic	Parallel	160	-20 C	70 °C	LED - White	ST7066-0A
Newhaven Display Intl NHD-0440AZ-FL-YBW	8 Dots	5 Dots	4.7 V	5.5 V	0.55 mm	0.5 mm	4	40	Green	Blue	Transflective	190 mm	13 mm	54 mm	29.5 mm	147 mm	2.78 mm	4.89 mm	STN - Super-Twisted Nematic	Parallel	160	-20 C	70 °C		ST7066-0A
Newhaven Display Intl NHD-0440WH-ATMI-JT#	8 Dots	5 Dots	4.75 V	5.25 V	0.55 mm	0.5 mm	4	40	Blue	White	Transmissive	190 mm	13.6 mm	54 mm	29.5 mm	147 mm	2.78 mm	4.89 mm	STN - Super-Twisted Nematic	Parallel	160	-20 C	70 °C	LED - White	ST7066-0A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 190.00mm x 54.00mm x 13.60mm
