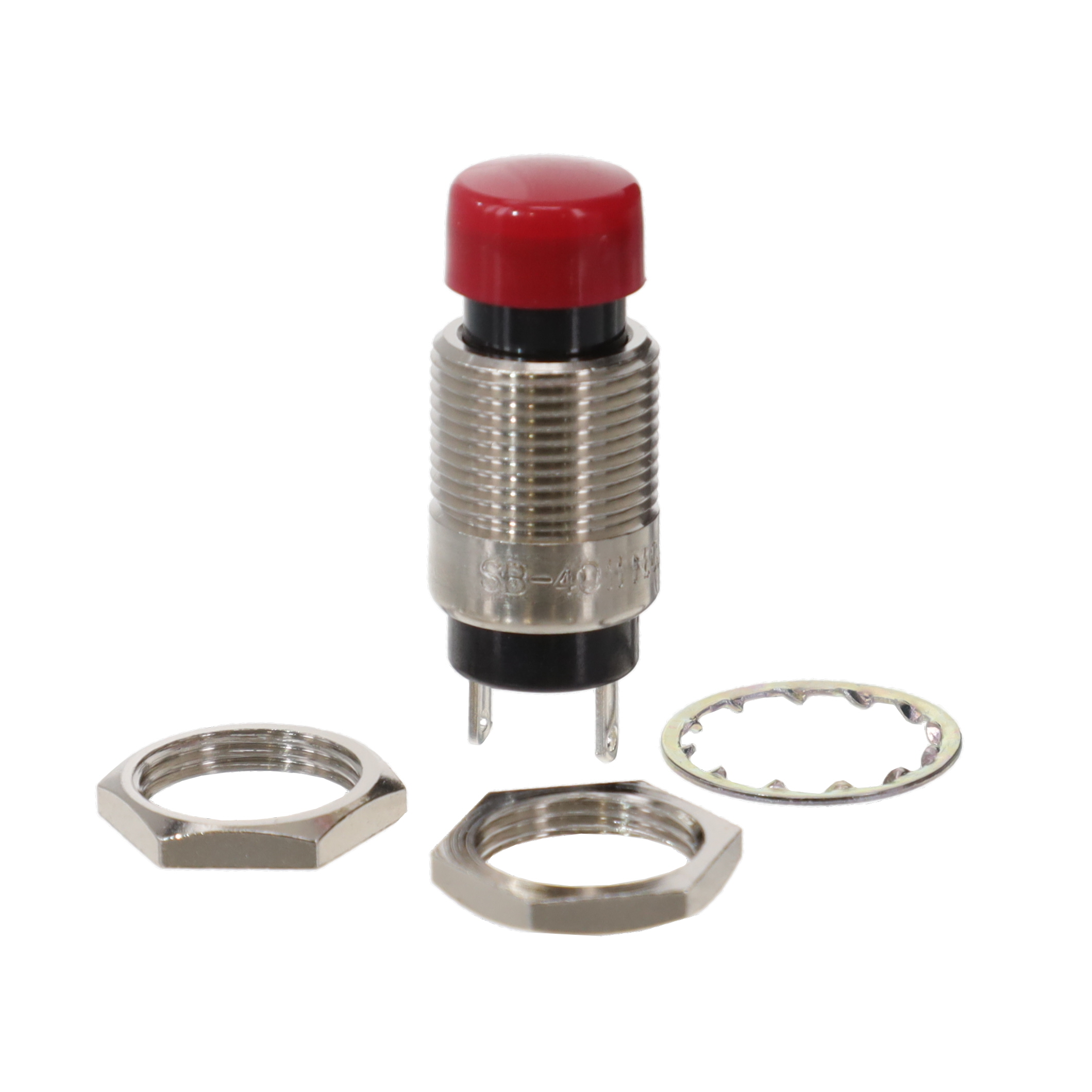

SB4011NCH-2C

Active

NKK Switches

SWITCH PUSH SPST-NC 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SB4011NCH-2C

Active

NKK Switches

SWITCH PUSH SPST-NC 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SB4011NCH-2C

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NC
Color - Actuator/Cap	Red
Current Rating (Amps)	2 A, 3 A
Electrical Life	10000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Rear
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

SB4011 Series

Part	Voltage Rating - DC	Type	Switch Function	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Termination Style	Mounting Type	Actuator Type	Electrical Life	Features	Color - Actuator/Cap	Current Rating (Amps)	Actuator Marking	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Circuit	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches SB4011NCH-2C	30 V	Standard	On-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Button Round	10000 Cycles	Epoxy Sealed Terminals	Red	2 A 3 A	No Marking	125 V	12.5 mm	SPST-NC	30000 Steps
NKK Switches SB4011NOMG-2F	28 V	Standard	Off-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Button Round	10000 Cycles	Epoxy Sealed Terminals	Green	0.4 VA	No Marking	28 V	12.5 mm	SPST-NO	30000 Steps
NKK Switches SB4011NOMG-2B	28 V	Standard	Off-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Button Round	10000 Cycles	Epoxy Sealed Terminals	White	0.4 VA	No Marking	28 V	12.5 mm	SPST-NO	30000 Steps
NKK Switches SB4011NOH-2E	30 V	Standard	Off-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Button Round	10000 Cycles	Epoxy Sealed Terminals	Yellow	2 A 3 A	No Marking	125 V	12.5 mm	SPST-NO	30000 Steps
NKK Switches SB4011NOMG-2C	28 V	Standard	Off-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Button Round	10000 Cycles	Epoxy Sealed Terminals	Red	0.4 VA	No Marking	28 V	12.5 mm	SPST-NO	30000 Steps
NKK Switches SB4011NCMC	30 V	Standard	On-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Plunger for Cap	10000 Cycles	Epoxy Sealed Terminals	Red	2 A 3 A	No Marking	125 V	12.5 mm	SPST-NC	30000 Steps
NKK Switches SB4011NOHC-2A	30 V	Standard	Off-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Button Round	10000 Cycles	Epoxy Sealed Terminals	Black	2 A 3 A	No Marking	125 V	12.5 mm	SPST-NO	30000 Steps
NKK Switches SB4011NCHC	30 V	Standard	On-Mom			Solder Lug	Panel Mount Rear	Plunger for Cap	10000 Cycles	Epoxy Sealed Terminals	Red	2 A 3 A	No Marking	125 V	12.5 mm	SPST-NC	30000 Steps	70 °C	-10 °C
NKK Switches SB4011NOM-24	30 V	Standard	Off-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Plunger for Cap	10000 Cycles			2 A 3 A	No Marking	125 V	12.5 mm	SPST-NO	30000 Steps
NKK Switches SB4011NOHC	30 V	Standard	Off-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Plunger for Cap	10000 Cycles	Epoxy Sealed Terminals	Red	2 A 3 A	No Marking	125 V	12.5 mm	SPST-NO	30000 Steps

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.74
		10	$ 5.12
		100	$ 4.45
		1000	$ 3.68
Newark	Each	1	$ 10.42
		5	$ 9.72
		10	$ 8.94
		25	$ 8.16
		50	$ 7.38
		100	$ 6.52
		250	$ 5.85

Description

General part information

SB4011 Series

Pushbutton Switch SPST-NC Standard Panel Mount, Rear
