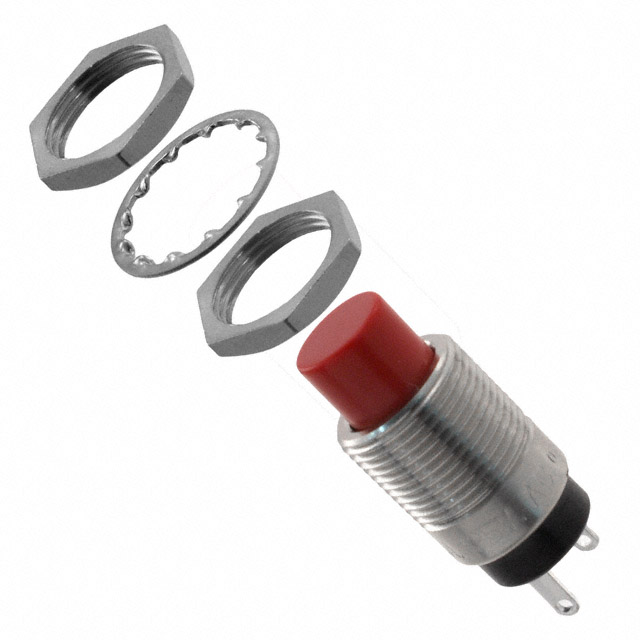

SB4011NCHC

Active

NKK Switches

PUSHBUTTON SWITCH, SB40 SERIES, 12.5 MM, SPST-NC, ON-(OFF), PLUNGER FOR CAP, RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SB4011NCHC

Active

NKK Switches

PUSHBUTTON SWITCH, SB40 SERIES, 12.5 MM, SPST-NC, ON-(OFF), PLUNGER FOR CAP, RED

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SB4011NCHC

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPST-NC
Color - Actuator/Cap	Red
Current Rating (Amps)	2 A, 3 A
Electrical Life	10000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

SB4011 Series

Part	Voltage Rating - DC	Type	Switch Function	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Termination Style	Mounting Type	Actuator Type	Electrical Life	Features	Color - Actuator/Cap	Current Rating (Amps)	Actuator Marking	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Circuit	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches SB4011NCH-2C	30 V	Standard	On-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Button Round	10000 Cycles	Epoxy Sealed Terminals	Red	2 A 3 A	No Marking	125 V	12.5 mm	SPST-NC	30000 Steps
NKK Switches SB4011NOMG-2F	28 V	Standard	Off-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Button Round	10000 Cycles	Epoxy Sealed Terminals	Green	0.4 VA	No Marking	28 V	12.5 mm	SPST-NO	30000 Steps
NKK Switches SB4011NOMG-2B	28 V	Standard	Off-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Button Round	10000 Cycles	Epoxy Sealed Terminals	White	0.4 VA	No Marking	28 V	12.5 mm	SPST-NO	30000 Steps
NKK Switches SB4011NOH-2E	30 V	Standard	Off-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Button Round	10000 Cycles	Epoxy Sealed Terminals	Yellow	2 A 3 A	No Marking	125 V	12.5 mm	SPST-NO	30000 Steps
NKK Switches SB4011NOMG-2C	28 V	Standard	Off-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Button Round	10000 Cycles	Epoxy Sealed Terminals	Red	0.4 VA	No Marking	28 V	12.5 mm	SPST-NO	30000 Steps
NKK Switches SB4011NCMC	30 V	Standard	On-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Plunger for Cap	10000 Cycles	Epoxy Sealed Terminals	Red	2 A 3 A	No Marking	125 V	12.5 mm	SPST-NC	30000 Steps
NKK Switches SB4011NOHC-2A	30 V	Standard	Off-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Button Round	10000 Cycles	Epoxy Sealed Terminals	Black	2 A 3 A	No Marking	125 V	12.5 mm	SPST-NO	30000 Steps
NKK Switches SB4011NCHC	30 V	Standard	On-Mom			Solder Lug	Panel Mount Rear	Plunger for Cap	10000 Cycles	Epoxy Sealed Terminals	Red	2 A 3 A	No Marking	125 V	12.5 mm	SPST-NC	30000 Steps	70 °C	-10 °C
NKK Switches SB4011NOM-24	30 V	Standard	Off-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Plunger for Cap	10000 Cycles			2 A 3 A	No Marking	125 V	12.5 mm	SPST-NO	30000 Steps
NKK Switches SB4011NOHC	30 V	Standard	Off-Mom	-10 °C	158 °F	Solder Lug	Panel Mount Rear	Plunger for Cap	10000 Cycles	Epoxy Sealed Terminals	Red	2 A 3 A	No Marking	125 V	12.5 mm	SPST-NO	30000 Steps

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.41
		10	$ 4.83
		25	$ 4.57
		50	$ 4.41
		100	$ 4.19
		250	$ 4.01
		500	$ 3.66
		1000	$ 3.47
Newark	Each	1	$ 5.75
		10	$ 5.50
		25	$ 5.36
		50	$ 5.22
		100	$ 5.08
		250	$ 4.94

Description

General part information

SB4011 Series

Pushbutton Switch SPST-NC Standard Panel Mount, Rear

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
